High Performance Polystyrene Eps Block Molding Machine For Easy Operation

China High Performance Polystyrene Eps Block Molding Machine For Easy Operation supplier

Large Image :  High Performance Polystyrene Eps Block Molding Machine For Easy Operation

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTZ100AB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-200000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 40 work days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 20 SETS PER MONTH
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Mold Dimension: 1000*800
Max Product Dimension: 800*600*330 Stroke: 210-1360mm
Steam Entry: DN80mm Steam Consumption: (12-15T) Steam Of 1T Material Kg/cycle
Water Entry: DN80mm Cooling Water Consumption: 40-120kg/cycle
Comm-pressed Air Entry: DN40mm

High Performance Polystyrene Eps Block Molding Machine For Easy Operation

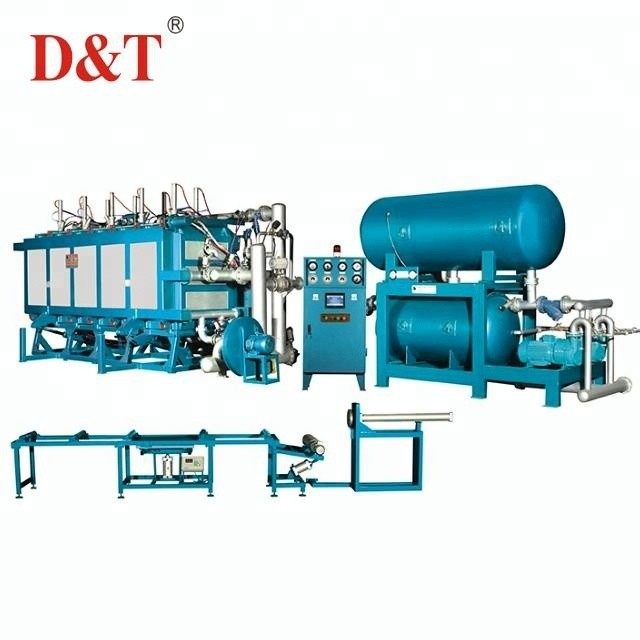

[EPS Block Molding Machine]



Main Features
1). Machine structure:
a.The machine mold are welded by strong rectangle tube and steel plate which make high strength to keep more safety of the machine;
b.All block mold frames are treated by heat-treatment to release the welding stress, so that the frames would not deformed;
c. After heating treatment, all mold frames are processed by sand blasting treatment to keep the rust away, then under coat and finishing
coat are greatly improved anticorrosion performce and long life;
d. Adopts three Germany gauges and safety valve for multi-safety protection.
The machine will be tested by water pressure and steam(many steps),ensure the machine more stable and safety.

2). Steam system: three ball valves, comparing one big steam valve control system, saves 20% steam,with ISO-standard butterfly valves,
greatly improve stability and long life;

3). Control system:
a. Adopts PLC(Mitsubishi) and touch screen(schneider) for an easy operation;
b.Equipped material level sensor to control the filling. The block cooling is controlled by foam pressure sensor, the whole procedure for filling,
heating, cooling will be controlled automatically by PLC.




TECHNICAL DATA

Item





SPB200/DZ SPB200/DF SPB300/DZ SPB300/DF

Mould

Cavity Size(mm)



2040x1240

x1030

2040x1240x1030 3060x1240x1030 3060x1240x1030
Block Size (mm)

2000×1200

×1000

2000×1200×1000 3000×1200×1000 3000×1200×1000
Steam

Diameter

Volume

Useable

Volume



DN80

30-50kg/cycle

0.8MPa

DN65

20-30kg/cycle

0.8MPa

DN80

50-70kg/cycle

0.8MPa

DN65

30-40kg/cycle

0.8MPa

Compressed Air

Diameter

Volume

Useable

Volume

DN40

1.5-2m3/cycle

0.6MPa

DN40

1-1.5m3/cycle

0.6MPa

DN40

1.8-2.2m3/cycle

0.6MPa

DN40

1.5-1.8m3/cycle

0.6MPa

Cooling Water



Diameter

Volume

Useable

Volume

DN40

0.2-0.4m3/cycle

0.4-0.6MPa



DN40

0.4-0.6m3/cycle

0.4-0.6MPa


Drainage

Vacuum drain

Steam vent

Condensate

Blower outlet



125mm

100mm

100mm

125mm



100mm



125mm

125mm

100mm

100mm

125mm



125mm



125mm

Throughput 15kg/m3 5min/cycle 5-12min/cycle 6min/cycle

6-15min

/cycle

Power   20.5-24.5Kw 9.5Kw 20.5-24.5Kw 9.5Kw

Overall

Dimension(mm)

(L×W×H)

5700×4000

×2850

4000×2150×2100 7200×4500×4300

5030×227

0×2120

Weight   6000kg 4200kg 7200kg 6000kg

Room

Height Required

  6000mm 6000mm 6000mm 6000mm
