|Cutting Wire Diameter:||0.8~2.0mm||Cutting Wire Length:||~8500mm|
|Max. Block Size:||2500mm*1225mm*1000mm||Material Can Be Cut:||Rock Wool Miner Wool Flexible|
|Number Of Cutting Wire:||Dual Wire (Horizonal +Vertical)||Flying Wheel Diameter:||300mm|
|Mainly Motor:||ABB, 3kW*2pcs||Running Speed Of The Wheel:||2860rpm|
D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine
|Max. Block Size||Length||2500mm|
|Material can be Cut||

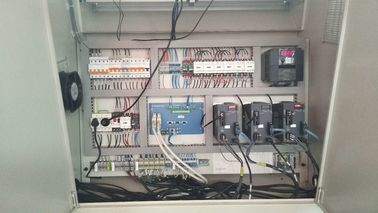

|Control Device||Industrial Computer|
|Computer Operation System||Windows7|
|Acceptable File Formats||DXF/DWG|
|Number of Cutting Wire||Dual Wire (Horizonal +Vertical)|
|Cutting Wire Length||~8500mm (Should be confirmed by maker by machine)|
|Cutting Wire Diameter||0.8~2.0mm|
|Flying Wheel Diameter||300mm|

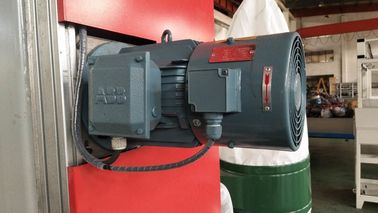

|Mainly Motor||ABB, 3kW*2pcs|
|Running Speed of the wheel||2860rpm|
|Inverter||Panasonic, for 3kW motor|
|Total Power||11kW, 400/240V, 50Hz|
|Overall Dimension||5500*5500*2600 mm|

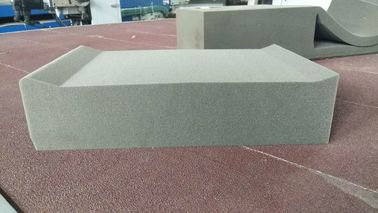

Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.

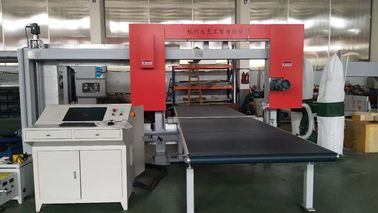

Fast Wire Contour Cutter
Cutting line: Fast cutting wire
The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain
the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.
