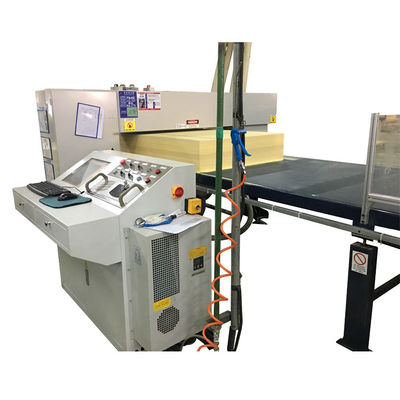

Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire

China Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire supplier

Large Image :  Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTC-FL1305

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD27000-30000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SETS PER MONTH
Contact Now
Detailed Product Description
Max. Product Size: L3000*W1300*H500mm Cutting Wire: 0.8-2mm
Control System: Industrial Computer+Window XP Software: D&T Profiler
Cutting Speed: 0~6m/min Precision: ±0.5mm
Overall Weight: 2200kg Overall Dimension: 6200*2400*2380mm

Specification:
1.It is advanced and fully automatic computerized foam contour cutting machine.
2.Can cut foam into any 2D complex shape.
3.Easy control
This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.
1.This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material (foam blocks) cost.
2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3.Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; whichenhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: D&T Profile software. Application:
CNC Fast Wire Contour Cutter is specifically developed for special heat insulation materials used in the construction industry, and it can be used in slicing and modeling processing for various types of high density foam.
It is the most ideal equipment in building, indoor decoration, advertising, toys model industry, aerospace industry model, furniture manufacturing and packaging areas. The control system is self-development, worry-free service, To make your most wanted tailor-made production equipment, is the goal we are after.



Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire

Type DTC-FL1305
Max. Product Size L3000*W1300*H500mm
Cutting Wire 0.8-2mm
Control System Industrial Computer+Window XP
Software D&T Profiler
Cutting Speed 0~6m/min
Precision ±0.5mm
Power ~6.5kw
Overall Weight 2200kg
Overall Dimension 6200*2400*2380mm





Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire

Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire

Vertical Fast Wire Cutting Machine Rigid Foam Cutter For 0.8-2mm Cutting Wire
