Blue Color Long Life EPS Shape Injection Moulding Machine With High Performance

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Blue Color Long Life EPS Shape Injection Moulding Machine With High Performance

China Blue Color Long Life EPS Shape Injection Moulding Machine With High Performance supplier

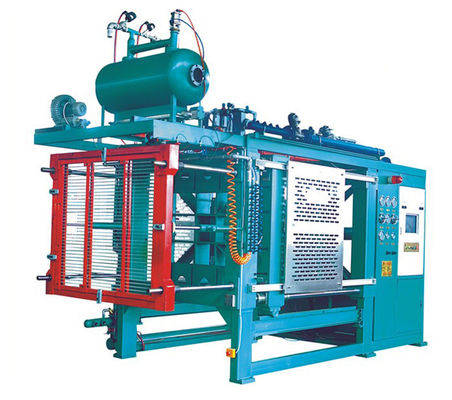

Large Image :  Blue Color Long Life EPS Shape Injection Moulding Machine With High Performance

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: FAV1400

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 10000-70000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Mould Dimension: 1400*1250 Max Product Dimension: 1250*1100*420
Drainge: 4"(DN100) Capacity 15kg/m3: 70~140s
Connected Load/power: 12.5kw Overall Dimensions(L*W*H): 4700*1920*3250
Weight: 5500kg


[Main Features Of EPS Shape Molding Machine]


This machine is the basic type of shape molding and the features are as follows:

Machine structure:

All frame are welded by strong rectangle tube, which is processed by heating treatment to prevent the deformation of the mould penal;

After heating treatment, all frame are processed by sand blasting treatment to get rust prevention, so anti-corrosive primer and finishing coat are greatly improved anticorrosion performance and extended load life.


Electronic control:

Adopts PLC(Mitsubishi) and touch screen (Schneider), from close-mold, filling,heating,cooling,de-mould, the whole working procedure automatically;

All electronic components adopts famous brand(Schneider, Germany gauge), greatly increased stable;

Adopts PLC controller, to set the digital coder, easy adjustment, and more accurate.


Specifications Of Product

Item Unit FAV1200 FAV1400 FAV1750 FAV2000
Mould Dimension mm 1200*1050 1400*1250 1750*1450 2000*1650
Max Product Dimension mm 1050*900*420 1250*1100*420 1600*1300*420 1850*1500*420
Stzam Entry Inch 3"(DN80) 4"(DN100) 4"(DN100) 4"(DN100)
Consumption Kg/cycle 5~7 6~9 8~12 9~15
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7



Entry Inch 1.5"(DN40) 2"(DN50) 2"(DN50) 2.5"(DN65)
Consumption m3/cycle 1.5 1.8 2 2.5
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7
Cooling Water Entry Inch 2.5"(DN65) 3"(DN80) 3"(DN80) 3"(DN80)
Consumption m3/cycle 0.4 0.6 0.8 1
Pressure Mpa 0.3~0.5 0.3~0.5 0.3~0.5 0.3~0.5
Drainge   Inch 5"(DN125) 6"(DN150) 6"(DN150) 6"(DN150)
Capacity 15kg/m3 S 60~120 70~140 80~150 100~200
Connected load/power kw 9 12.5 16.5 16.5
Overall dimensions(L*W*H) mm 4750*1750*3130 4700*1920*3250 4700*2030*3450 4700*2240*3680
Weight kg 5000 5500 6000 7000
Product Uses




1.Q:Are you manufacturer ?

A:Yes,We are manufacturer

2.Q: Which software do you use?

A: Dear sir,we use the CAD software

3.Q: Which way do you repair your machine

A:Our engineers are available to repair overseas

4.Q:Where can I find your cutting video?

A :Dear sir,you could find our videos on YOUTUBE

5.Q:What is your website?

A :Dear sir,our website is www.dtfirm.com


Welcome new and old customers come and visit us!

Please feel free to contact us for more information!
