CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine

China CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine supplier
CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine supplier CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine supplier CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine supplier

Large Image :  CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-F2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000 - 50000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Cutting Wire Diameter: 0.8~2.0mm Cutting Wire Length: ~8500mm
Max. Block Size: 2500mm*1225mm*1000mm Material Can Be Cut: Rock Wool Miner Wool Flexible
Number Of Cutting Wire: Dual Wire (Horizonal +Vertical) Flying Wheel Diameter: 300mm
Mainly Motor: ABB, 3kW*2pcs Cutting Speed: 0~6m/min

D&T CNC Horizontal and Vertical PVC Pipe Making Machine Auto Pipe Cutting Machine



suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.

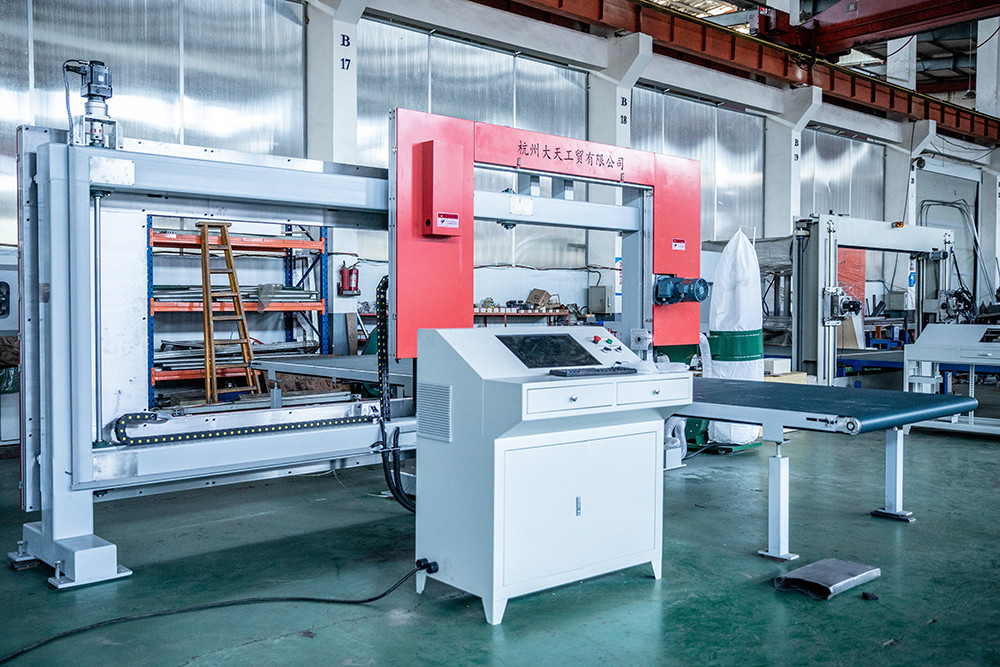

Fast Wire Contour Cutter
Cutting line: Fast cutting wire
The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain
the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.

CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine
CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine
CNC Horizontal And Vertical PVC Pipe Making Machine , Auto Pipe Cutting Machine





Technical Specifications

Model DTC-F2012
Max. Block Size Length 2500mm
Width 1225mm
Height 1000mm
Material can be Cut

Rock Wool

Miner Wool

Flexible Polyurethane

Rigid Polyurethane

Foamglass

Polypropylene

Honeycomb Paperboard

Carton

……

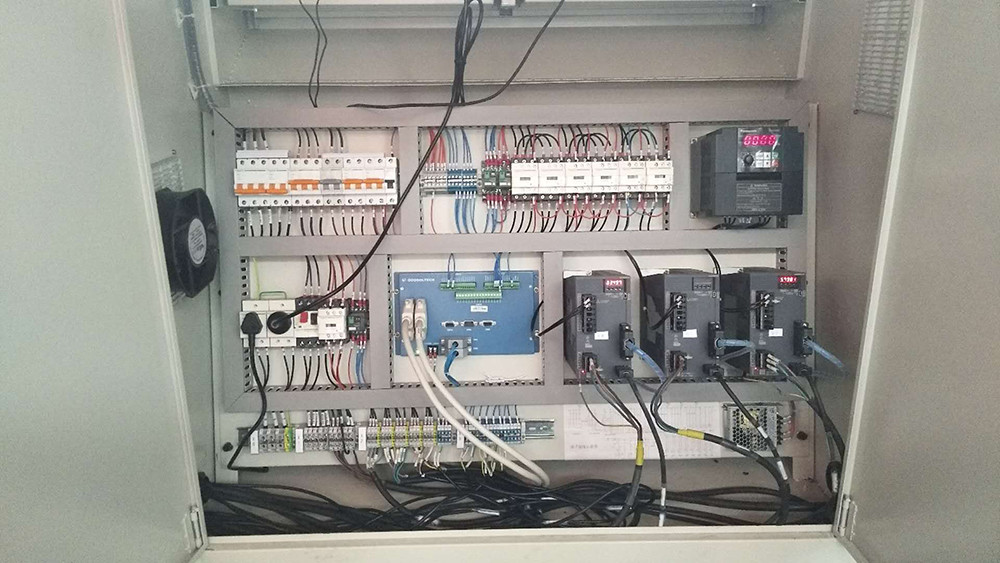

Control Device Industrial Computer
Computer Operation System Windows7
Software D&T Profiler
Acceptable File Formats DXF/DWG
Number of Cutting Wire Dual Wire (Horizonal +Vertical)
Cutting Wire Length ~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter 0.8~2.0mm
Flying Wheel Diameter 300mm
Mainly Motor ABB, 3kW*2pcs
Running Speed of the wheel 2860rpm
Inverter Panasonic, for 3kW motor
Cutting Speed 0~6m/min
Precision ±0.5mm
Total Power 11kW, 400/240V, 50Hz
Gross Weight 2800kg
Overall Dimension 5500*5500*2600 mm
