Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-S1212 |
Minimum Order Quantity: | 1 set |
Price: | USD20000-42000/set |
Packaging Details: | packaged according to the requirements of customers |
Delivery Time: | 30 working days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 sets per month |
Color: | Customizable | Max.Foam Block Size: | 2500×1200×1000mm |
---|---|---|---|
Computer System: | Industrial Computer Win7 | Cutting Line: | 3 X 0.6mm |
Cutting Speed: | <6m/min | Accuracy: | ±0.5mm |
Power: | 4kw 380V 50HZ | Weight: | 1200kg |
Cutting Blade Length: | 2300mm | Notes: | All The Appearance And Performance Can Be Customed |
High Light: | foam contour cutting machine,latex cutting machine,Pu Sponge Oscillating Blade Cutter |

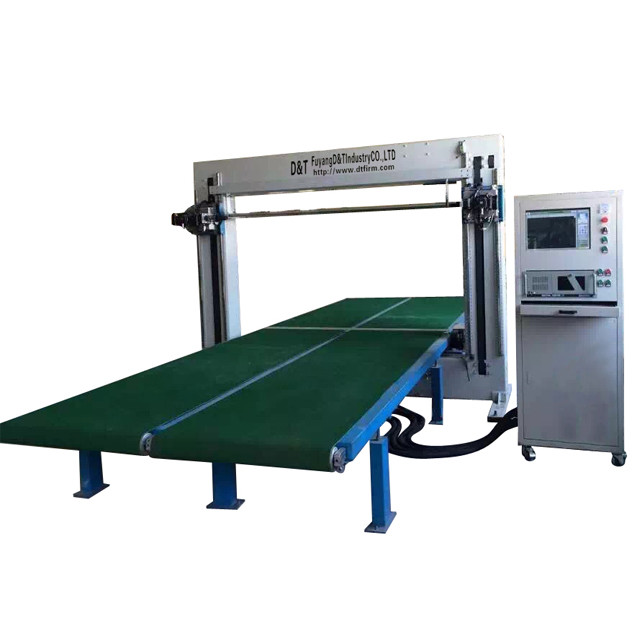

Industry Flexible Foam Oscillating Blade Sponge Cutter L2500 × W1200 × H1000
The machine is under PC/ Industry computer control,easy to operation. The Worktableplat working table ande moving table which could be selected.
Product Description:
1)The machine is a kind of complex shape cutter which is suitable for flexible foam.
2)The blade cut with high speed vibrating, so that it will work faster and the product
will be smoother.
3)Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
4)All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.
50Application:Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.
Specification:
Model |
DTC-S1212 |
Control System |
Industrial Computer |
Max. Product Size |
2500×1200×1000mm |
Cutting Speed |
0~6m/min |
Cutting Line |
3 X 0.6mm |
Precision |
±0.5mm |
Power |
4kw 380V 50HZ |
Weight |
1200kg |
you may care these about CAD:
Q1: what kind of CAD software the machine uses?
A1: For the CAD software ,our machine uses 2004 or 2006 (you prefer )
Q2: about the CAD software, what's its name?
A2: The name is Auto CAD Software
Q3: where do you sell your machines mostly? which countries?
A3:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
Q4: the operating system which you use is windows, right?
what kind of windows? XP? or Windows 7?
A4:Yes ,it is Windows XP. When operated,Our machine doesn't need to use network. We usually use XP for its stability. Also windows 7 is OK.
Q5:Is your software licensed or it's illegal? ("cracked")
A5: Our own profiler cutting software is develop by ourselves.
Q6:The differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade cutting Machine.
A6:1)Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters use high-speed toothed blade.
2)Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material, the better cutter is Oscillating Blade CNC cutter.
3)Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material needs an extra dust pelletizing system and the soft material also is not good for the fast wire cutter itself.

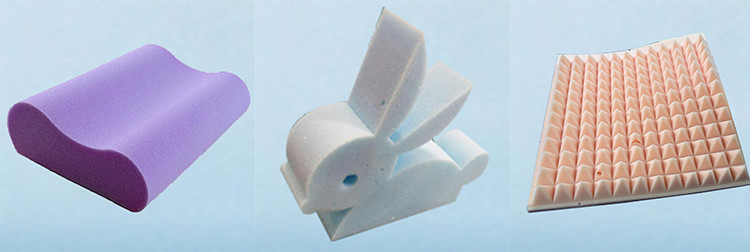

Cutting finish product:
we are 8 years golden supplier on Alibaba.And our engineers have researched our machine more and improved it better and better. Wepromise our machine will be as good as we told. Even we keep 10% for the guarantee until to
install the machine well and the client satisfy with our machine.
