Round PU Circular Foam Cutting Machine Digital , Circle Horizontal Cutter

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

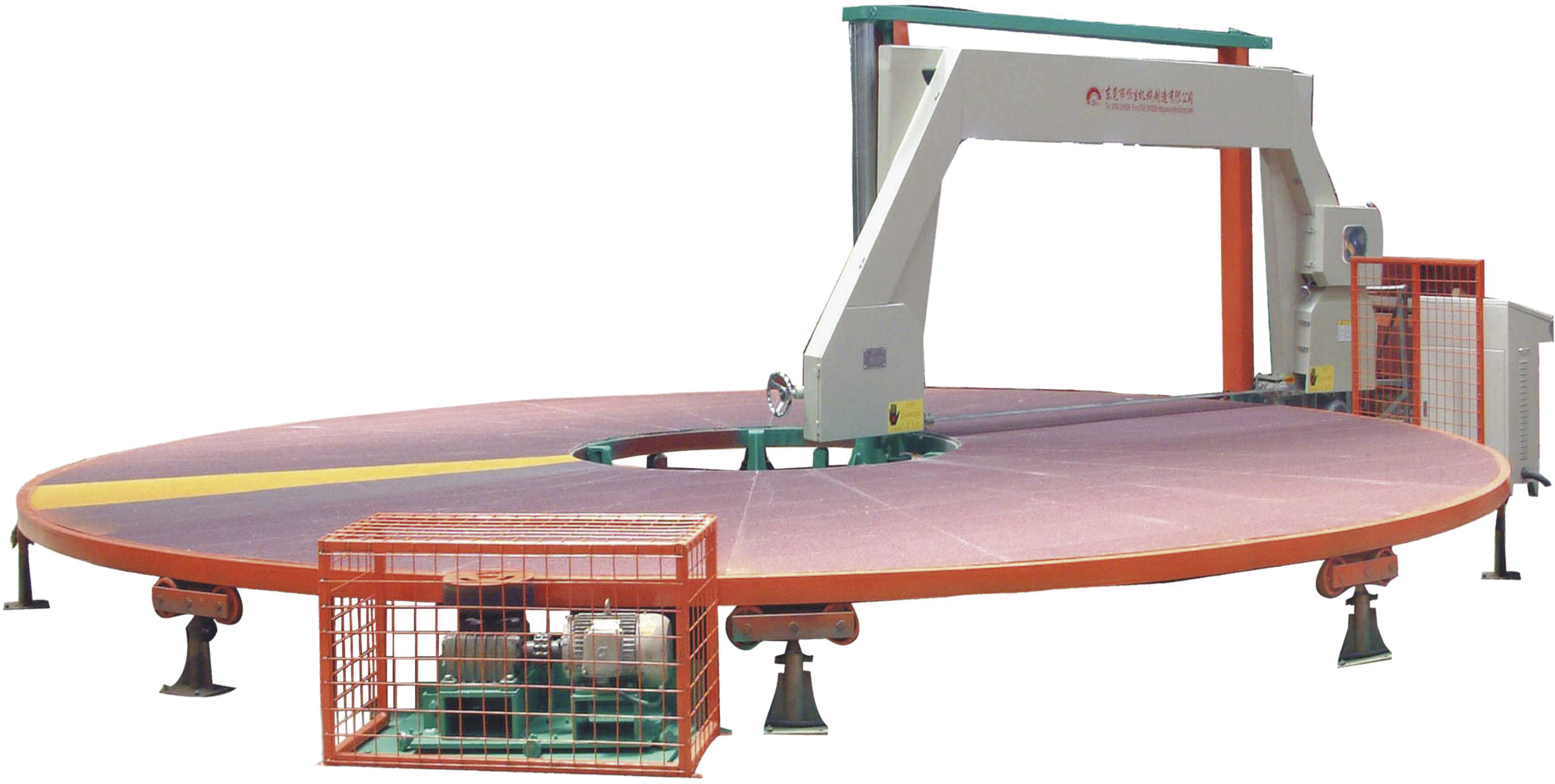

Round PU Circular Foam Cutting Machine Digital , Circle Horizontal Cutter

China Round PU Circular Foam Cutting Machine Digital , Circle Horizontal Cutter supplier

Large Image :  Round PU Circular Foam Cutting Machine Digital , Circle Horizontal Cutter

Product Details:

Place of Origin: CN
Brand Name: D&T
Model Number: DTYQ-750

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD10000-50000/SET
Packaging Details: PVC Film
Delivery Time: 40days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Item: Circle Foam Cutting Machine Size: 2000×1500×1200mm Four Pieces
Cutting Speed: 0-25m/min Cutting Thickness: 5-150mm
Power: 7.94kw Weight: 1500kgs

Round PU Circular Foam Cutting Machine Digital , Circle Horizontal Cutter



Specifications



This machine is mostly used for many quadrate foam continuously flatly slicing.It is fully

automatic controlled operation and the cutting is accurate,the operation is simple and the

production efficiency is very high.It chooses with vacuum equipments,the foam rubber fixed more

firmly,the effect of cutting is better.The humane designing can make it more safer to the worker.

It can choosing two blades for the better effect of cutting soft sponge.



TECHNICAL DATA

Type

DTYQ-750

DTYQ-850

DTYQ-1150

Max. Product Size

2000×1500×1200mm
Four Pieces

2000×1500×1200(mm)
Five Pieces

2000×1500×1200(mm)
Eight Pieces

Cutting Thickness

5~150mm

5~150mm

5~150mm

Cutting Line

8940 mm

10000 mm

10240 mm

Overall Power

7.94kW

8.74kW

10.2 kW

Overall Dimension

7500×6000×2500(mm)

8500×7000×2500(mm)

11500×10000×2500(mm)

Overall Weight

3300kg

3500kg

3800kg




Description:


This cutter adopts the advanced Frequency conversion system. Automatic number controlled.

It is operation is handy and cutting is exact. This machine is suitable to cut horizontal sheet for

several sponge once. It control by digital system, and Frequency conversion system.


This machine adopts the advanced imported controlled techniques and electrical btake device .

Its fully automatic controlled operation and cutting accurately .it can be continuously cutout.

its dependability is lofty and production efficiency is better .

meanwhile we latest research to manufacture the huge carrousel splitting machine successfully.

which the diameter 10.5 is the biggest in the current national.

it can be continuously cut the bigger quadrate foam of w2.15*4.5m.(this machine choose with

vacuum equipments




Terms:

Terms of Payment:    30% advance payment by T/T upon signing the contract
                                 70% covered by T/T before delivery
Delivery:                    45 working days after receipt of advance payment.

Installation and Start-up:

                                  One technician will be assigned to coordinate installation,
                                 commissioning and training,
                                 cost for flight and suitable accommodation plus
                                 USD80/day per person will be charged additionally.
Warranty:                 12 months limited warranty starting
                                 from date of delivery excluding wear parts.
                                Shipping cost for parts to be replaced
                                during warranty period have to be borne by the customer.

                              All size can be made by your requirement.
We trust this offer meets your requirements and look forward to your reply with much interest.
