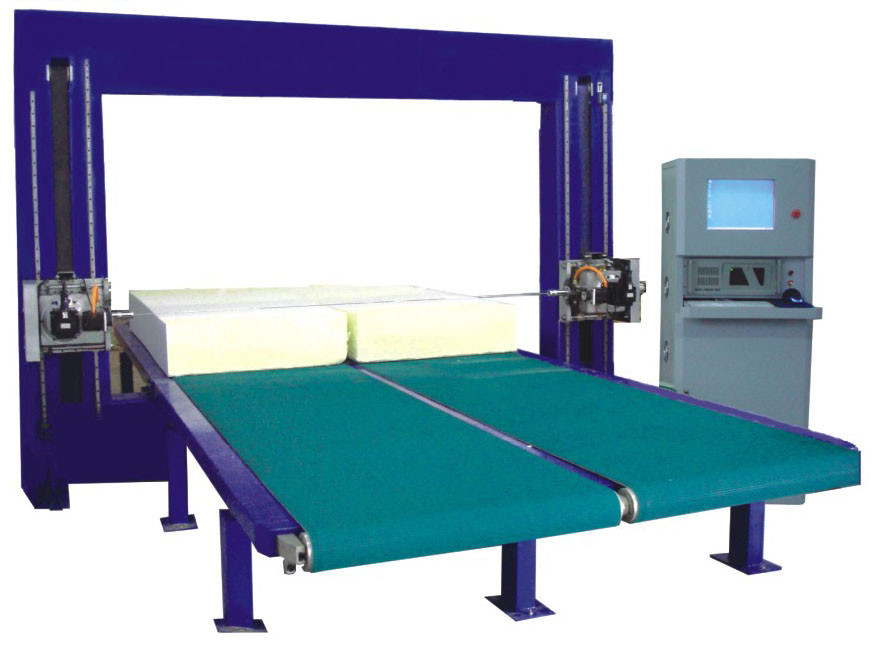

High Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam Machine

China High Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam Machine supplier

Large Image :  High Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam Machine

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2010

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000-60000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Model: DTC-S2010 After-sales Service Provided: Engineers Available To Service Machine Oversea
Color: As Your Request Max Processing Size: W1600*L2000*H1200mm
Line Blade Parameter: 1.2*L7160mm Speed Of Worktable Moving: 1.5m/min
Cutter Frame Lifting Speed: 1.5m/min CNC Type: PC Control Machine
Operation System: Windows 98 Editable Program Axis: X, Y Axis

High Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam Machine

 Description:

The machine uses several high precision gapless transmission agent.
Besides, it is equipped with stable
hammer, which can make the cutter frame torque stable up
and down inertialess and freely. The control
system is used of digital control system.
It uses two stepper motors which improve the efficiency and
precision in additioned HengSheng digital control foaming
cutting machine control system is equipped
with transducer which can up and down adjust the speed
according to the foaming precision to perfect the
quality. The surface is flat, markless and good quality feeling.

- Controled by Windows, could be added some drawing programs, or draw by AutoCad,
easy operation.
- Drive by high accuracy AC servo motor for accurate and smooth pattern cutting and high efficiency.
- Using wire cutter can take infinitude of minimum cutting circle, and it is cheap and easy to change.




Application:

Sponge, flexible PU, mattress, memory foam, Auto air vent foam etc.


Specification:

Model

DTCX-1600

CNC type

PC /control machine

Operation system

Windows

Editable program axis

X, Y axis

Edit language

C++

Input format

G code(*ISO)

Max processing size

W1600*L2000*H1200mm

Line blade parameter

1.2*L7160mm

Cutter frame lifting speed

1.5m/min

Speed of worktable moving

1.5m/min

Precision of processing

±0.5mm

Break off protection

Already set

External machine size

L4800*W2580*H254mm

Weigh

2500kg






Finished products:

High Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam MachineHigh Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam MachineHigh Speed Melamine Foam Cutter 1.5m / min , CNC Contour Cutting Foam Machine
          Auto air vent foam                                 Melamine foam                                        foam
