Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min

China Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min supplier
Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min supplier Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min supplier Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min supplier

Large Image :  Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2012B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD30000-80000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Blade Type: Dual Blades After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2000mm H X 2000 MmW X 3000mm L
Control System: Industrial Computer With D&T Special Profiler Software Horizontal Cutting Blade: 3×0.5mm (Width × Thickness)
Vertical Cutting Balde: 3×0.5mm (Width × Thickness) Cutting Speed: 0~10m/min (Adjustable)
Overall Weight: 2000kg Overall Dimension: 5800×3180×2400 Mm

6Kw High Speed Vibrating  Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min





Specification:



Model

DTC-S2012B

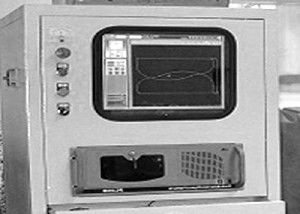

Control System

Industrial Computer

Max. foam block Size

2000mm H x 2000 mmW x 3000mm L

Cutting Speed

0~10m/min (Adjustable)

Horizontal cutting Blade 3×0.5mm (Width × Thickness)
Vertical Cutting Balde 3×0.5mm (Width × Thickness)
Blade Tension Cylinder
Total Power 10kw, 380V, 50HZ
Overall Weight 2000kg
Overall Dimension 5800×3180×2400 mm





Description:

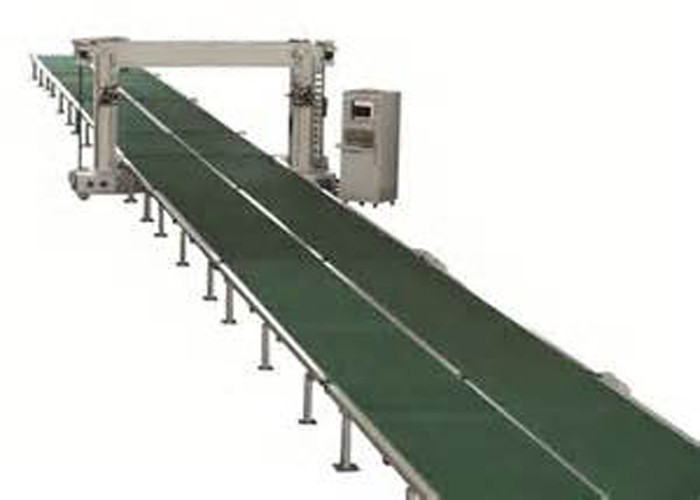

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which suitable flexible foam.

The blade cut with high speed vibrating, resulting that it will work faster and the product will be smoother.

 Especially, no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.





CNC foam insoles contour cutting machine cutter



- CNC foam insoles contour cutting machine

- CNC foam cutter
- CNC foam contour cutting machine Zhejiang
- Max speed is 10 m/min.





Application area:



It can clean cut any ideal geometric profile. It can be used in Automotive industry, Furniture industry, Packing industry, Building industry,

Daily commodity and so on.

It can be used in slice cutting into different shape.





Double blades finished product:



Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min     Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min     Brake System Oscillating Blade Cutting Machine For Polyurethane Foam 10 M / Min
