CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine

China CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine supplier
CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine supplier CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine supplier CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine supplier

Large Image :  CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2512

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000-45000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×2500×1200mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 8.5kw 380V 50HZ Weight: 2500kg

Automatic Cutting Machine , CNC Latex Sponge Oscillating Blade Cutter 6m / Min





Application:



Polyurethane, PU soft foam, sticky foam, latex,

basotect, composite foam, frame foam, polyethylene.





Advantage:



Worktable:plat working table, moving table (could select)





Specification:



Model

DTC-S2512

Control System

Industrial Computer

Max. Product Size

2500×2500×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

8.5kw 380V 50HZ

Weight

2500kg





Description:

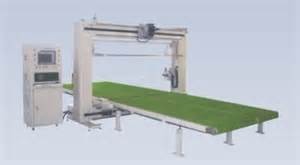

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which is suitable flexible foam.

The blade cut with high speed vibrating,

so that it will work faster and the product will be smoother. Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process

and enables the operator to obtain the best yield from the foam block.



All the machine are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.



We have different working tables for choosing to meet your request, such as turn table, vacuum table, belt conveyor table etc.



Terms:



Payment: 30% advance payment by T/T upon signing the contract



70% covered by T/T or Sight Confirmed Irrevocable L/C before delivery.



Delivery: 15-40 days after receipt of advance payment.



Installation and Startup: One technician will be assigned to coordinate installation,

commissioning and training, cost for flight and

suitable accommodation plus USD80/day per person

will be charged additionally.



Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.

Shipping cost for parts to be replaced

during warranty period have to be borne by the customer.

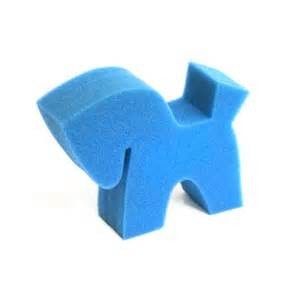

Finished products:



CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine      CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine      CNC Latex Sponge Oscillating Blade Cutter 6m / Min , Automatic Cutting Machine
