Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer

China Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer supplier
Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer supplier Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer supplier Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer supplier

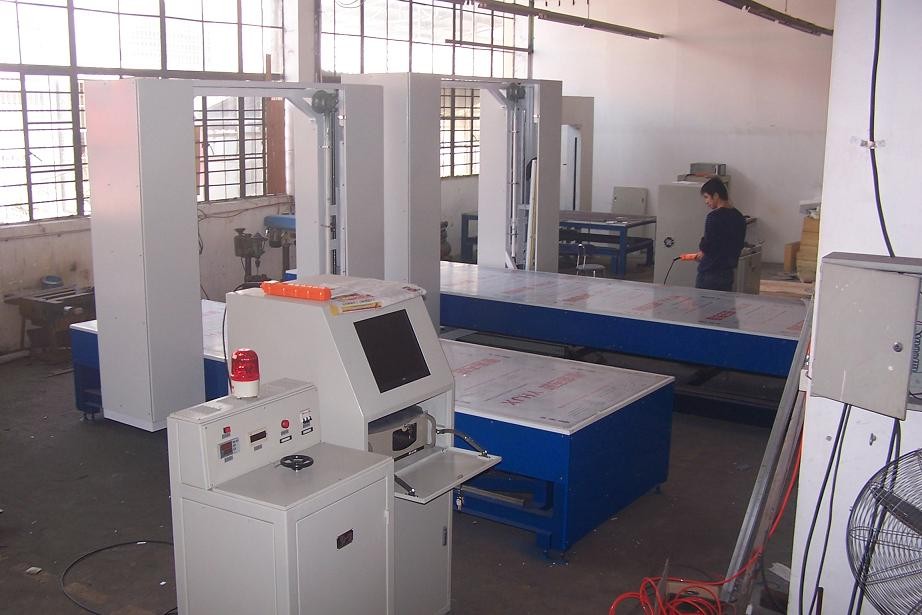

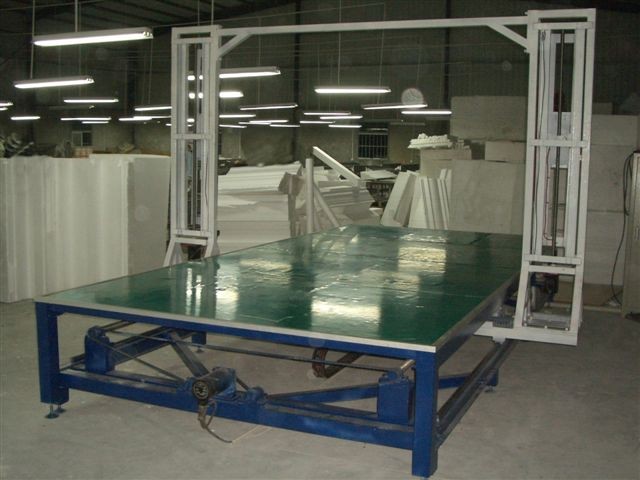

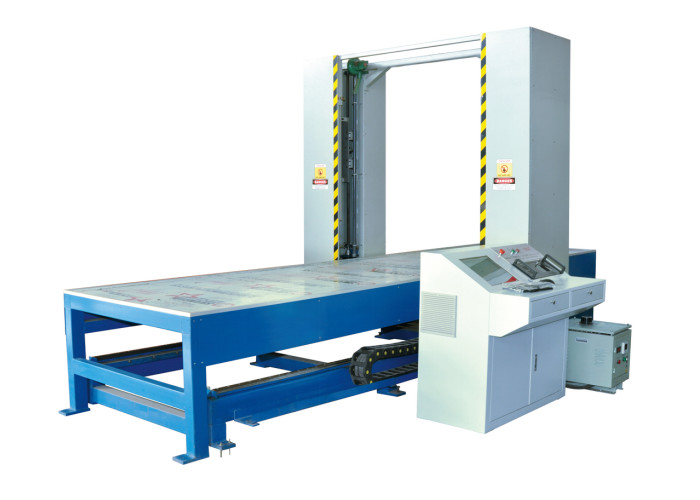

Large Image :  Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E6012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000 - 50000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Cutting Speed: 0~1.5m/min Cutting Line: 0.25~1.2mm
Power: 14.5kw Voltage: 380V
Dimension: 6000*1300*1300mm Overall Weight: 2000kg

Automatic CNC 3D Shape Hot Wire Foam Cutter from China Machine Manufacturer







[ CNC EPS Foam Hot Wire Contour Cutter ]



Suit for: Polystyrene

Cutting Line: Hot Wire

Application:D&T series hot wire contour cutter is special cutting machine for complex shape products of EPS.It has one or several cutting wires for different production requests.



Features:

1.All the machines are driven by the remarkable D&T Profiler software:the software speeds up the

design process and enables the operator to obtain the best yield from the foam block;

2.It has perfect safe system to prevent the accident:all Motors will stop when the safety dooropened;

Exigency button on both machine and control box is for preventing accident.





Technology Date

Model DTC-E2012 DTC-E3012 DTC-E3030

Max.

Product Size

L2000*W1300*

H1000mm

L3000*W1300*

H1300mm

L3000*W3000*H1300mm
Cutting line Φ0.8~1.2mm Φ0.8~1.2mm Φ0.8~1.2mm
Cutting Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Cutting Software D&T Profiler D&T Profiler D&T Profiler
Control System Industrial Computer Industrial Computer Industrial Computer

Computer

Operation System

Windows XP Windows XP Windows XP
Cooling System Air blower Air blower Air blower

Acceptable

File Formats

DXF/DWG DXF/DWG DXF/DWG
X-Axis Motor Servo Motor Servo Motor Servo Motor

Number of

Cutting Wire

Up to 20 Up to 20 Up to 20
Total Power 13.5kw, 380V, 50Hz 14.5kw, 380V,50Hz 14.5kw, 380V,50Hz
Gross Weight 1200kg 1500kg 2000kg



_

Company Information:Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting mac hine, polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assista nt equipments. Eps Preexpander machine.Through the research of our engineers, our cutting mac hine had connected well with the popularized CAD and achieved automation and high efficiency, hi gh accuracy and makes it easy to operate.We always put the customer on the first place and mak e every efforts to satisfy the customers.We wholeheartedly look forward to developing economic, technical and trade cooperation with you.
