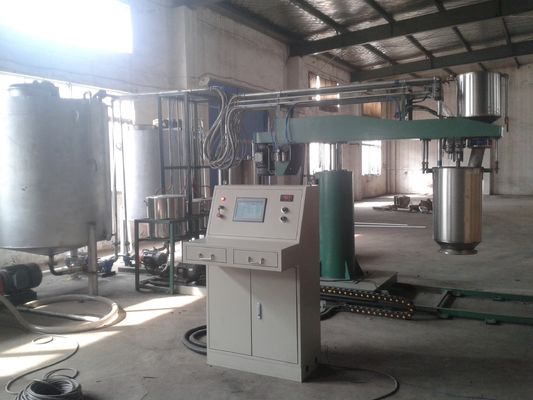

Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw

China Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw supplier
Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw supplier Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw supplier Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw supplier

Large Image :  Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTPUF-75

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD35000~100000 / set
Packaging Details: packed with pvc film into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Item: Batch Box Foaming Machine Product Size: 3000*2000mm
Product Height: Below 1100mm Raw Material: 7 Groups
Density: 10Kg/m³~60Kg/m³ Maximum Capacity: 220L/mould
Production Capacity: 230kg/h Total Power: 35KW
Foaming Model: Semi-automatic Application Area: Sponge, Polyurethane Foam, Mattress, Furniture
Chemical: PPG, TDI, MC, Silicone+H2O, T9, A33, Etc.

Full Automatic Sponge Mattress Production Line High Effeicient 7.5kw



1. Product Description




3). Configuration

      3.1 Components (total 7 components)


No. Component Material Tank Out-feed Pump specification
1 PPG 3 Ton,A3 Steel CB-7

Feeding Pump, Mixing device, Constant
Temperature Coil, Material Tank
Thermometer, Liquidometer

2 TDI 2 Ton,A3 Steel NB2-C32F

Feeding Pump, Mixing device, Constant
 Temperature Coil, Material Tank
Thermometer, Liquidometer

3 MC

500L
2mm Stainless
Steel

NB2-D10F Feeding Pump, Liquidometer
4 T9

50L
1mm Stainless
Steel

HGP-2A-F2R
5

Silicone
Oil

50L
1mm Stainless
Steel

HGP-2A-F2R
6 A33

50L
1mm Stainless
Steel

HGP-2A-F2R
7 Water

50L
1mm Stainless Steel

HGP-2A-F4R





2). Main Technology Data:

     Max.Product Size: 2400mm×2000mm (L×W)
     Max. Product Height: 1200mm
     Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)
     Density: 10Kg/m³~60Kg/m³
     Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour

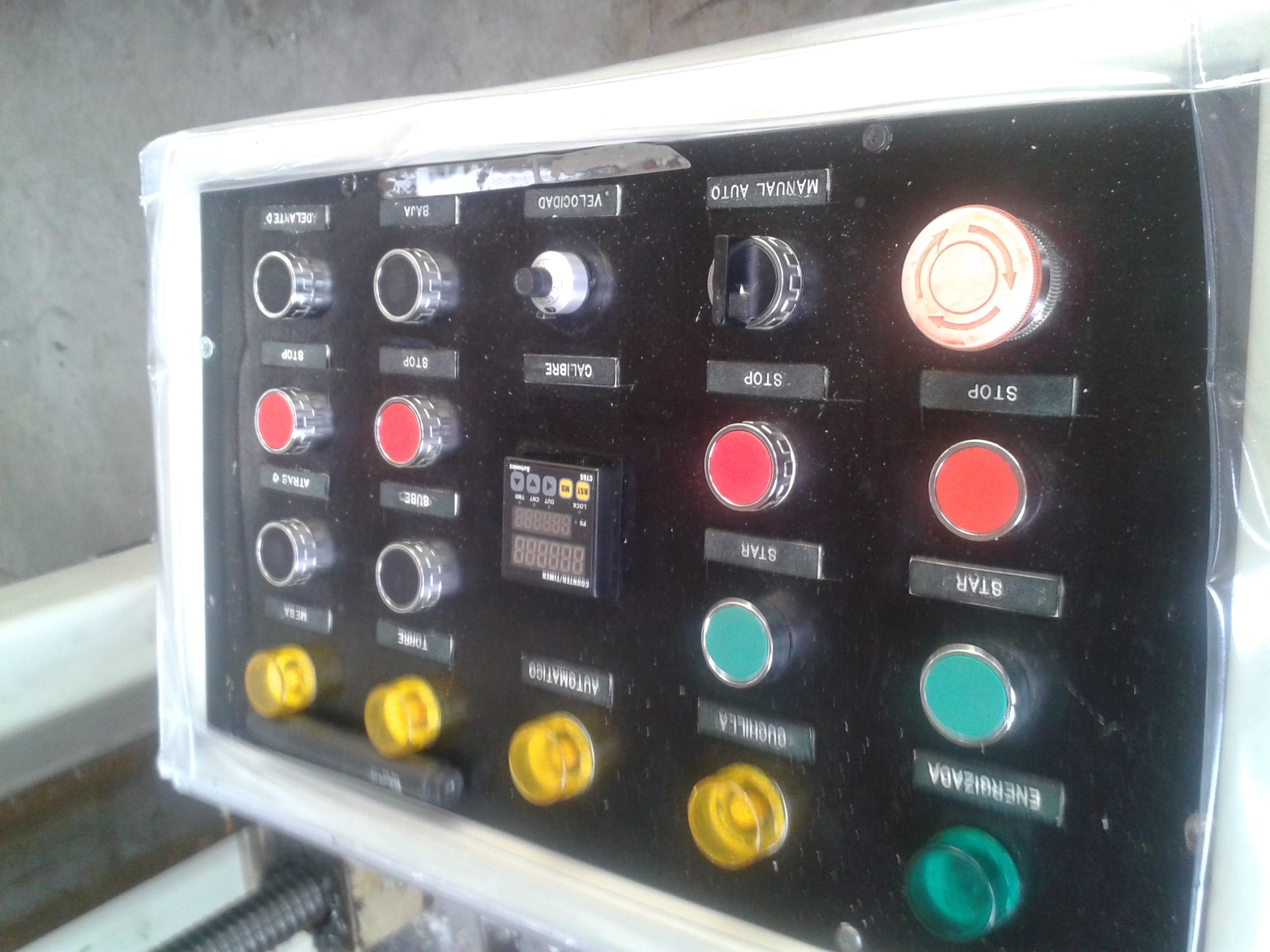

     Touch scream and semi-automatic control system with 100 foaming formula
     Power of Mixing Head: 7.5kw(Brake motor)
     Total Power: 30KW


3.2 Mould

   Quantity: 2sets
   Size: W2100*L2450*H1200mm

Terms of Payment: 30% advance payment by T/T upon signing the contract
                              70% covered by T/T before delivery

Installation and Start-up: 2 technicians will be assigned to coordinate installation,
commissioning and training, cost for flight and suitable accommodation plus USD60/day will be charged additionally.

Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
                Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
