Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould

China Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould supplier
Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould supplier Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould supplier Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould supplier

Large Image :  Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTPUF-75

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD35000~800000 set
Packaging Details: packed with pvc film into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 sets per month
Detailed Product Description
Item: Batch Box Foaming Machine Product Size: 3000*2000mm
Product Height: Below 1100mm Chemical: PPG, TDI, MC, Silicone+H2O, T9, A33, Etc.
Density: 10Kg/m³~60Kg/m³ Maximum Capacity: 220L/mould
Production Capacity: 230kg/h Total Power: 35KW
Foaming Model: Semi-automatic Application Area: Sponge, Polyurethane Foam, Mattress, Furniture

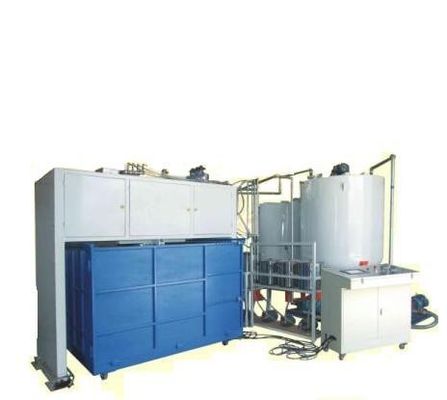

Sponge / PU Foam Production Line / Machine For Medium Scales Plant 220L / Mould





Polyurethane Sponge Production Line/ machine to foaming mattress/ Semi-auto Foaming machine for sponge mattress



Product Description




1). Main Technology Data:



     Max.Product Size: 2400mm×2000mm (L×W)

     Max. Product Height: 1200mm

     Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)

     Density: 10Kg/m³~60Kg/m³

     Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour

     Touch scream and semi-automatic control system with 100 foaming formula

     Power of Mixing Head: 7.5kw(Brake motor)

     Total Power: 30KW





1). Configuration



3.1 Components (total 7 components)



3.2 Mould

Quantity: 2sets

Size: W2100*L2450*H1200mm





No.

Component

 Material Tank

Out-feed Pump

specification

1

PPG

3 Ton,A3 Steel

  CB-7

Feeding Pump, Mixing device,

Constant Temperature Coil,

Material Tank Thermometer,

 Liquidometer

2

TDI

2 Ton,A3 Steel

NB2-C32F

Feeding Pump, Mixing device,

 Constant Temperature Coil,

Material Tank Thermometer,

 Liquidometer

3

MC

500L

2mm Stainless Steel

NB2-D10F

Feeding Pump, Liquidometer

4

T9



50L

1mm Stainless Steel

HGP-2A-F2R





5

Silicone Oil

50L

1mm Stainless Steel

HGP-2A-F2R





6

A33



50L

1mm Stainless Steel

HGP-2A-F2R





7

Water

50L

1mm Stainless Steel

HGP-2A-F4R















Terms:

Terms of Payment:    30% advance payment by T/T upon signing the contract
                                 70% covered by T/T before delivery
Delivery:                    45 working days after receipt of advance payment.

Installation and Start-up:

                                  One technician will be assigned to coordinate installation,
                                 commissioning and training,
                                 cost for flight and suitable accommodation plus
                                 USD80/day per person will be charged additionally.
Warranty:                 12 months limited warranty starting
                                 from date of delivery excluding wear parts.
                                Shipping cost for parts to be replaced
                                during warranty period have to be borne by the customer.

                              All size can be made by your requirement.
