Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h

China Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h supplier
Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h supplier Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h supplier Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h supplier

Large Image :  Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTPUF-75

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD35000~100000 set
Packaging Details: packed with pvc film into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Item: Batch Box Foaming Machine Product Size: 3000*2000mm
Product Height: Below 1100mm Chemical: PPG, TDI, MC, Silicone+H2O, T9, A33, Etc.
Density: 10Kg/m³~60Kg/m³ Maximum Capacity: 220L/mould
Production Capacity: 230kg/h Total Power: 35KW
Foaming Model: Semi-automatic Application Area: Sponge, Polyurethane Foam, Mattress, Furniture

Full-Auto Batch Box Polyethylene Foam Sheet Machine / Equipment 230kg / h




Product Description


3.1 Mould



Quantity: 2sets

Size: W2100*L2450*H1200mm



2). Main Technology Data:



     Max.Product Size: 2400mm×2000mm (L×W)

     Max. Product Height: 1200mm

     Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)

     Density: 10Kg/m³~60Kg/m³

     Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour

     Touch scream and semi-automatic control system with 100 foaming formula

     Power of Mixing Head: 7.5kw(Brake motor)

     Total Power: 30KW



3). Configuration

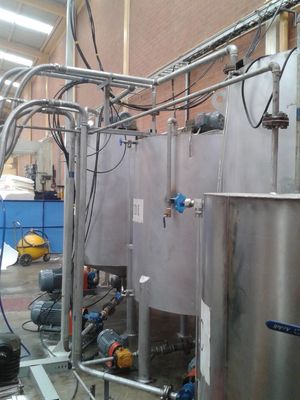

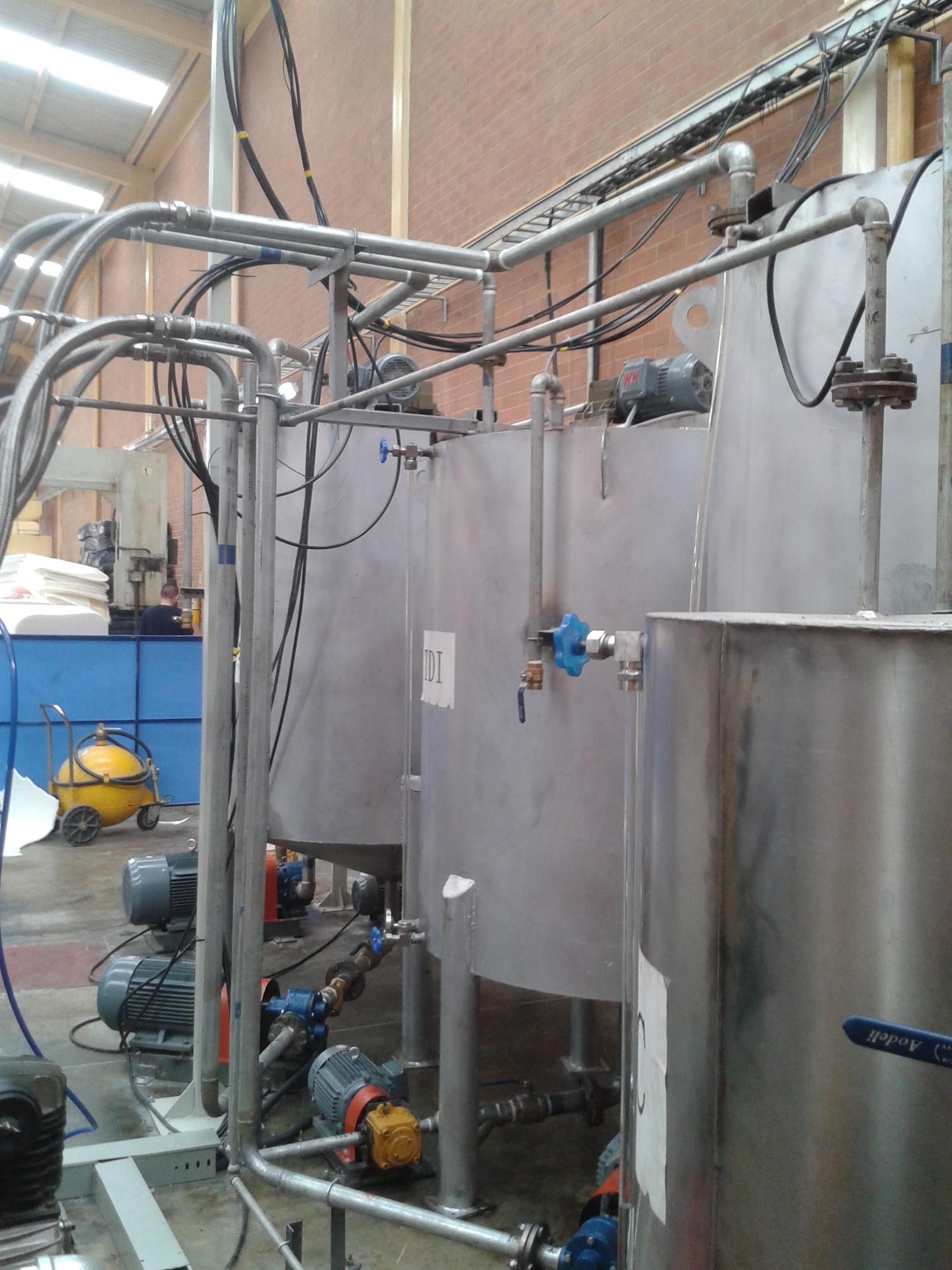

      3.1 Components (total 7 components)



No.

Component

 Material Tank

Out-feed Pump

specification

1

PPG

3 Ton,A3 Steel

  CB-7

Feeding Pump, Mixing device, Constant

Temperature Coil, Material Tank Thermometer,

 Liquidometer

2

TDI

2 Ton,A3 Steel

NB2-C32F

Feeding Pump, Mixing device, Constant

Temperature Coil, Material Tank Thermometer,

Liquidometer

3

MC

500L

2mm Stainless

Steel

NB2-D10F

Feeding Pump, Liquidometer

4

T9



50L

1mm Stainless

Steel

HGP-2A-F2R





5

Silicone Oil

50L

1mm Stainless

Steel

HGP-2A-F2R





6

A33



50L

1mm Stainless Steel

HGP-2A-F2R





7

Water

50L

1mm Stainless

Steel

HGP-2A-F4R













Terms of Payment: 30% advance payment by T/T upon signing the contract

                              70% covered by T/T before delivery



Installation and Start-up: 2 technicians will be assigned to coordinate installation, commissioning and

training, cost for flight and suitable accommodation plus USD80/day will be charged additionally.



Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

                Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
