PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M

China PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M supplier
PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M supplier PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M supplier PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M supplier

Large Image :  PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: 4M

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD33000-100000 /set
Packaging Details: PVC and wood package
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machine Overseas
Control System: PLC Tilter: L2000*W800mm
Chain Conveyor: L8000* W800mm Horizontal Cutting Station: Horizontal Cutting
Vertical Cutting Station: Vertical Cutting Down Cutting Station: Cut The EPS To Requested Length
Roller Conveyor: L2000*W800mm For Block

PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M





Option:



1. Automatic Wire Position System

2. Automatic Wastage Recycle System





Application:



Long EPS block continous cutting





Advantage:

1. EPS fully automatic continous cutting machine
2. For the total machine,it adopts sand blast and rust remove

Description:

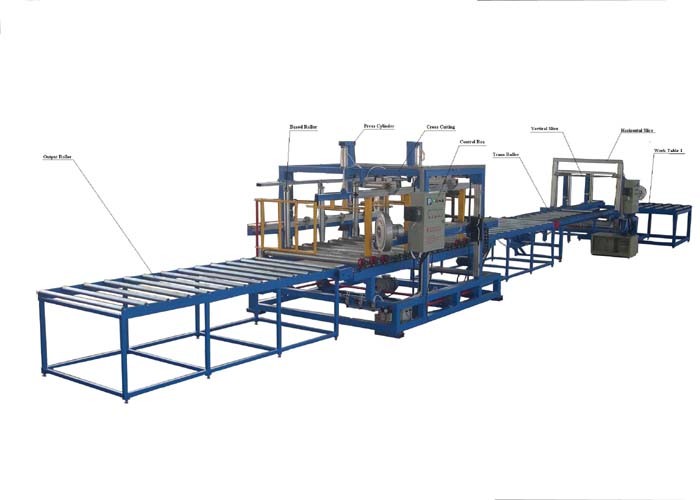

The whole cutting line is composed as follows:

1. A Tilter (1) 2000mm length,800mm width

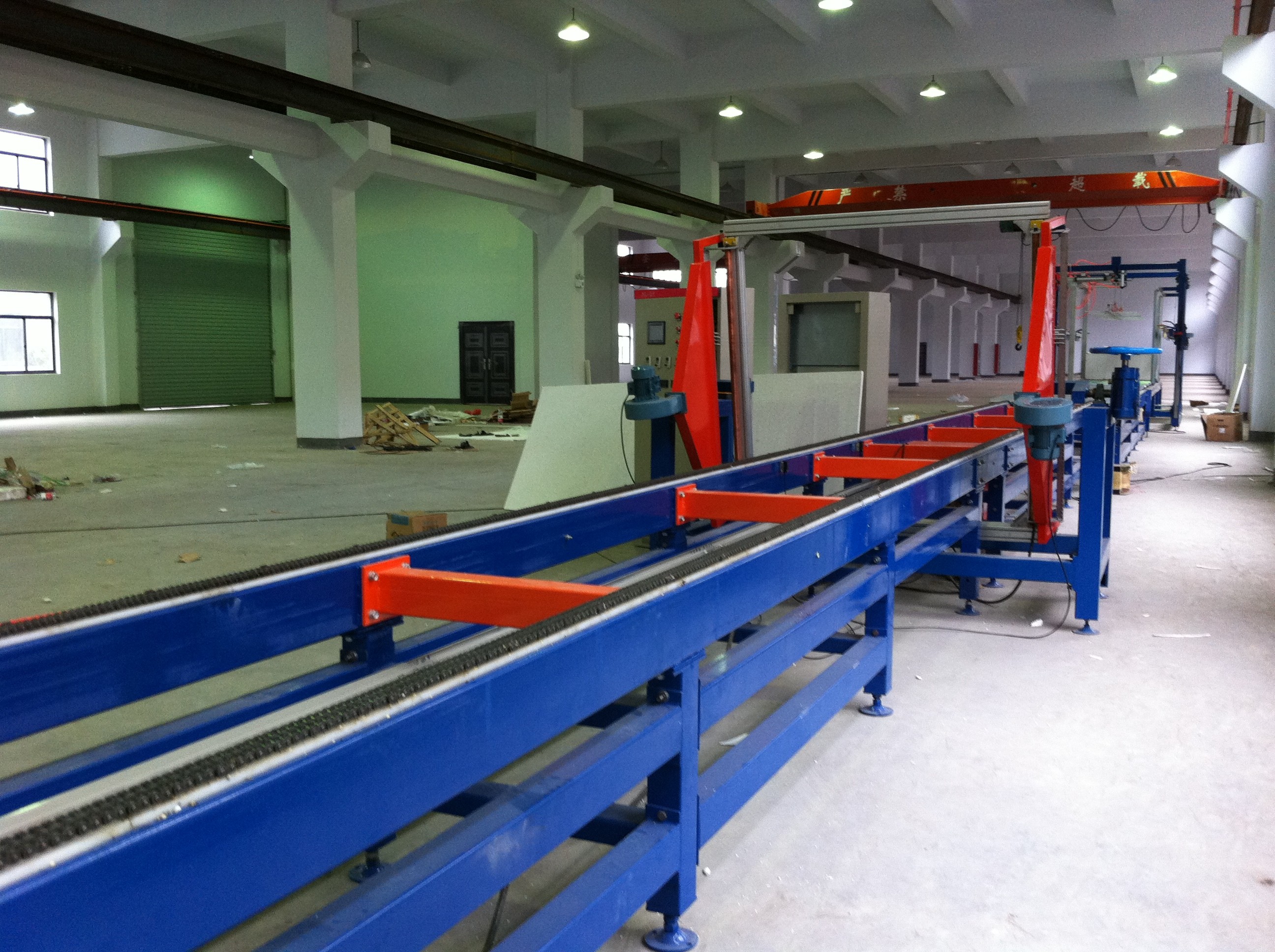

2. A Chain Conveyor  (2) 8000mm length, 800mm width for Block Loading and centering operations

    EPS board. It is drived by a SIEMENS AC motor which driven by a SIEMENS inverter.

3. A horizontal cutting station (3) for horizontal cutting. It is used to cut the foam block to requested

    thickness.Are installed on horizontal cutting frame and tense with springs. The cutting voltage can be

    adjusted to get the best cutting temperature for different foam density.

4. A vertical cutting station (5) for vertical cutting. It can cut the EPS boards to be different width and

    trimming two sides.

5. A Roller Conveyor  (6) 2000mm length, 800mm width for Block stock.

6. A down cutting station (7) to cut the EPS to requested length. A 10kVA transformer is use to heat the

   wires. The cutting voltage can be adjusted to get the best cutting temperature for different foam density.

   It has the Roller conveyor (8) length 4500mm, width 800mm also.

7. A Roller Conveyor (9) 4000mm length, 1300mm width for block output.







Specification:



Model 4m
Control System PLC
Max. EPS Block L4000*W1300*H1000mm

Max. Number of Wires

Horizontal Cutting Station

40pcs
Vertical Cutting Station 15pcs
Down Cutting Station 20pcs

Min. Cutting distance

Horizontal

8mm

Down Cutting

400mm

Cutting Speed

0~3m/min (Adjustable)



Electrical requirements

380V,50Hz,3phases

Installed Power

24kw

Overall Dimension

L20500*W2500*H2950 mm

Weight

3280kgs









Finished products:



PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M      PLC Horizontal Continuous EPS Cutting Machine , EPS Production Line 4M
