Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³

China Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³ supplier

Large Image :  Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTBF-11/15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4500~6000/SET
Packaging Details: Packed with pvc film.
Delivery Time: 45DAYS
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 SETS PER MONTH
Contact Now
Detailed Product Description
Name: Foam Mattress Mixing Making Product Size: W1050~2050mm/L2250~3050mm (adjustable)
Product Height: 1200mm Component Of Foaming Material: PPG, TDI, MC, S1+H2O, T9, A33 Etc.
Density: 10Kg/m³~60Kg/m³ Mixed System: Speed 30~40 R/min
Continual Foaming: Manual Operation Total Power: 15KW
Application Area: Sponge, Polyurethane Foam, Mattress, Furniture

Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³



Foam Mattress Mixing Making Machine ,

Sponge Production Line 10Kg / m³ - 60Kg / m³





Polyurethane Sponge Production Line/

machine to foaming mattress/ Polyurethane foaming machine



Manual Sponge Production Line ( Small Factory Plant)




Product Description

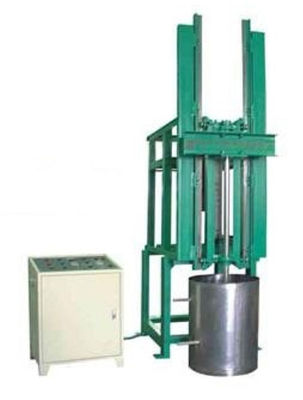

Manual foaming machine



Type: DTBF-11A



1).  Motor 11kW with Transducer

2).  Capacity: 150kg

3).  Mixing Speed: 0-2800r/min





TECHNICAL DATA



Type

DTPQ-1650

Max. Product Size

2000×1650×1200(mm)

Cutting Line

8500 mm

Control System

Transducer

Cutting Speed

0~25m/min

Overall Power

8.14kW

Overall Dimension

5800×3500×2400 mm

Overall Weight

2000kg



















































Type: F-1#



Product Size: W1050~2050mm(adjustable)

L2250~3050mm (adjustable)

H 1200mm

2.1 Carbon Steel Material Tank

Volume: 3Tons

Size: Φ1500mm×H1700mm/δ4.0

Mixed System: Speed 30~40 r/min

With temperature meter and pump, outside be insulated.



2.2 Stainless Steel Material Tank



Volume: 2Tons

Size: Φ1300mm×H1500mm/δ3.0

Mixed System: Speed 30~40 r/min

With temperature meter and pump, outside be insulated.



3. Horizontal Cutter



This cutter is a kind of Automatic Control machine, and has the Frequency conversion system.

It is used to cut sponge sheet.



4.  Vertical Cutter



TECHNICAL DATA

Type

DTLQ-4L

Inner Table Size

1720×2290(mm)

Outer Table Size

2000×2290(mm)

Cutting Height

800/1200(mm)

Cutting Thickness

>3mm

Cutting Line

8100/8900(mm)

Overall Power

1.74kW

Overall Dimension

4500×4800×2550 mm

(L×W×H)

Overall Weight

1600kg



















































Terms:



Terms of Payment: 30% advance payment by T/T upon signing the contract

                              70% covered by T/T before delivery or sight confirmed L/C.

Installation and Start-up:

                    2 technicians will be assigned to coordinate installation,

                    commissioning and training,

                    cost for flight and suitable accommodation plus

                   USD60/day will be charged additionally.



Warranty: 12 months limited warranty.

                 Starting from date of delivery excluding wear parts.

                Shipping cost for parts to be replaced

                during warranty period have to be borne by the customer.
