Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic

China Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic supplier
Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic supplier Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic supplier

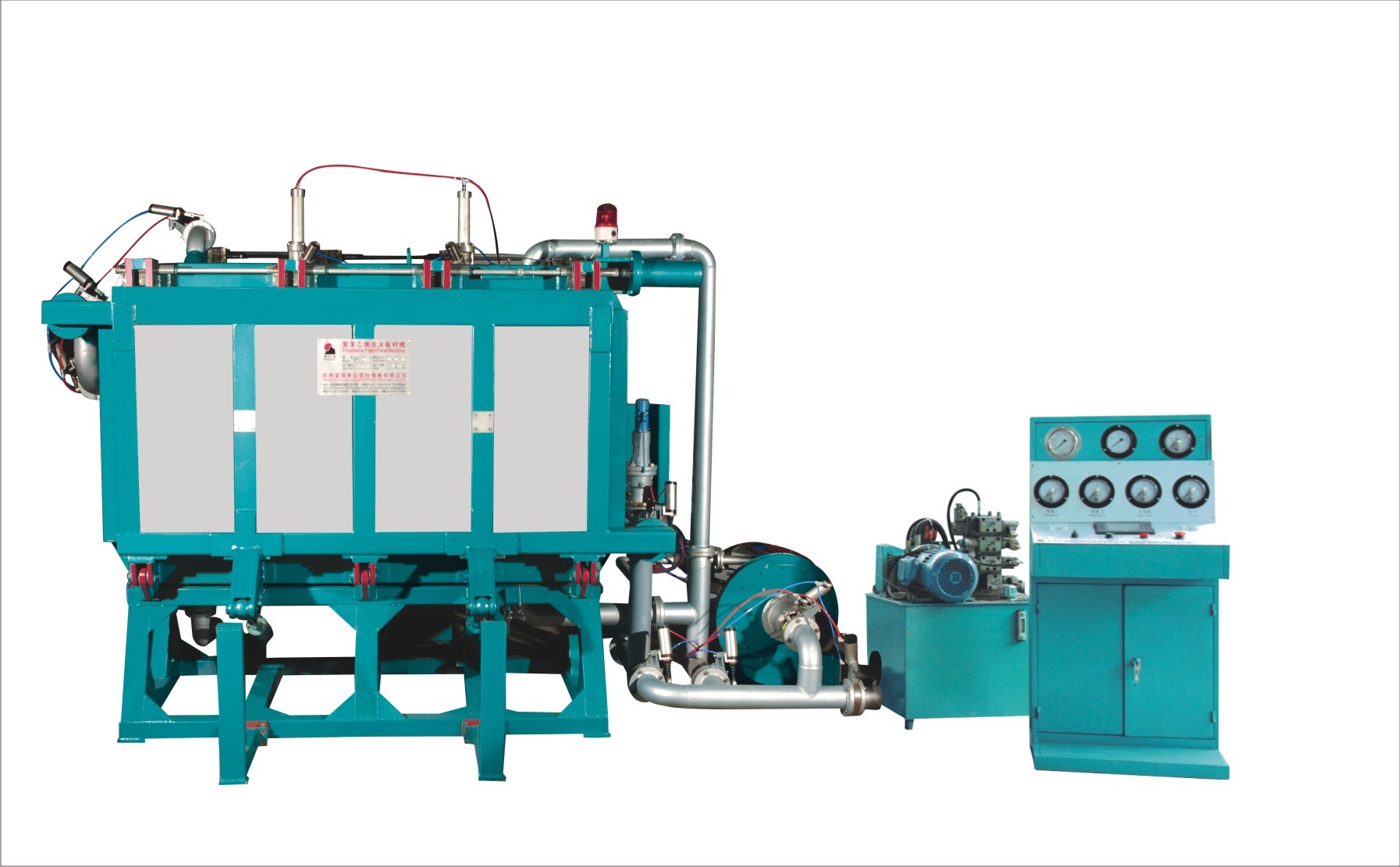

Large Image :  Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: PB2000VS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Mould Cavity Size: 2040 *1020 *580 Mm Block Size: 2000 * 1000 * 560 Mm
Steam Entry: DN 80 Mm Steam Consumption: 18 - 25 Kg/Cycle
Steam Pressure: 0.6-0.8 Mpa Compressed Air Entry: (DN40)
Compressed Air Pressure: 0.6-0.8 Mpa Drainage Steam Vent: DN100 Mm
Capacity @ 15 Kg/m: 12 Min / Cycle Connected Load/Power: 7 Kw
Overall Dimension(L*W*H): 3800*2000*2100 Mm Weight: 3500 Kg

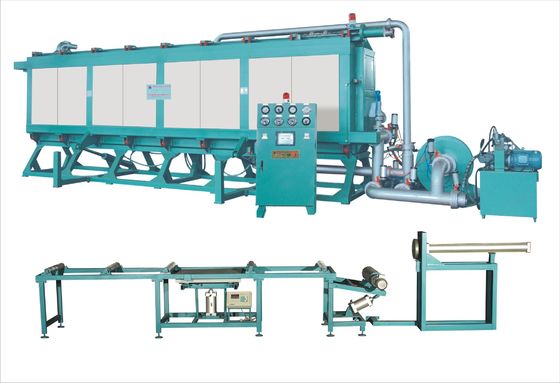

Fan Feeding Auto Air Cooling Block Moulding Machine Automatic Pneumatic





 The machine adopts PLC programmable controller and  touch humanmachine interface control,automatic

 feeding,

automatic control feeding process,has formed a complete guarantee

auto matic cycle of production equipment.

The machine uses high quality square tube and welded steel

 and other groups,each template through heat treatment

and after assembly of small deformation,strength and durability.

The machine uses a unique heat penetration of

advanced foreign EPS molding process,penetrating ability,

good adhesion,good product quality,significant energy saving features.

The machine uses advanced processing technology and piping layout,

also refer to the advantages of foreign board machine design unique structure,

greatly improving production efficiency,but also makes foam sheet production

 in the country reached a leading equipment position,

is the ideal and efficient production equipment.

The machine uses the control instruments,electrical,

pneumatic components,valves and other fittings are of high quality brand-name products at home and

board,the equipment into being rectangular,

flat shape ,reliable quality.

The machine uses hydraulic station centralized,hydraulic single door,

hydraulic and automatic ejection release the tight bodies,

thus ensuring the smooth operation of the machine,and reliable performance.

Each foam board production cycle 4-8minutes production efficiency is high.Automatic pneumatic

 feeding,

vacuum-assisted feeding,fast.

The machine features a highly efficient vacuums system and condensing units,

penetrating ability,cooling speed,low moisture content,etc...





Feature:



Performing fully automatic, semi-automatic,

middle starting and manual operating mode;
Using hydraulic system mold clamping, stable and reliable;
The main intake of steam control valve is pneumatic valve,

good sealing, and long life;
Using the programmable control with color touch screen control,

easy to operate;
Automatic feeding, convenience and high efficiency;
The main components (CPU template, touch screen, etc.)

all use international and domestic brands;
Forced air-cooled refrigeration,

high cooling efficiency, low moisture content;
Weighing shelf is available to buy individually

according to customer requirements;




Technical Data:





Item

Unit

PB2000VS

Mould Cavity Dimension

mm

2040*1020*580

Block Size

mm

2000*1000*560



Steam

Entry

mm

DN80

Consumption

Kg/Cycle

18~25

Pressure

Mpa

0.6-0.8



Compressed Air

Entry

mm

DN40

Consumption

m³/Cycle

1-1.2

Pressure

Mpa

0.6~0.8

Drainage

Steam Vent

mm

DN100

Capacity @15Kg/m³

Min/cycle

12

Connected Load/Power

Kw

7

Overall Dimension(L*W*H)

mm

3800*2000*2100

Weight

Kg

3500

Unit Price(Ex.Works)

USD

















































































































Terms:



Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.



Delivery:                            60 days after receipt of advance payment.



Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,



Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.

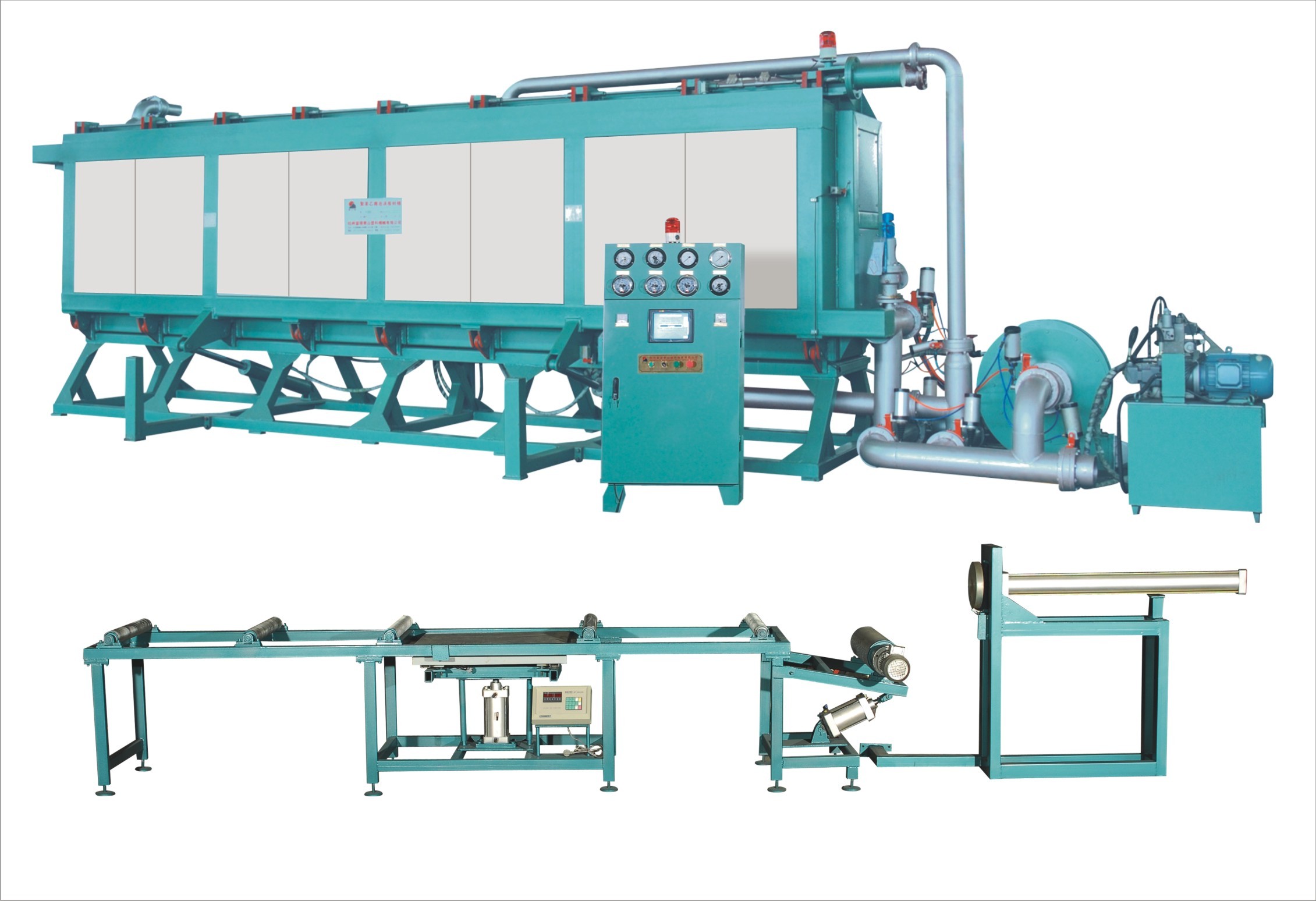

Fan Feeding Auto Air Cooling EPS Block Moulding Machine Automatic Pneumatic
