High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

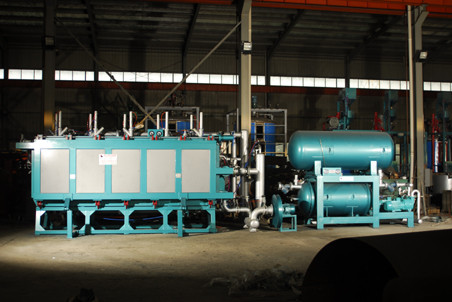

High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle

China High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle supplier
High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle supplier High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle supplier

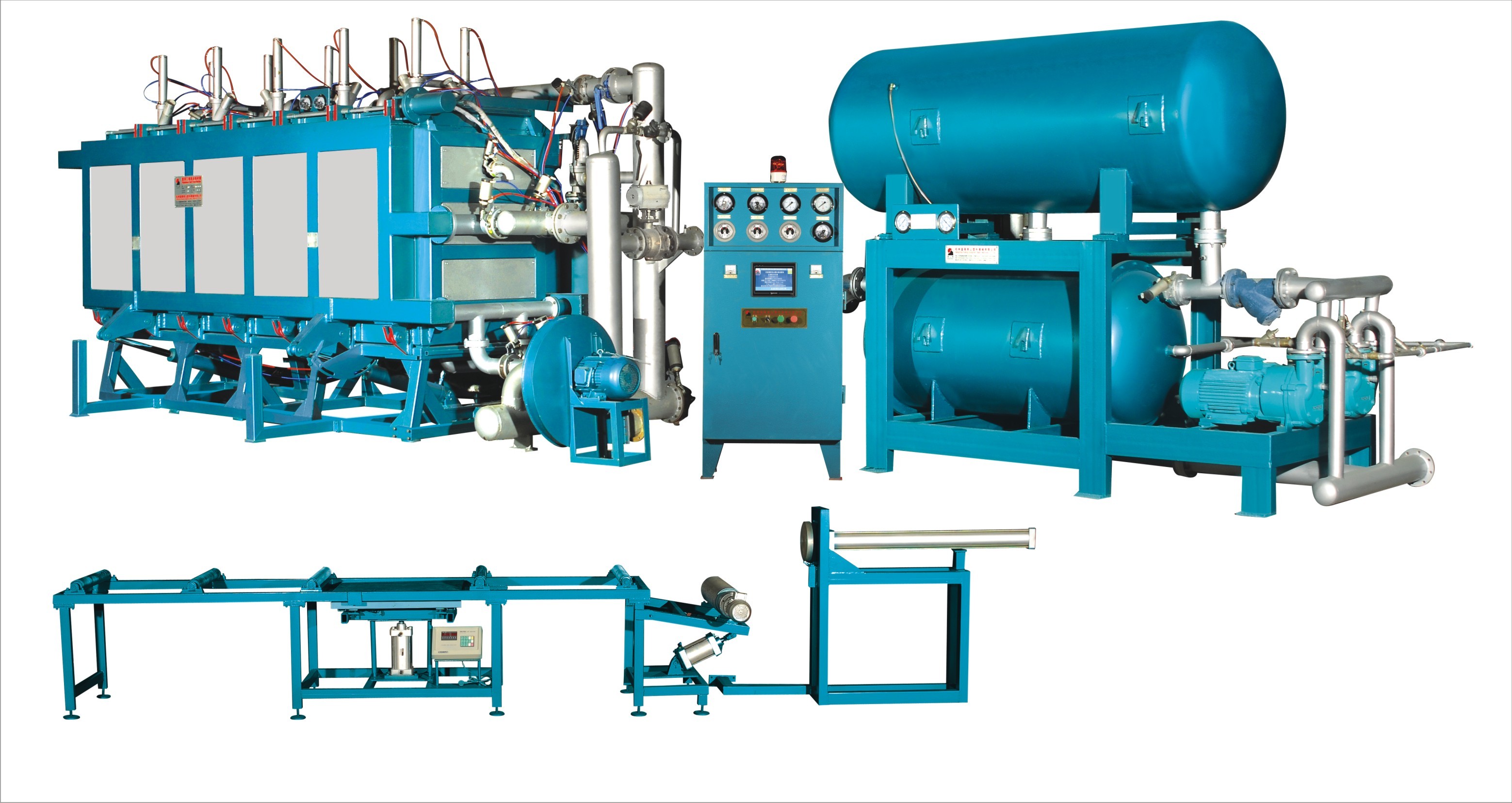

Large Image :  High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: PB 2000 VS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Detailed Product Description
Mould Cavity Size: 2040 *1240 * 1030 Mm Steam Entry: 2’’(DN50) Inch
Steam Consumption: 25- 45Kg/Cycle Steam Pressure: 0.6-0.8 Mpa
Compressed Air Entry: 1.5 ’’(DN40) Compressed Air Pressure: 0.6-0.8 Mpa
Drainage Vacuum Drain: DN100 Drainage Down Steam Vent: DN100
Capacity (15g/l): 4 Min / Cycle Connected Load/Power: 19.75
Overall Dimension(L*W*H): 5700 * 4000 * 2800 Mm Weight: 5000 Kg





High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle







Application:





The fat barrel,outside all stainless steel compartment has insulation measures,reliable performance,

reasonable structure,beautiful,stable quality,high production efficiency ,increase 2-3times than the average

 machine,low energy consumption 25%.



The machine feed system including a feeding device and the secondary device, a feeding device by

adjusting the feed rate of transmission in order to ensure a stable feed.



EPS beads through the material,the foam into the fluidized bed dryer(customer optional)and then into

 the aging silo through the fan delivery device,complete raw foaming process.Process cycle according

 to the second foam.



The machine produced more uniform density can foam density 7-35kg/m³.



Let the steam valve,the user can choose according to need.





Technology Data:



Item

Unit

PB2000VS

Mould Cavity Dimension

mm

2040*1240*1030

Block Size

mm

2000*1200*1000



Steam

Entry

Inch

DN50

Consumption

Kg/Cycle

25~45

Pressure

Mpa

0.6-0.8





Compressed Air

Entry

Inch

DN40

Consumption

m³/Cycle

0.4

Pressure

Mpa

0.6~0.8



Drainage

Vacuum Drain

Inch

DN100

Down Steam Vent

Inch

DN100

Air Cooling Vent

Inch

DN100



Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.4

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

4

Connected Load/Power

Kw

19.75

Overall Dimension(L*W*H)

mm

5700*4000*2800

Weight

Kg

5000



































































































Feature:



It adopts Japan Mitsubishi Corporation PLC,

imported touch screen, full English display,

graphical interfaces

intelligent control,

achieve man-machine conversation.





Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.

High Efficient Vaccum EPS Foam Block Molding Machine Low Moisture 25Kg / Cycle
