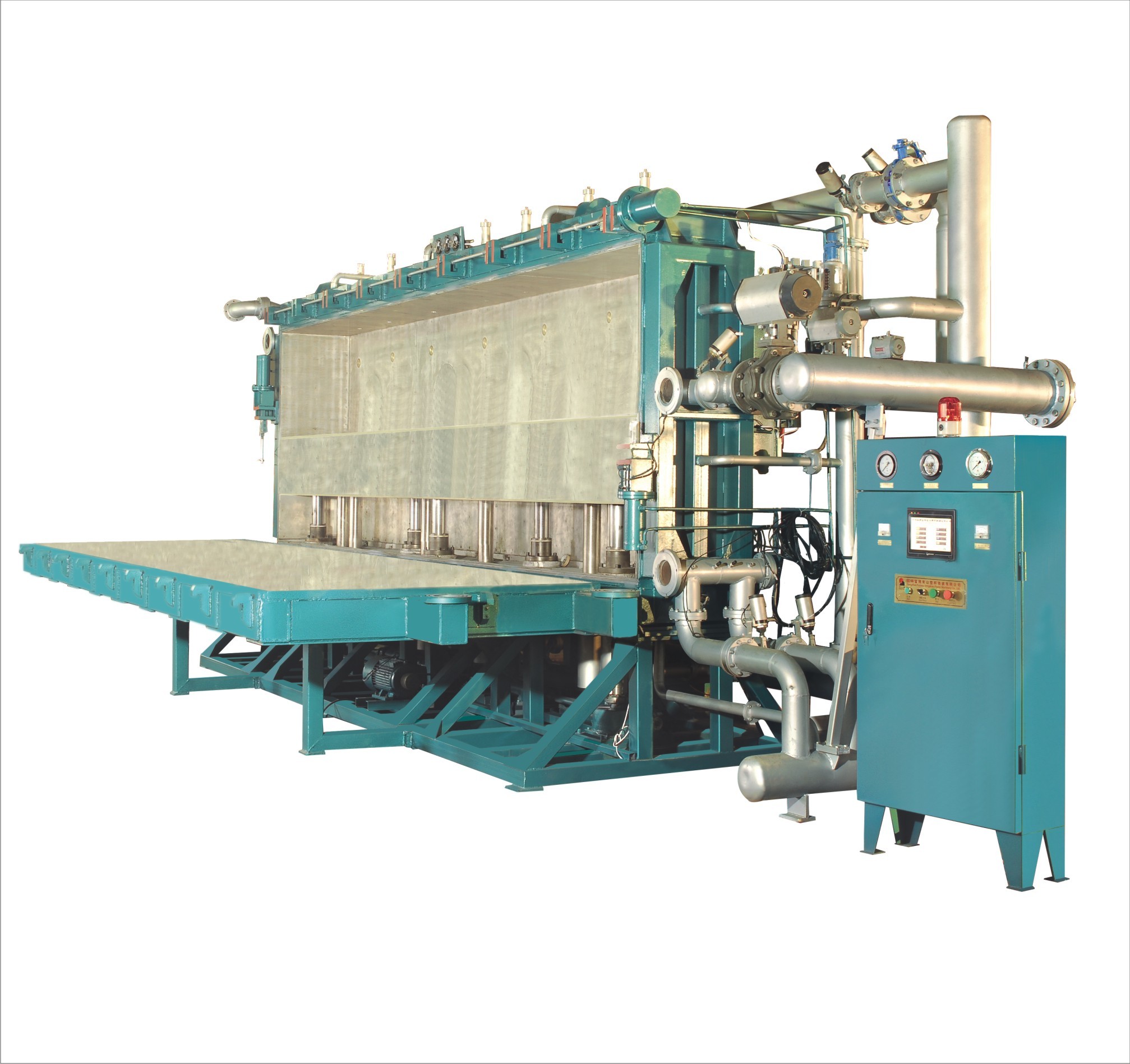

Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW

China Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW supplier
Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW supplier Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW supplier

Large Image :  Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPB 2000 VS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Mould Cavity Size: 2050 *1240 * 630 Mm Steam Entry: 6’’(DN150) Inch
Steam Consumption: 25- 45Kg/Cycle Steam Pressure: 0.6-0.8 Mpa
Compressed Air Entry: 1.5 ’’(DN40) Compressed Air Pressure: 0.6-0.8 Mpa
Drainage Vacuum Drain: DN100 Drainage Down Steam Vent: DN150
Capacity (15g/l): 4 Min / Cycle Connected Load/Power: 23.75
Overall Dimension(L*W*H): 5700 * 4000 * 2800 Mm Weight: 8000 Kg


Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW

Feature:

1. Good adhesion,Use less gas,Rapid prototyping.
2. Little noise,Clamping force,High strength.
3. automatic product,High thermal efficiency,Low moisture content.
4. High tensile strength,Long service life,high Penetrating power.
5. High production efficiency ,High efficiency heat conduction.


Application:

1.  The machine adopts PLC programmable controller

     and touch human-machine interface control ,
     automatic feeding,automatic control feeding progress,

     has formed a complete guarantee automatic
    cycle of production equipment.
2. The machine uses high quality square tube and welded steel and other groups,

     each template through heat treatment and after assembly of small deformation,

     strength and durability.
3. The machine uses a unique heat penetration of advanced foreign EPS molding process,
    penetrating ability,good adhesion,good product quality,

    significant energy saving features.


Technology Data:


Item

Unit

SPB2000VS

Mould Cavity Dimension

mm

2050*1240*630

Block Size

mm

2000*1200*1000


Steam

Entry

Inch

DN50

Consumption

Kg/Cycle

25~45

Pressure

Mpa

0.6-0.8




Compressed Air

Entry

Inch

DN40

Consumption

m³/Cycle

0.4

Pressure

Mpa

0.6~0.8


Drainage

Vacuum Drain

Inch

DN100

Down Steam Vent

Inch

DN100

Air Cooling Vent

Inch

DN100


Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.4

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

4

Connected Load/Power

Kw

19.75

Overall Dimension(L*W*H)

mm

5700*4000*2800

Weight

Kg

5000





















































Terms:


Terms of Payment:    30% advance payment by T/T upon signing of sales contract
                                  70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.


Delivery:                            60 days after receipt of advance payment.


Installation and Start-up:   TWO technicians will be assigned to coordinate installation,
                                         commissioning and training; cost for flight ticket,
                                         suitable accommodation and additional USD 100/day/each worker fee
                                          will be covered by Buyer,


Warranty:                          12 months limited warranty
                                         starting from date of arrival excluding wear parts.
                                         Shipping cost for parts to be replaced during warranty period
                                         have to be borne by the customer.

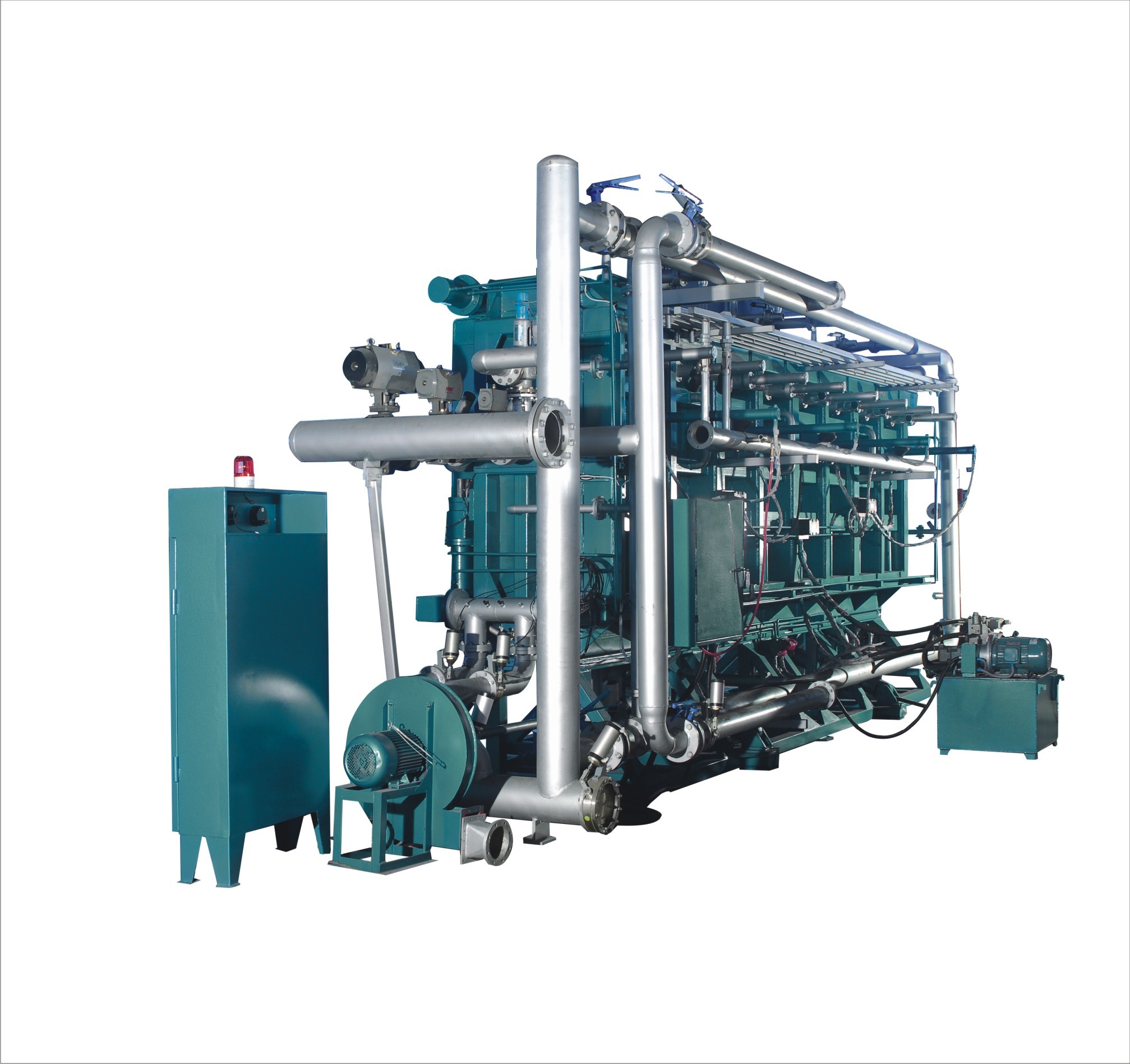

Full Automatic Vacuum EPS Block Machine For Foam Moulding , 20KW
