Automatic Foam EPS Block Moulding Machine With Large Flow Cold Cooling Mode

China Automatic Foam EPS Block Moulding Machine With Large Flow Cold Cooling Mode supplier

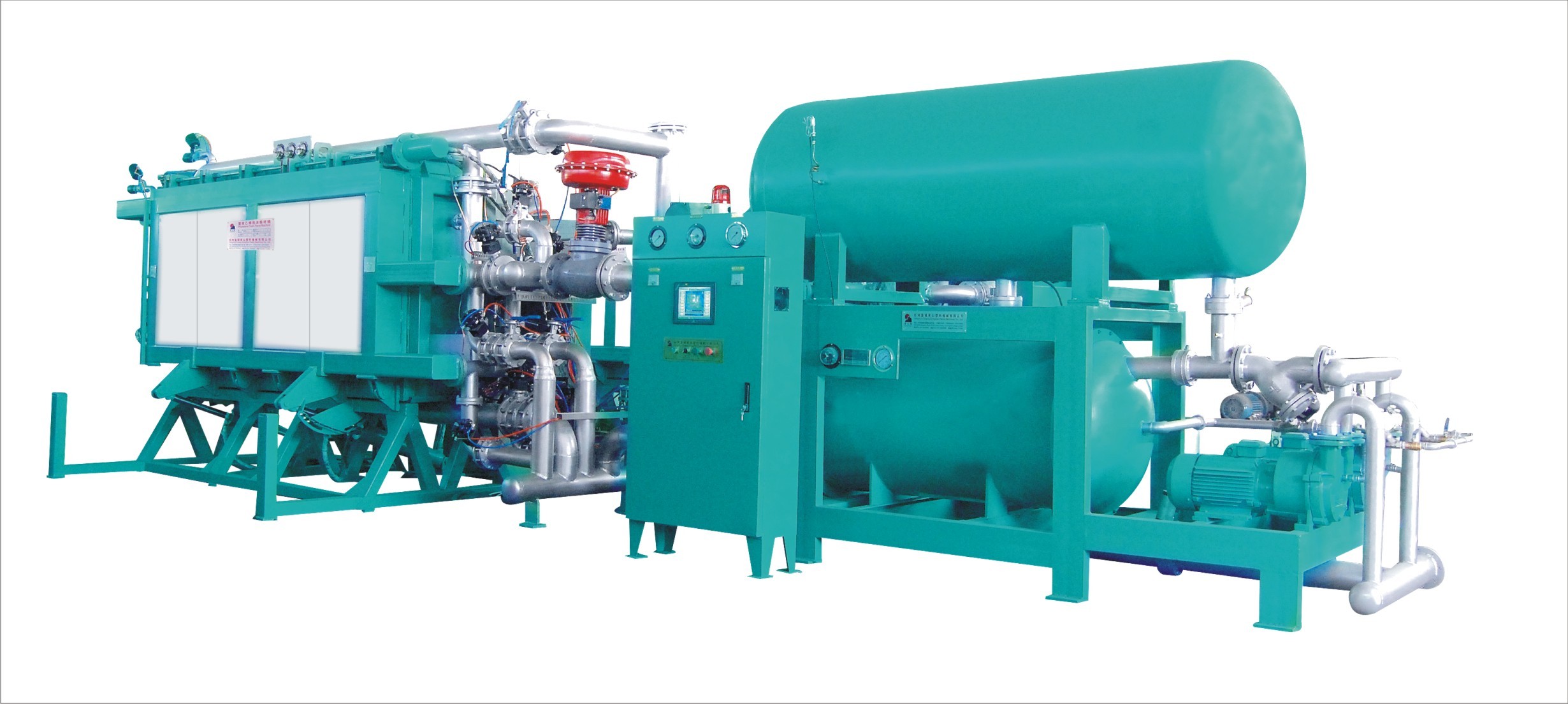

Large Image :  Automatic Foam EPS Block Moulding Machine With Large Flow Cold Cooling Mode

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPCB 301206

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Mould Cavity Size: 3040 *1240 * 630 Mm Steam Entry: 6’’(DN150) Inch
Steam Consumption: 30- 40Kg/Cycle Steam Pressure: 0.6-1.8 Mpa
Compressed Air Entry: DN50 Compressed Air Pressure: 0.5-0.8 Mpa
Drainage Vacuum Drain: DN125 Drainage Down Steam Vent: DN150
Capacity (15g/l): 8 Min / Cycle Connected Load/Power: 19
Overall Dimension(L*W*H): 7200 * 4500 * 3000 Mm Weight: 7500 Kg





Automatic Foam EPS Block Moulding Machine With Large Flow Cold Cooling Mode






1.  Construction Parts for decoration
2.  Heating-Insulation Wall and ceiling
3.  3-D Panel and Sandwich Panel
4.  The Other Application







Application:



The machine adopts PLC Programmable controller and touch screen control,

automatic feeding process,has made material once completed,

to ensure that the machine automatically cycle production2.

The machine uses high quality square tube and welded steel and other groups,

each template through heat treatment and after assembl of samll deformation,

strength and durability.



The machine usesa unique advanced 7 font,

font and steam drainage comprehensive anti seven walks through the heating sequence

to solve the dsappearence of large-size template material heating

temperature areuniformity problems and improve the products and

ripening uniformity degree of cohesion,

reducing steam consumpion,accelerate the speed molding products.



Vacuum suction machine minng abd pilsatingoulsating sequence

of the large flow cold cooling mode ,

accelerate the cooling rate of products,

improve production effenciency products and reduce energy consumption.



Control instruments,electrical,pneumatic components,

valves and other fittings are machine uses high-quality

brand-name products at home and abroad,the machine intobeing rectanular,

flat shape,quality reliable.5.



The machine uses hydraulic station centralized control,hydraulic single door,

hydraulic and automatic jection

release the tight bodies,hus ensuring the smooth operation of the machine,

and reliable performance.



Each foam board production cycle 4-8minutes,production effencicy is high.

Automatic pneumatic feeding speed.



According to the formula of raw materials,particla diameter,

specific gravity and foaming agent and other parameters, set up expert control system,the amount of steam and heating temperature adaptive

 proportional servo Adjust and improve the quality of products

and the degree of automation equipment, simplifying the operation;

set up communication interface,the device is now operational and product quality remote control.





Technical Data:



Item

Unit

SPCB301206

Mould Cavity Dimension

mm

3040*1240*630

Block Size

mm

3000*1200*600



Steam

Entry

Inch

DN150

Consumption

Kg/Cycle

30~40

Pressure

Mpa

0.6-1.8





Compressed Air

Entry

Inch

DN50

Consumption

m³/Cycle

1.2-1.8

Pressure

Mpa

0.5~0.8



Drainage

Vacuum Drain

Inch

DN125

Down Steam Vent

Inch

DN150

Air Cooling Vent

Inch

DN150



Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.3-0.5

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

8

Connected Load/Power

Kw

19

Overall Dimension(L*W*H)

mm

7200*4500*3000

Weight

Kg

7500













































































































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.
