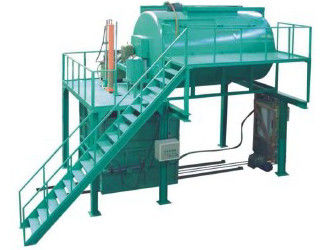

High Effeiciency Sponge Production Line With Steam For Foam Rebounding

China High Effeiciency Sponge Production Line With Steam For Foam Rebounding supplier
High Effeiciency Sponge Production Line With Steam For Foam Rebounding supplier High Effeiciency Sponge Production Line With Steam For Foam Rebounding supplier

Large Image :  High Effeiciency Sponge Production Line With Steam For Foam Rebounding

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTJB-10B(with steam)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-50000/ SET
Packaging Details: packed with pvc film
Delivery Time: 45Days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10SETS PER MONTH
Contact Now
Detailed Product Description
Name: Foam Rebounding Machine Product Size: 2050*1550mm
Product Height: 1000mm Whipping Turning Speed: 40r/min
Stirring Cubage: 10m3 Utmost Work Pressure Of Oil Cylinder: 12000kgs
Continual Foaming: Rebound Foam Total Power: 16.7KW
Overall Dimension: L6000*W3500*H5200mm Application Area: Sponge, Polyurethane Foam, Mattress, Furniture

High Effeiciency Sponge Production Line With Steam For Foam Rebounding









Technical Data:



Type DTJB-10B(with steam)
Stirring Cubage 10m3
Whipping Turning speed 40R/MIN
Utmost work pressure of Oil Cylinder 12000KGS
Molding Tanks L2050*W1550*1000MM
Total Power 16.7KW
Overal Weight 4300KGS
Overall Dimension L6000*W3500*5200MM



Main Description:



It's used for foam blocks that come from foam crusher blown into mixing drum of foam

rebonding machine.




This foam rebonding machine is mainly used for foam blocks that come from foam

crusher blown into mixing drum of form rebonding machine after mixing with adhesive.

The mixture is dropped down into a mould where it goes under hydraulic pressure to

shape boned foam.

Fully automatic device with a steam mold is optional which can make the production

efficiency higher.





Terms of Payment: 30% advance payment by T/T upon signing the contract

                              70% covered by T/T before delivery



Installation and Start-up: 2 technicians will be assigned to coordinate installation,

commissioning and training, cost for flight and suitable accommodation plus USD80/day will be charged additionally.



Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

                Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
