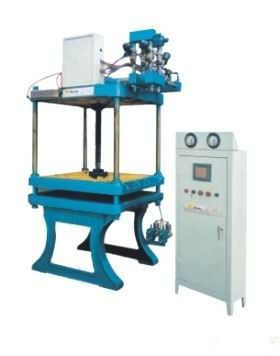

Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H

China Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H supplier
Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H supplier Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H supplier Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H supplier Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H supplier

Large Image :  Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: FAV 1750E

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-40000/ SET
Packaging Details: packed with pvc film
Delivery Time: 50 Days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Mould Dimension: 1800 * 1600 Mm Max Product Dimension: 1650 * 1450 *350 Mm
Stroke: 150 -1200 Steam Entry: 65 MM
Steam Consumption: 6 . 5 Kg / Cycle Cooling Water Entry: 65 MM
Cooling Water Consumption: 80 - 190 Kg / Cycle Compressed Entry: 50 Mm
Compressed Consumption: 2 . 5 M³ / Cycle Drainage: 125 Mm
Vacuum Pump Capacity: 290 M³ / H Connected Load /Power: 11
Weight: 4500 Kg Cycle Time: 100 - 200 S



Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H



1.  automatic product,High thermal efficiency,Low moisture content.

2.  Little noise,Clamping force,High strength.

3.  High production efficiency ,High efficiency heat conduction.

4.  High tensile strength,Long service life,high Penetrating power.

5.  Good adhesion,Use less gas,Rapid prototyping





Application:

  1. The machine vertical layout.Movet in all hydraulic transmission.   Machine aports a smooth, quilc k mould clamping.Clamping force.        Small Mold discouraged under this to work.Save time.
  2. Using a variety of foaming stripping ways to make the aircraft moreeconomical steam    (province than the average machine half),greatly improving the product quality.
  3. Easy to operate,the operater simplyremove the product,you can learn a little inducyion   without training.
  4. This machine adopts the most advanced Taiwanese computer touch screen and                      high-Korea proggrammable controllers,degree of automation,easy to operate.





Technical Data:



Item

Unit

FAV1750E

Mould Dimension

mm

1800*1600

Max Product Dimension

mm

1250*1050*350

Stroke

mm

150-1200



Steam

Entry

mm

65

Consumption

Kg/Cycle

6 . 5





Compressed Air

Entry

mm

50

Consumption

m³/Cycle

2 . 5



Cooling Water

Entry

mm

50

Consumption

Kg/Cycle

50-180

Vacuum Pump Capacity

m³/h

290

Drainage

mm

125

Cycle time

s

100 200

Connected Load/Power

kw

11

Weight

Kg

4500

































































































Terms:



Terms of Payment:     30% advance payment by T/T upon signing of sales contract

                                   70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.



Delivery:                     60 days after receipt of advance payment.



Installation and Start-up:

                                   TWO technicians will be assigned to coordinate installation,

                                   commissioning and training; cost for flight ticket,

                                  suitable accommodation and additional USD 100/day

                                  each work fee will be covered by Buyer,

Warranty:                  12 months limited warranty

                                  starting from date of arrival excluding wear parts.

                                  Shipping cost for parts to be replaced during warranty                                                                                   period have to be borne by the customer.



Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H

Vertical Vacuum EPS Shape Molding Machine Hydraulic Transmission 290 M³ / H
