High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

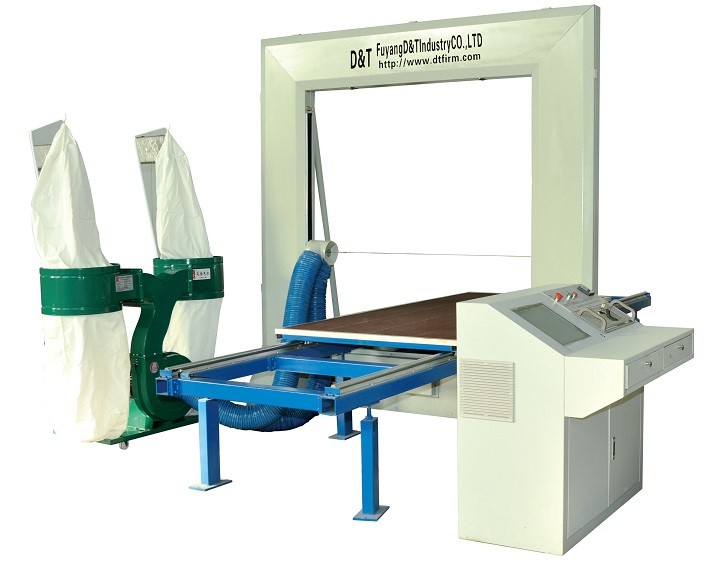

High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter

China High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter supplier
High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter supplier High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter supplier High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter supplier

Large Image :  High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter

Product Details:

Place of Origin: CN
Brand Name: D&T
Model Number: DTC-F1212

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000/SET
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20SETS Per Month
Detailed Product Description
Item: CNC Full Automatic Rigid Foam Cutting Machine Type: DTC-F1212
Product Size: 2500*1200*1000mm Cutting Line Diameter: 1.0-1.5mm
Control System: Industrial Computer Cutting Speed: 0-6m/min(adjusted)
Precision: ±1mm Power: <5.5kw
Weight: 1200kgs Overall Dimension: 6200*2400*2380mm
Name: FOAM CUTTING MACHINE

High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter


 1. Description:


1. High accuracy
2. 0~6m/min cutting speed
3. Suit for all kinds of rigid &flexible foam, such as PU, EPS, PE,PVC, EVA, Rock wool and phenol foams.


Cutting line:   High-speed Abrasive Wire

CNC Fast Wire Contour Cutter is a versatile machine, which uses an abrasive steel wire moving at

high-speed, grinds the material into power and melts powder with producing residual heat under

the high-speed operation,the computer controlling card controls the sliding board and the vacuum adsorption working table or conveyer belt  to run, the cutting process is according to the scheduled

track that the computer draws.





2. Characteristics:

The advantages of programmed-control CNC Fast Wire Contour Cutter initiated by our company as following:

1. Accurate intensity and repeated production without reliance on the operator's techniques;
2. The losses arising from operator's tiredness and his fault is totally eliminated;
3. Efficient production;
4. The expenses are greatly reduced because no need for making ,repairing or storing models;
5. Supports automatic nesting, presentation materials, the maximum level of savings graphics

    processing time and reducing cost of raw materials;
6. Design revision and making model can be immediately completed;
7. A high degree of operational safety devices guarantee have no incident
8. Cutting wire is steelwire,so it can avoid the potential risk of the fire  caused by the size of

    stability and the hotcutting wire which can produce heat.
9. Software is easy to learn, user-friendly, the operatives have no particular skill requirements;





 3. Technical Data of foam cutter machine



TECHNICAL DATA
Type DTC-F1212 DTC-F2012 DTC-F2512
Max. Product Size 2500*1200*1000(mm) 2500*2000*1200(mm) 2500*2500*1200(mm)
Cutting    Line 1.3~1.5mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~6m/min 0~6m/min 0~6m/min
Precision                                                 ±1mm
Power <5.5kw <6.5kw <8.5kw
Vacuum    De-dust Included Included Included
Overall    Weight 1200kg 1500kg 2200kg
Overall    Dimension  6200*2400*2380mm  6200*3200*2800mm  6200*3800*2800mm

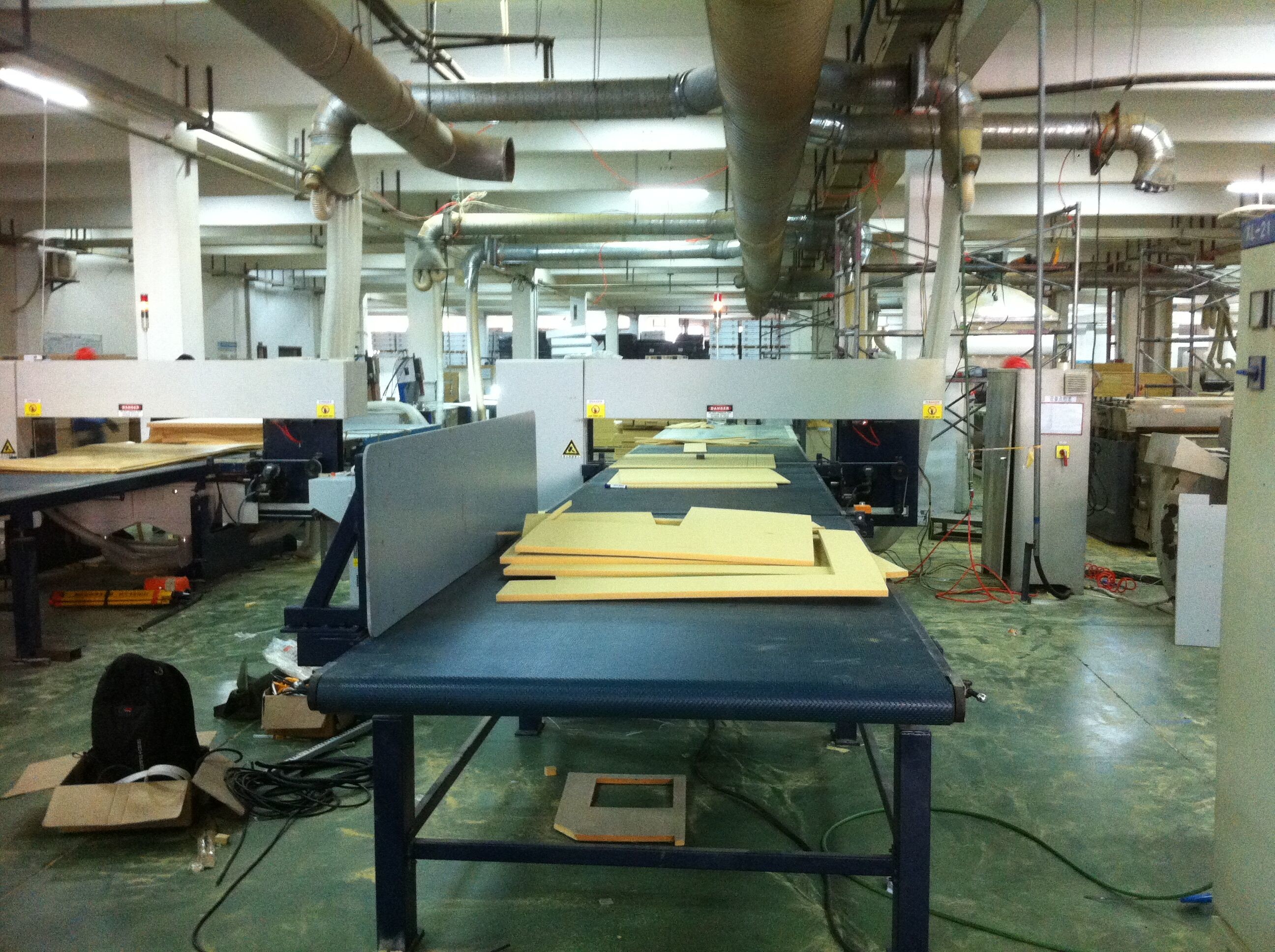

4. Sample for Cutting Product

   High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter

  High Speed Rigid PU Foam Vacuum Cutting Machine Full Automatic , Foam CNC Cutter
