Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW

China Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW supplier

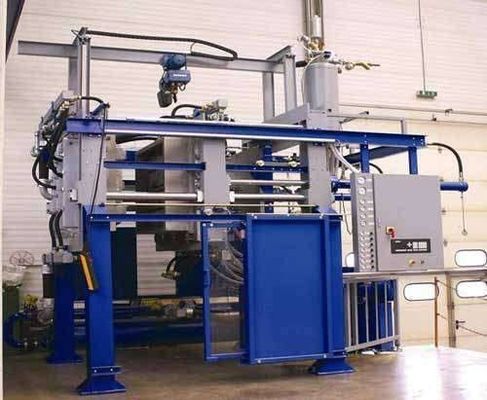

Large Image :  Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: FAV 1400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-60000/ SET
Packaging Details: standard package
Delivery Time: 50 Days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Mould Dimension: 1400 * 1250 Mm Max Product Dimension: 1250 * 1100 *420 Mm
Stroke: 15 -1500 Steam Entry: 4" (DN 100) Inch
Steam Consumption: 6 - 9 Kg / Cycle Steam Pressure: 0.5 - 0.7 Mpa
Cooling Water Entry: 80"(DN 65) Cooling Water Pressure: 0.3 - 0.5 Mpa
Cooling Water Consumption: 50 - 150 Kg / Cycle Compressed Entry: 2" (DN 50)
Compressed Consumption: 1.8m³ / Cycle Compressed Pressure: 0.5 - 0.7 Mpa
Drainage: 6" ( DN 150) Capacity 15 Kg / M³: 70 - 140 S
Connected Load /Power: 12.5 KW Overall Dimension: L 4700 * W 1920 *H 3130 Mm
Weight: 5500 Kg



Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW





Feature:



Variety of heating process,

Variety of  feeding and cooling methods

Auto shape moulding machine



The machine can automatic and efficient carry out

heating , cooling , feeding and ingot stripping process

to adapt to different EPS products.

Various of heating methods can be optionally used as

per the product form so as to ensure the product quality.

A vacuum and negative pressure system can ensure a low water content ,

rapid shaping , and shorer drying period (or without drying) .



Application:



1. The machine adopts PLC programmable controller and touch

    human- machine interface control,advanced foam molding process,

    can produce a variety of products.



2. The machine produced a variety of foam products,

    low power consumption,size and stability.



3. The machine executable automatic,semi-automatic and manual operation started

    in the middle of four operating mode,equipped with safety protecting devices,

   can ensure safe and reliable operation.



4. The machine uese programmable controllers,

    touch human-machine interface.

    Executable computer production control management,

    high degree of automation,simple

    operation,easy maintenance,labor intensity at the end.



5. The machine adopts the international advanced electrical

    and hydraulic intergration,improve the speedof

    molding products,a significant reduction in energy

    consumption and reduce ebvironmental pollution.



6. The machine uses a variety of heating progress,

    a variety of feeding methods and cooling.



7. The machine vacuum system to accelerate the rate of

    product effectiveness,reduce cooling time,

    product  moisture content is low.



8. The machine uses the control instruments,

    electrical,pneumatic components,

    valves and other supporting

    both domestic and foreign high-quality brand-name products.



9. The aircraft complete fault diagnosis and

     motor overload protection system,relay protection,

     and ensure safe operation of the PLC

     and touch human-machine interface.



10.The aircraft FAV1400 type machine mold box

      to Unviversal 1000-1400mm mold,FAV 1750 mold box to

     Universal 1400-1750mm mold.



11.The aircraft can choose mechanical or hydraulic release models.

      Pneumatic de-mould,

      mould moving actuated by two hydraulic cylinders





Technology Data:



Item

Unit

FAV1400

Mould Dimension

mm

1400 * 1250

Max Product Dimension

mm

1250 * 1100 *420

Stroke

mm

150~1500



Steam

Entry

Inch

4’’(DN100)

Consumption

Kg/Cycle

6~9

Pressure

Mpa

0.5-0.7





Cooling Water

Entry

Inch

3’’(DN80)

Consumption

Kg/Cycle

50~150

Pressure

Mpa

0.3-0.5



Compressed Air

Entry

Inch

2’’(DN50)

Consumption

m³/Cycle

1.8

Pressure

Mpa

0.5~0.7

Drainage

Inch

6”(DN150)

Capacity 15Kg/m³

S

70~140

Connected Load/Power

Kw

12.5

Overall Dimension(L*W*H)

mm

4700*1920*3250

Weight

Kg

5500































































































Terms:



Terms of Payment:     30% advance payment by T/T upon signing of sales contract

                                   70% covered by confirmed irrevocable L/C by sight or T/T  before shipping.



Delivery:                     60 days after receipt of advance payment.



Installation and Start-up:

                                   TWO technicians will be assigned to coordinate installation,

                                   commissioning and training; cost for flight ticket,

                                   suitable accommodation and additional USD 100/day

                                   each work fee will be covered by Buyer,

Warranty:                   12 months limited warranty

                                   starting from date of arrival excluding wear parts.

                                   Shipping cost for parts to be replaced during warranty                                                                                     period have to be borne by the customer.





Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW



Full Auto EPS Shape Molding Machine / Machinery Vacuum 12.5KW
