Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

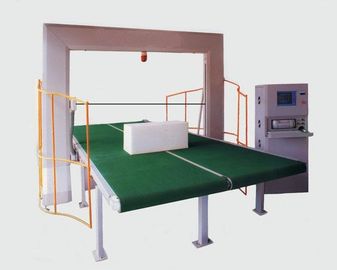

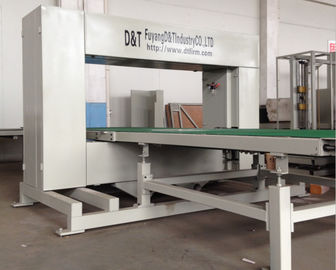

Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine

China Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine supplier
Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine supplier Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine supplier Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine supplier

Large Image :  Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine

Product Details:

Place of Origin: CN
Brand Name: D&T
Model Number: DTC-F1212

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000/SET
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Item: PU Foam Cutting Machine Type: DTC-F1212
Product Size: 2500*1200*1000mm Cutting Line Diameter: 1.0-1.5mm

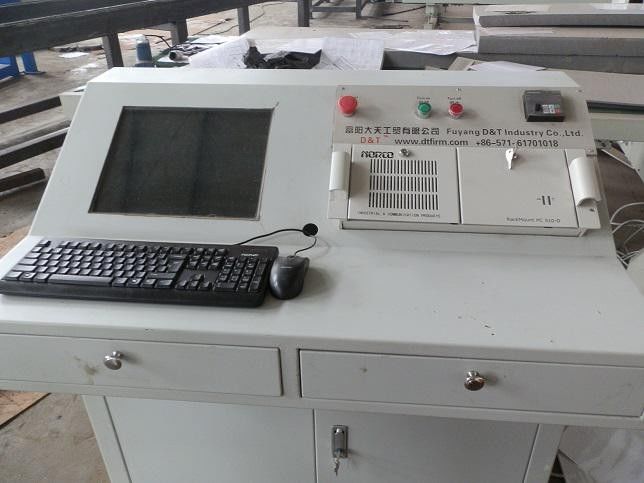

Control System: Industrial Computer Cutting Speed: 0-6m/min(adjusted)
Precision: ±1mm Power: <5.5kw
Weight: 1200kgs Overall Dimension: 6200*2400*2380mm
Name: FOAM CUTTING MACHINE

Fully Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine





1. Specification:



1. It is advanced and fully automatic computerized foam contour cutting machine.
2. Can cut foam into any 2D complex shape.
3. Easy control





This foam cutting machine is most advanced and

fully automatic computerized foam contour cutting machine,

which can cut the various shape by computerized system.




1. This eva foam contour cutting machine is operated by computer

    and use CAD software to design the shape for the foam block.

    Make full use of the foam blocks and

    extremely save the raw material(foam blocks) cost.



2. Besides CAD software, we also design another drawing software

    by our engineers which is very easy to use.

    Operators only need to go through simple computer literacy training.
3. This CNC contour cutter is equipped with wireless

    remote control which makes the operation more humane convenient.
4. Equipped with high precision servo mechanism system;

    Rapid cutting speed and accurate cutting;

    which enhance the working efficiency.
5. 85% of dust will be collected to the

    bag during cutting process and low noise.
6.  Operating system: Windows XP
7.  Designing software: Auto CAD / Self-developed CNC operation Software.
8.  Cutting software: Foam cutting control system



Application



Efficient, economic and practical sponge CNC cutting machine can be used for various types of sponge, PVA, EPE, EPS, phenolic and other materials processing, has been widely used in insulation, packaging, decorative products, such as PU and foam slice, shape processing industries.





 Technical Data of  2D CNC Fast Wire Cutting Machine



TECHNICAL DATA
Type DTC-F1212 DTC-F2012 DTC-F2512
Max. Product Size 2500*1200*1000(mm) 2500*2000*1200(mm) 2500*2500*1200(mm)
Cutting Line 1.3~1.5mm 1.3~1.5mm 1.3~1.5mm
Control System Industrial Computer Industrial  Computer Industrial Computer
Software D&T Profiler D&T Profiler D&T Profiler
Cutting Speed 0~6m/min 0~6m/min 0~6m/min
Precision ±0.5mm ±0.5mm ±0.5mm
Power <5.5kw <6.5kw <8.5kw
Vacuum De-dust Included Included Included
Overall Weight 1200kg 1500kg 2200kg
Overall Dimension 4800*2400*2380mm   4800*3200*2800mm 4800*3800*2800mm

















































Packing:



For the packing, there are a professional team to loading the cargo. and also, we have some

long-term cooperation with the shipping agent who is rich experience of carrier.

So do not worry, it can save money and safe for you.





Our Services





After-sale Service:



1. Our engineers is avilable to oversea for coordinate installation,

    commissioning and training.

    Cost for flight and suitable accommodation plus USD 60 per day

    each person will be charged additionally.



2. Lifetime maintenance free of charge.



3. Free training course at our plant.



4.  24 hours on line service each day, free technical support.



5.  Machine has been adjusted and test before delivery.





Warranty:

        12 months limited warranty starting from date of delivery excluding wear parts.



         shipping cost for parts to be replaced during warranty period

        have to be borned by the customers.





Terms of Paypent: 30% advance payment by T/T upon signing the contract



                                  70% covered by Confirmed Irrevocable Sight L/C



Company Information


Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,

polyurethane cutting machine, quilting machine and foam relation assistant equipments.

Through the research of our engineers,

our cutting machine had connected well with

the popularized CAD and achieved automation and high efficiency,

high accuracy and makes it easy to operate.

We always put the customer on the first place

and make utmost efforts to satisfy

you.We wholeheartedly look forward to developing economic,

technical and trade cooperation with you.

Products: Fast wire cutting machine,

pu cutting machine,

hot wire cutting machine,

eps cutting machine,

quilting machine and so on.





FAQ



1. Q:Are you a factory ?



    A:Yes,We are a manufacturer and doing the foam machines since 2006.



2. Q: Which drawing software do you use?



    A: Auto CAD.



3. Q: Whether your engineer can come to our factory for installation of the machine?



   A: Yes, sure.



4. Q: Can you import DXF files from another source?



   A : yes. Any DXF files is acceptable.



5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?



   A : Yes, include it.



6. Q: What countries have you sold to?



   A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.



7. Q: What safety controls are on the machine?



    A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.



     There are two fence around the cutting frame, the machine will stop when you open the fence.







Welcome visit us!please feel free to contact us for more information!



Automatic Rigid PU Foam Cutting Machine For PIR / EVA Foam Rock Wool Cutting Machine



Cutting material sample



  Pipe section.jpg   IMG_0479.JPG



        PIR Foam         EVA Foam
