Payment & Shipping Terms:
|Model:||DTC-F1212||After-sales Service Provided:||Engineers Available To Service Machine Oversea|
|Max. Product Size:||L2500*W1200*H100mm||Cutting Wire:||0.8~2mm|
|Software:||D&T Profiler||Total Power:||＜5.5kw|
|Weight:||1200kg||Overall Dimension:||L6200*W2400*H2380 Mm|

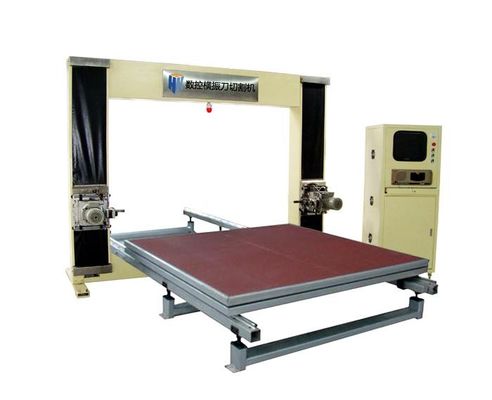

Moved Work Table Vertical Computerized CNC Fast Wire Contour Cutting Machine For Phenol Foam
1. It is advanced and fully automatic computerized foam contour cutting machine.
2. Can cut foam into any 2D complex shape.
3. Easy control
This foam cutting machine is most advanced and fully automatic computerized foam
contour cutting machine, which can cut the various shape by computerized system.
1. This eva foam contour cutting machine is operated by computer and use CAD
software to design the shape for the foam block. Make full use of the foam
blocks and extremely save the raw material(foam blocks) cost.
2. Besides CAD software, we also design another drawing software
by our engineers which is very easy to use. Operators only need
to go through simple computer literacy training.
3. This CNC contour cutter is equipped with wireless remote control
which makes the operation more humane convenient.
4. Equipped with high precision servo mechanism system;
Rapid cutting speed and accurate cutting; which enhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: Foam cutting control system
Technical Data of 2D CNC Fast Wire Cutting Machine
|Max. Product Size||2500*1200*1000(mm)||2500*2000*1200(mm)||2500*2500*1200(mm)|
|Control System||Industrial Computer||Industrial Computer||Industrial Computer|
|Software||D&T Profiler||D&T Profiler||D&T Profiler|
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,
polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant
Through the research of our engineers, our cutting machine had connected well with
the popularized CAD and achieved automation and high efficiency, high accuracy and makes it
easy to operate.We always put the customer on the first place and make utmost efforts to satisfy
you.We wholeheartedly look forward to developing economic, technical and trade cooperation
Products: Fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps
cutting machine, 3D panel production line, concrete spray machine and so on.
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each person will be
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have to be borned by the customers.
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
1. Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2. Q: Which drawing software do you use?
A: Auto CAD.
3. Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4. Q: Can you import DXF files from another source?
A : yes. Any DXF files is acceptable.
5. Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6. Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7. Q: What safety controls are on the machine?
A: There are urgence bottoms on the control box and machine for accident to stop the mahicne.
There are two fence around the cutting frame, the machine will stop when you open the fence.
