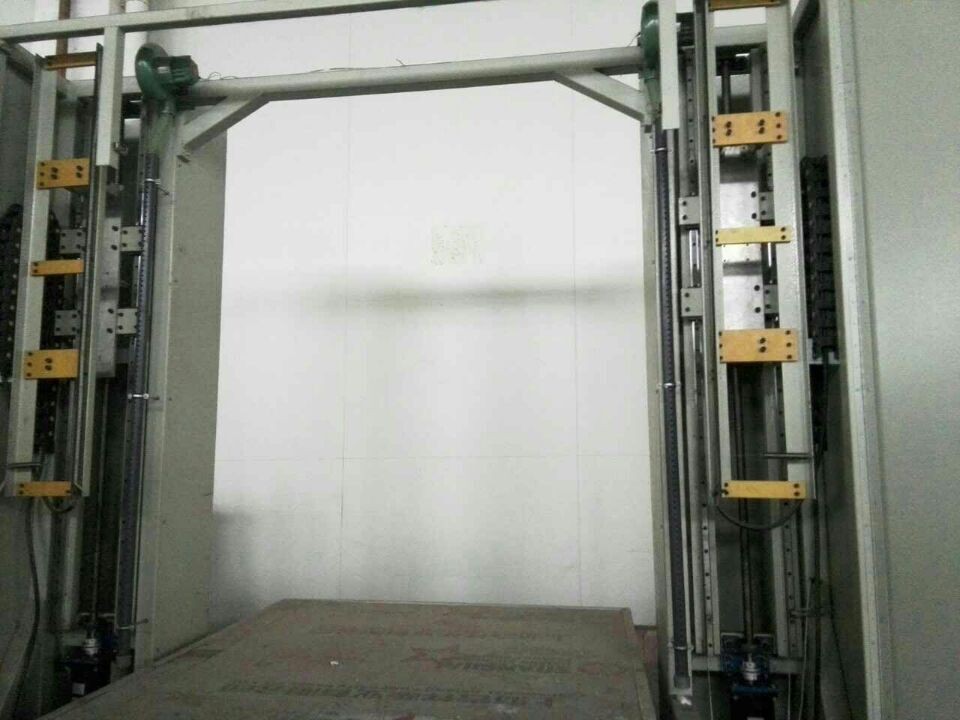

High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter

China High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter supplier
High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter supplier High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter supplier High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter supplier

Large Image :  High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter

Product Details:

Place of Origin: CN
Brand Name: D&T
Certification: ce
Model Number: DTC-E2012

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000~40000/SET
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20SETS Per Month
Contact Now
Detailed Product Description
Item: CNC Polystyrene Foam Contour Cutter Type: DTC-E2012
Product Size: 2000*1300*1000mm Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm Power: 13.5kw,380v,50hz
Weight: 1200kgs Color: As Cliebts Requirement
Name: Eps Cutting Machine Warranty: 1 Year


High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter

styrofoam cutting machine/ eps block cutter/ electric hot wire eps cutter


1. Description Of 2D EPS cutting machine

Suit for: Polystyrene
Cutting line: Hot Wire

D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
THis kind of cutter has one or sevaral cutting lines for different production request.

All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the operator to
obtain the best yield from the foam block.

Hot Wire Contour Cutter has perfect safe system to provide the accident.

It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.



2. Main Introduction:


1.  Two/three-dimensional CNC cutting machine connected by specialized fastenings
     creates stable performance and precise cutting.
2.  Equipped with stepping motor,
     suits to cut the specially designed figures with requirement of adjustable speeds.
    The cutting precision can be 0.5mm.



 3. Technical Data of  2D EPS cutting machine


TECHNICAL DATA
TypeDTC-C2012DTC-E3012DTC-E6012
Max. Product Size2000*1300*1000mm3000*1300*1300(mm)6000*1300*1300(mm)
Cutting    Line0.5~1.2mm
Control    SystemIndustrial    Computer
SoftwareD&T    ProfilerD&T    ProfilerD&T    Profiler
Cutting    Speed0~1.5m/min0~1.5m/min0~1.5m/min
Precision                                                ±1mm
Power13.5kw, 380v, 50hz14.5kw, 380v, 50hz14.5kw, 380v, 50hz
Overall    Weight1200kg1500kg2000kg



























After-sale Service:

1. Our engineers is avilable to oversea for coordinate installation,
    commissioning and training.
    Cost for flight and suitable accommodation plus USD 60 per day
    each person will be charged additionally.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4.  24 hours on line service each day, free technical support.

5.  Machine has been adjusted and test before delivery.

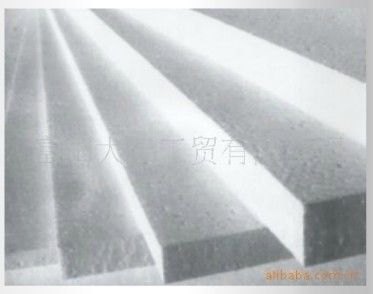

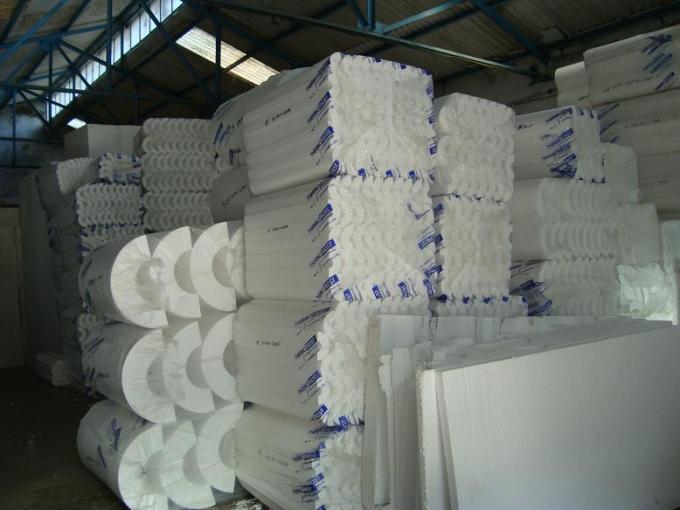

4. Sample for Cutting Product


High Technical Hot Wire CNC Foam Cutter , Polystyrene Foam Contour Cutter
