3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam

China 3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam supplier
3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam supplier 3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam supplier 3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam supplier 3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam supplier

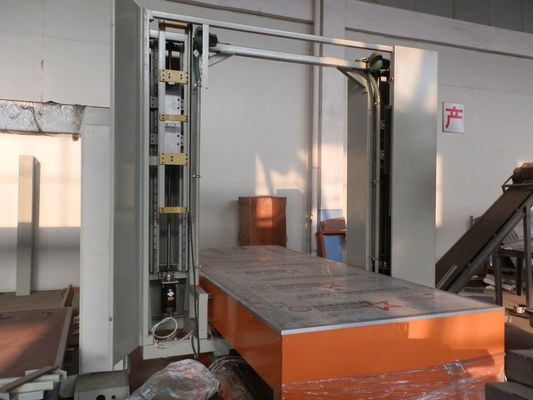

Large Image :  3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam

Product Details:

Place of Origin: CN
Brand Name: D&T
Certification: CE
Model Number: DTC-E2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 20000~40000 / SET
Packaging Details: packed with pvc film and epe into 20/40 container
Delivery Time: 25 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Item: CNC EPS Foam Cutting Machine Type: DTC-E2012
Product Size: 6000*2000*1000mm Cutting Line Diameter: 0.35-1.2mm
Control System: Industrial Computer Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm Power: 14.5kw,380v,50hz
Weight: 2000kgs Color: Customized
Name: Eps Cutting Machine Warranty: 1 Year

3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam





polystyrene foam cutting machine/styrofoam cutting machine/

eps block cutter/ electric hot wire eps cutter



1. Main Introduction:


1 Main frame: aluminum alloy profile connected by special joints with stable function and performance, reasonable structure, high precision,
easy and convenient operation which can save time, strength and raw material.

2 Full automatic industrial control system

3 Draw all kinds figures with CAD/CAM on computer and cut directly,
or can cut after the cutting file is run from U-disc.

4 With convenient operating interface, the machine can display the parts to the cut,
follow the cutting path as well as their respective status
such as limits, alarm, operation conditions of each axis, etc.


5 With high strength and stability mechanical design,
the machine can work smoothly with numerical control system
and there is no need to adjust.

6 The machine has double track notion design with high precision, which is durable.





2. Description Of 2D EPS cutting machine



Suit for: Polystyrene

Cutting line: Hot Wire



D&T series 2D EPS cutting machine is a special cutting machine,

which is for complex shapes of EPS products.

THis kind of cutter has one or sevaral cutting lines for different production request.



All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process and enables the operator to

obtain the best yield from the foam block.



Fast Wire Contour Cutter has perfect safe system to provide the accident.



It includes: All Motor will stop when the safety door be opened;

Exigency button on both machine and control box for accident;

brake system when cutting line broken.







 3. Technical Data of  2D EPS cutting machine



TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.35~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Precision                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg







4. Company Information



Hangzhou Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,



polyurethane cutting machine, quilting machine,mattress spring coiling machine  and foam relation assistant



equipments. Through the research of our engineers, our cutting machine had connected well



with the popularized CAD and achieved automation and high efficiency, high accuracy and



makes it easy to operate.We always put the customer on the first place and make utmost efforts



to satisfy you.We wholeheartedly look forward to developing economic, technical and trade



cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting



machine, eps cutting machine, quilting machine and so on.

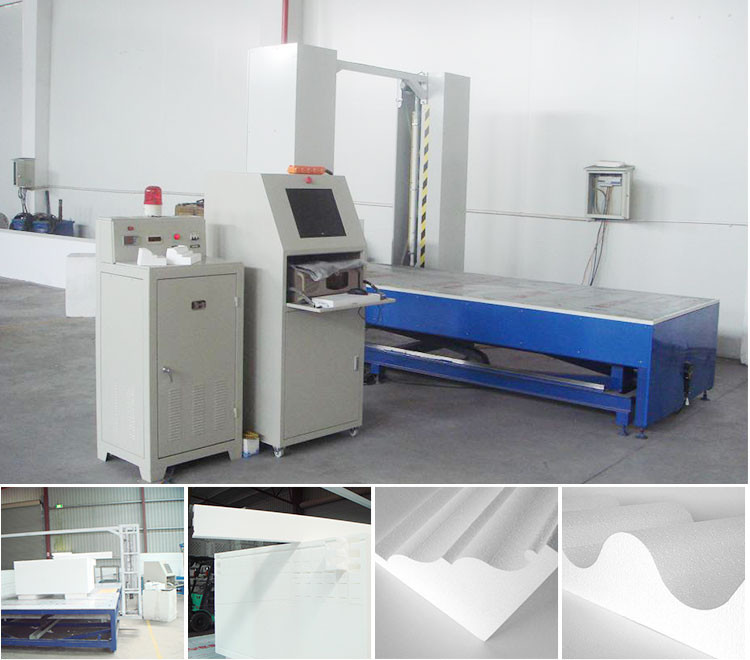

5. Samples for Cutting Product



3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam  3D Hot Wire CNC Foam Cutter Full Automatic For Polystyrene Foam
