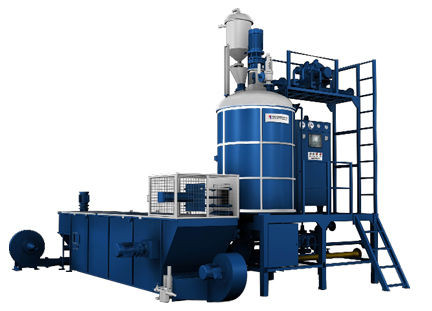

High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³

China High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³ supplier
High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³ supplier High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³ supplier

Large Image :  High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: FDS930A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Expansion Chamber Diameter: Dn1100 Expansion Chamber: 1.0 M³
Expansion Chamber Volume: 1.4 M³ Steam Entry: 2’’(DN50) Inch
Steam Consumption: 6-8 Kg/Cycle Steam: 0.6-0.8 Mpa
Compressed Air Entry: 2’’(DN50) Compressed Air: 0.5-0.8 Mpa
Drainage Upper Drain Port: 4’’(DN100) Drainage Lower Drain Port: 3’’(DN80)
Capacity (10g/l): 320 Capacity (15g/l): 550
Capacity (20g/l): 750 Capacity (30g/l): 850
Connected Load/Power: 17.5 Kw Expaned Density: 10-40 M³
Density Tolerance: ±3% Overall Dimension(L*W*H): 2900*4500*5900 Mm
Weight: 3200 Kg

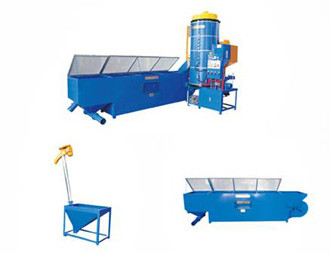

High Effeiciency EPS Pre-expander Machine / Polystyrene Machine 40 m³





Feature:



Brief introduction of  pre-expanded eps beads machine:
(1)   It is the batch kind pre-expanded eps beads machine.
(2)   Usage of pre-expanded eps beads machine:

       used to make styrofoam expanded polystyrene beads for eps products making.

       Most popular one is eps blocks and eps panels for buidling&construction.
      (all data is from China domestic market):
For building& construction insulation, density is about 15-18 kg/m3.
For sandwich panels’ core, eps panels’ density is around 5-15 kg/m3.







Application:

 1. The machine is suitable for high altitude areas of foam production,

      play a pressure foaming machines superiority.

  (In the same environment Continuous Pre machine productivity is very low.)

2. The machine adopts PLC programmable controlloer and touch screen control,

   automatic feeding,

    automatic electronic measurement,

    automatic contorl of temperature and pressure,

    dry barrel drums,

    etc.,have made the material once completed,

    to ensure that the machine automatically cycle of production.
3. The use of electronic weighing systems,

    photoeletric material level control system,proper grasp

    bulk density foam material,

    so that a uniform density foam beads after each error is less than 3% or less.
4.  Barrel body temperature and vapor pressure,

    the use of advanced high-precision

    Japanese pilt valve control,

    ensure that the pressure relief valve outlet is always constant,

    ensure that the temperature inside the tank advance machine control within ±1% °c of,

    so as t ensure the consistency of raw EPS issued prevent EPS material

    because the temperature control is not good agglomeration.

5.  Automatic vacuum feeding device,electronic weighing devices,

    combined with level switch to achieve the automatic feeding,

    improved production efficiency,reduce labor inensity.

6.  The barrel constant use of closed foam,high thermal efficiency,

      save steam energy than the

     continuous advance machines save more than 50%.

     The aircraft is equipped with a high quality

     enclosed hot air drying system,

     good raw material in the barrel body hair dry,

     without going through

     along curing dry bed.

     Weighing system on top of the barrel,

     so the small footprint and compact machine structure.
7. The machine uses electrical,pheumatic components,valves,etc.

    are well-known brand products,

     thus ensuring the operation of the machine stability,

     reliability and long service life.
     Automatic discharge barrel using compressed air to blow the material ,

     increase the feed rate.
8.  The computer has a memory function,

     can often use the EPS raw material manufacture brands,

     specifications,foaming process,

     all parameters can be recorded in the computer.

     When you need to use the manufacturers of raw materials used in the past,

     you just press a computer touch screen can quickly go back to the original process.


Technical Data:



Item

Unit

FDS1100B


Expansion Chamber

Diameter

mm

Dn1100

Volume

1.4

Usable Volume

1.0


Steam

Entry

Inch

2’’(DN50)

Consumption

Kg/Cycle

6-8

Pressure

Mpa

0.6-0.8


Compressed Air

Entry

Inch

2’’(DN50)

Consumption

m³/Cycle

0.9-1.1

Pressure

Mpa

0.5-0.8


Drainage

Upper Drain Port

Inch

4’’(DN100)

Lower Drain Port

Inch

4”(DN100)

Lower Drain Port

Inch

3’’(DN80)

Material Conveying Line

Inch

6’’(DN150)




Capacity




10g/l

320

15/g

550

20g/l

750

30g/l

850

Connected Load/Power

Kw

17.5

Expaned Density

10-40

Density Tolerance

%

±3%

Overall Dimension(L*W*H)

mm

2900*4500*5900

Weight

Kg

3200


























































Terms:

Validity:                      60 days
Terms of Payment:    30% advance payment by T/T upon signing of sales contract
                                 70% covered by confirmed irrevocable L/C by sight or T/T before shipping.
Delivery:                    60 days after receipt of advance payment.
Installation and Start-up:

                                 TWO technicians will be assigned to coordinate installation, commissioning

                                  and training;  cost for flight ticket,

                                  suitable accommodation and additional USD 100/day/each work fee

                                  will be covered by Buyer,

Warranty:                   12 months limited warranty
                                   starting from date of arrival excluding wear parts.
                                   Shipping cost for parts to be replaced during warranty

                                   period have to be borne by the customer.
