4 min / cycle EPS Block Moulding Machine Adjusting High Performance

China 4 min / cycle EPS Block Moulding Machine Adjusting High Performance supplier

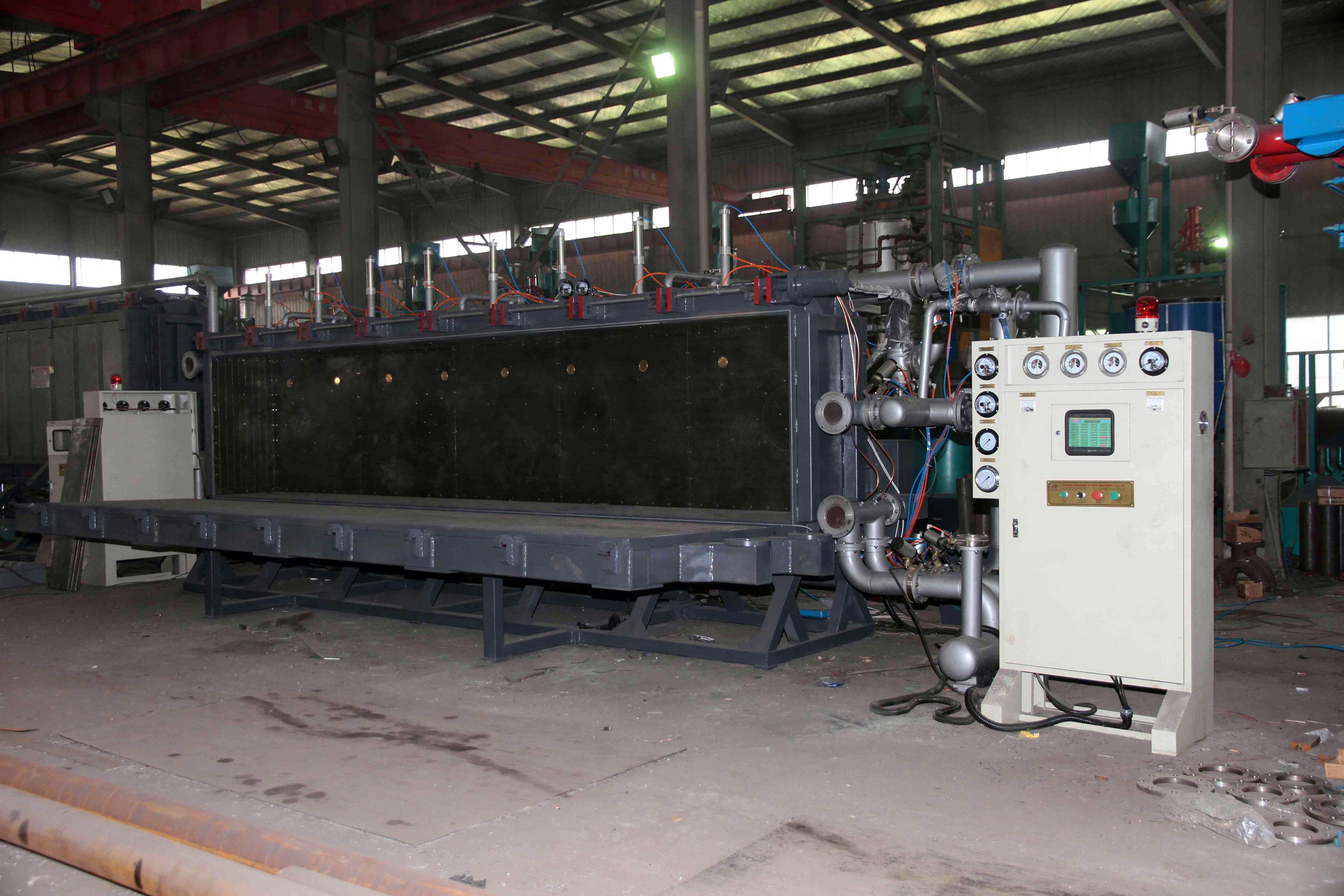

Large Image :  4 min / cycle EPS Block Moulding Machine Adjusting High Performance

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPB 2000 V

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Mould Cavity Size: 2050 *1240 * 630 Mm Steam Entry: 6’’(DN150) Inch
Steam Consumption: 25- 45Kg/Cycle Steam Pressure: 0.6-0.8 Mpa
Compressed Air Entry: DN 40 Compressed Air Pressure: 0.6-0.8 Mpa
Drainage Vacuum Drain: DN100 Drainage Down Steam Vent: DN150
Capacity (15g/l): 4 Min / Cycle Connected Load/Power: 23.75
Overall Dimension(L*W*H): 5700 * 4000 * 3300 Mm Weight: 8000 Kg

4 min / cycle EPS Block Moulding Machine Adjusting High Performance







Adopts high quality rectangle steel pipe which features in reasonable structure,

firm, high intension, without deformation.

Equipped with horizontal, vertical and block cutting equipment.

Stable movement, precise cutting size and adjustable. Realize three directions cutting.



Application:



1.  The machine adopts PLC programmable controller

     and touch human-machine interface control ,

     automatic feeding,automatic control feeding progress,

     has formed a complete guarantee  automatic

     cycle of production equipment.

2.  The machine uses high quality square tube

      and welded steel and other groups,

      each Template through heat treatment and

     after assembly of small deformation,strength and durability.

3.   The machine uses a unique heat penetration of

      advanced foreign EPS molding process,

      penetrating ability,good adhesion,good product quality,

     significant energy saving features.





Technology Data:



Item

Unit

SPB2000VS

Mould Cavity Dimension

mm

2050*1240*630

Block Size

mm

2000*1200*600



Steam

Entry

Inch

DN50

Consumption

Kg/Cycle

25~45

Pressure

Mpa

0.6-0.8





Compressed Air

Entry

Inch

DN40

Consumption

m³/Cycle

1.5~2

Pressure

Mpa

0.6-0.8



Drainage

Vacuum Drain

Inch

DN 100

Down Steam Vent

Inch

DN150

Air Cooling Vent

Inch

DN100



Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.6

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

4

Connected Load/Power

Kw

23.75

Overall Dimension(L*W*H)

mm

5700*4000*3300

Weight

Kg

9500































































































Terms:



Validity:                            60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or

                                         T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.
