Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle

China Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle supplier

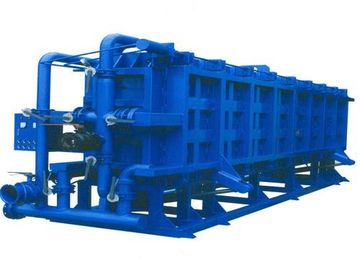

Large Image :  Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: SPB 4000 V

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-50000 / Set
Packaging Details: Film + Woden Box
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Mould Cavity Size: 4100 *1240 * 630 Mm Steam Entry: 6’’(DN150) Inch
Steam Consumption: 60- 85Kg/Cycle Steam Pressure: 0.6-0.8 Mpa
Compressed Air Entry: DN 50 Compressed Air Pressure: 1.8- 2.5 Mpa
Drainage Vacuum Drain: DN125 Drainage Down Steam Vent: DN150
Capacity (15g/l): 7 Min / Cycle Connected Load/Power: 28.5
Overall Dimension(L*W*H): 11000 * 4500 * 3500 Mm Weight: 1500 Kg





Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle





Application:



1. The machine adopts PLC programmable controller

    and touch human-machine interface control ,

    automatic feeding,automatic control feeding progress,

    has formed a complete guarantee automatic

    cycle of production equipment.

2. The machine uses high quality square tube

    and welded steel and other groups,each Template

    through heat treatment and after assembly of

    small deformation,strength and durability.

3. The machine uses a unique heat penetration

   of advanced foreign EPS molding process,

    penetrating ability,good adhesion,good product quality,

   significant energy saving features.



Technical Data:



Item




4000*1240*630

Block Size

mm

4000*1200*600



Steam

Entry

Inch

DN150

Consumption

Kg/Cycle

60 - 85

Pressure

Mpa

0.6-0.8





Compressed Air

Entry

Inch

DN40

Consumption

m³/Cycle

1.8~2.5

Pressure

Mpa

0.6-0.8



Drainage

Vacuum Drain

Inch

DN 125

Down Steam Vent

Inch

DN150

Air Cooling Vent

Inch

DN150



Vacuum Cooling Water

Entry

Inch

DN40

Consumption

Kg/Cycle

0.8

Pressure

Mpa

0.2-0.4

Capacity @15Kg/m³

Min/cycle

4

Connected Load/Power

Kw

23.75

Overall Dimension(L*W*H)

mm

5700*4000*3300

Weight

Kg

9500







































































































Terms:



Validity:                             60 days

Terms of Payment:           30% advance payment by T/T upon signing of sales contract

                                         70% covered by confirmed irrevocable L/C by sight or

                                          T/T  before shipping.

Delivery:                            60 days after receipt of advance payment.

Installation and Start-up:   TWO technicians will be assigned to coordinate installation,

                                         commissioning and training; cost for flight ticket,

                                         suitable accommodation and additional USD 100/day/each worker fee

                                          will be covered by Buyer,

Warranty:                          12 months limited warranty

                                         starting from date of arrival excluding wear parts.

                                         Shipping cost for parts to be replaced during warranty period

                                         have to be borne by the customer.





Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycleHydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle

Hydaulic EPS Block Moulding Machine With Single Door , 7 min / cycle
