Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit

China Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit supplier
Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit supplier Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit supplier Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit supplier

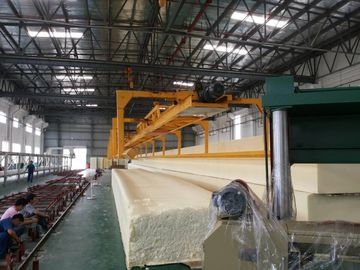

Large Image :  Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: DTPUF-2400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30000~80000/SET
Packaging Details: packed with PVC film and load into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 SETS PER MONTH
Detailed Product Description
Name: Long Foam Crane Unit Overall Dimension: 34m*4.55m*3.2m
Product Height: Max. 1200mm Product Width: 1200mm~2300mm (adjutable)
Density: 10Kg/m³~50Kg/m³ Capacity: 2000mm/min~7000mm/min
Maximum Capacity: 200~300L/min Foaming Model: Full Automatic
Total Power: 130kw Raw Material: PPG, TDI, MC, A33, T9, Silicone Oil, H2O, Pigment, Ect
Application Area: Sponge, Polyurethane Foam, Mattress, Furniture

Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit







A. specifications of each component:



1.  Stirs mix rack and spongy control platform                4m×3.2m×3.2m(L×W×H)

2.  Drop board of drying tunnel                                       17.5m×2.4m×1.2m(L×W×H)

3.  Side link joint of drying tunnel                                    17.5m×2.4m×1.2m(L×W×H)

4.  Rack of drying oven                                                   16.9m×4.55m×3.2m(L×W×H)

5.  Level transportation line in the drying tunnel              17.5m×2.4m×0.8m(L×W×H)

6.  The width of sponge wadding for cutting machine        2.4m×1.30m (W×H)

     (Undercut type)





B. main technical specifications and functions:



1.  Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)

2.  Quantity of component of foaming material: 13

3.  Product Width: 1200mm~2300mm

4.  Product Height: ≤1200MM

5.  Density: 10Kg/m³~50Kg/m³

6.  Capacity: 2000mm/min~7000mm/min

7.  Maximum capacity: 200~300L/min

8.  Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)

                                     2). trough type (match 2 foaming troughs: W1550mm/w2100mm)

9.    Membrane lift installment (Flat topping function)

10.  Announcing arrestor for material lack( foaming protect function)

11.  Drop board of drying tunnel operated height and width by electrically

12. Transportation line of side link joint of drying tunnel operated height and width by electrically

13. The body paper and film put away automatically

14.  Easy to change the two mix stirs (Φ100mm) and pre-mixer

15.  The Method to control expanding:

       1).Control by PLC, kinds of different types of sponge continuously once

       2).Entire transducer control, production line synchronization;

16.  The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).

17.  The electrical machinery power of mix stirs: 37kw

18.  Total Power: 130kw





C.  Instruction of Main Disposition and Material



1.  Raw Material Pot (Atmospheric pressure)



Type

Usage

Specification

Quantity

Big pot

PPG

6m³/δ 5mmA3 Carbon Steel with constant temperature

1

Big pot

PPG+ Powder,

white oil

4m³/δ 5mmA3 Carbon Steel with constant temperature system

2

Big pot

TDI

4m³/δ 4mm Stainless Steel, stirs with constant temperature

1

Big pot

MC

2m³/δ 3mm Stainless Steel, with constant temperature

1

Pot

Water

400L/δ 1.5mm Stainless Steel,with Automatic water-adding system and water filter

1

Pot

Silicon Oil, Fireproof,

 Black

200L/δ 1.5mm Stainless Steel

3

Pot

Amine, Stannum,

Color Matter

120L/δ 1.5mm Stainless Steel

4

Pot



Stone powder stirs

1.0m³/δ  3mm/A3 steel strap stirs

1

Pot

MC

118L standard pot

1

















































Description:



This machine is mostly used for producing of soft urethane foam rubber

productions(density is about 10-50kg/m³).

It’s automaton-action level is high.the production

is low low cost and the operation is simple.It is desirable

equipment to manufacture products of foam rubber in furniture,

shoes,circumference,electron clothing

andautomobile industry.





Terms of Payment: 30% advance payment by T/T upon signing the contract

                              70% covered by T/T before delivery or sight confirmed L/C.

Installation and Start-up:

                       2 technicians will be assigned to coordinate installation,

                       commissioning and training,

                       cost for flight and suitable accommodation

                        plus USD60/day will be charged additionally.



Warranty:  12 months limited warranty.

                  Starting from date of delivery excluding wear parts.

                  Shipping cost for parts to be replaced

                  during warranty period have to be borne by the customer.

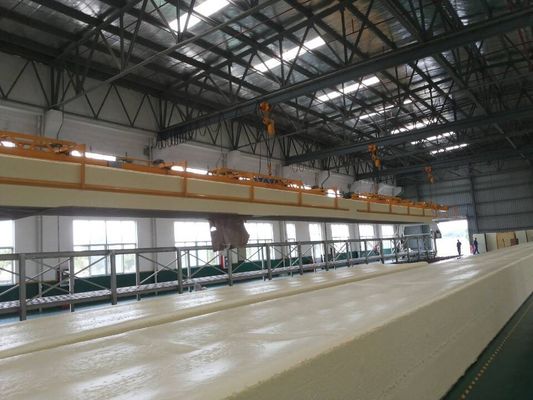

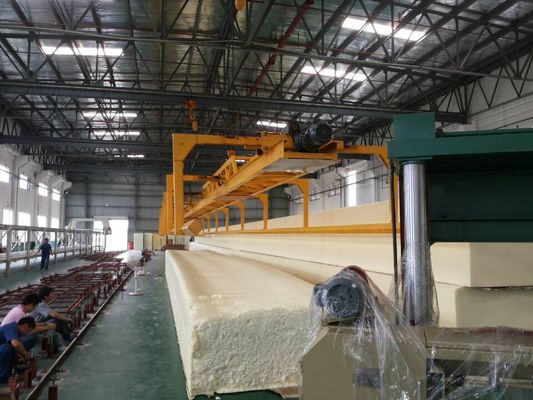

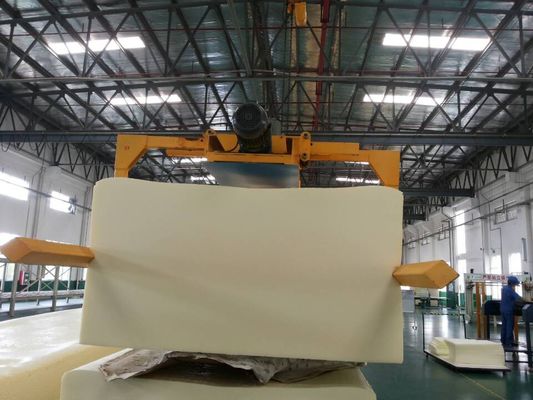

Full Automatic Horizontal Continuous PU Foam Production Line Long Foam Crane Unit
