CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min

China CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min supplier
CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min supplier CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min supplier CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min supplier

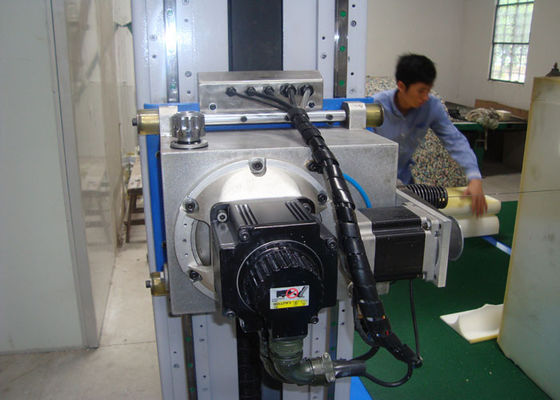

Large Image :  CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2512

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD30000-80000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×2500×1200mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 8.5kw 380V 50HZ Weight: 2500kg

DTC-S2512  L2500 W2500 H1200 mm CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min​







Application:



Polyurethane, PU soft foam, sticky foam, latex,

basotect, composite foam, frame foam, polyethylene.





Description:



The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter

which suitable flexible foam.

The blade cut with high speed vibrating,

so that it will work faster and the product will be smoother. Specially

no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process

and enables the operator to obtain the best yield from the foam block.



Advantage:



Worktable:plat working table, moving table (could select)



Specification:



Model

DTC-S2512

Control System

Industrial Computer

Max. Product Size

2500×2500×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

8.5kw 380V 50HZ

Weight

2500kg







Software question:



1. Q: what kind of CAD software the machine uses?

A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2. Q: about the CAD software, what's its name?

    A: The name is Auto CAD Software



3. Q: where do you sell your machines mostly? which countries?

    A: our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types



4. Q: the operating system which you use is windows, right?

        what kind of windows? XP? or Windows 7?

    A: Yes ,it is Windows XP.

        When operated,Our machine doesn't need to use network

        We usually use XP for its stability.Also windows 7 is OK.



5. Q: is your software licensed or it's illegal? ("cracked")

    A: our own profiler cutting software is develop by ourselves. It is origina

    Q: but the auto-cad and the windows? the auto-cad and the windows are original too

         I am asking this question because our company use only licensed software

    A: windows is licensed; AutoCAD is testing type.

        our machines do not include the licensed AutoCAD

        if you have any drawing software, you can make the DXF file.



6. Q: the differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade

        Cutting Machine.

    A: First,Fast wire cutters use high -speed abrasive wire

        and Oscillating Blade cutters use high-speed ,

        toothed blade.

 Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.

  and for soft foam material,

 the better cutter is Oscillating Blade CNC cutter.

 Thirdly,fast wire CNC cutters also can cut soft material.

 but the dust from the soft material needs an

 extra dust pelletizing system and the soft material also is not good for the fast wire cutter itself.

7. Q: For reputation and website:

    A: for the reputation ,we are 8 years golden supplier on Alibaba.

        And our engineers have researched our machine more and improved it better and better.

       We  promise our machine will be as good as we told.

      Even we keep 10% for the guarantee until to

      install the machine well and the client satisfy with our machine.

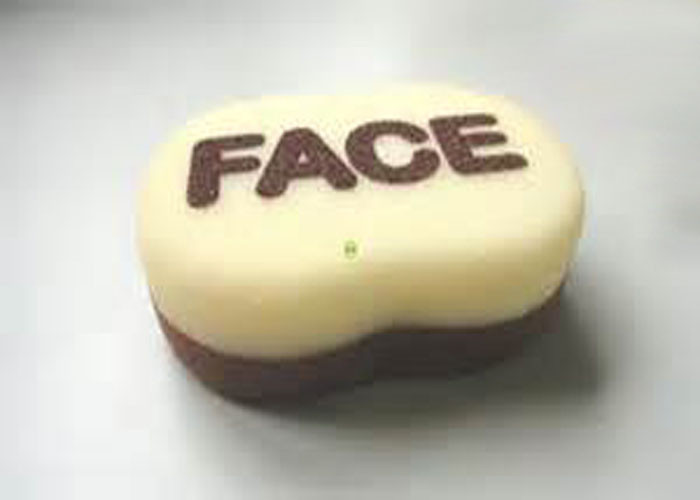

Finished Product:



CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min       CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min       CNC Sponge cutting Machine For Sticky Foam , PU Soft Foam 5m / min
