Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm

China Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm supplier
Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm supplier Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm supplier Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm supplier

Large Image :  Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm

Product Details:

Place of Origin: CN
Brand Name: D&T
Model Number: DTC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD15000-80000/SET
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Detailed Product Description
Item: Floral Foam Cutting Machine Type: DTC
Product Size: L1450*W1450*H1200mm Cutting Line Diameter: 1.0-1.5mm
Control System: Industrial Computer Cutting Speed: 0-6m/min(adjusted)
Precision: ±1mm Power: <5.5kw
Weight: 1200kgs Overall Dimension: 6200*2400*2380mm
Name: FOAM CUTTING MACHINE

Customized Floral Foam CNC Cutting Machine PLC Control 1.0 - 1.5mm





It is a PLC control floral foam cutting machine

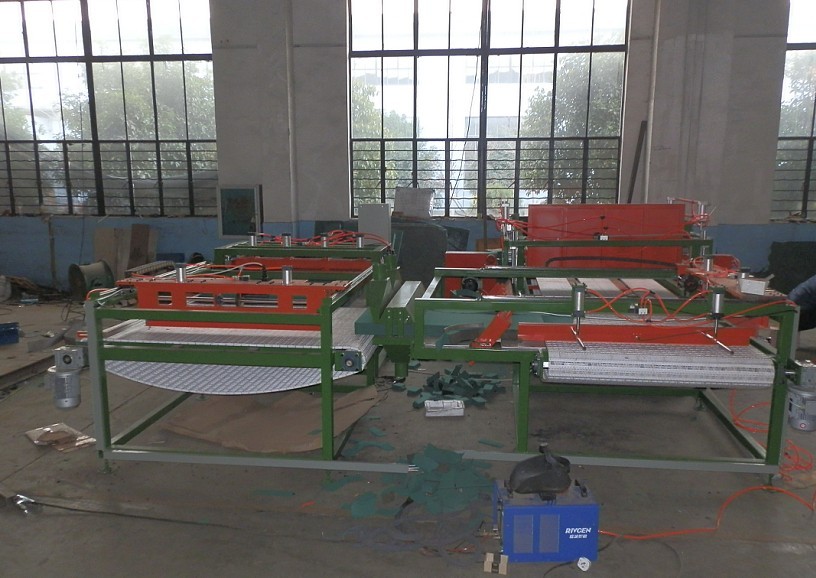

The whole cutting line is composed as follows:

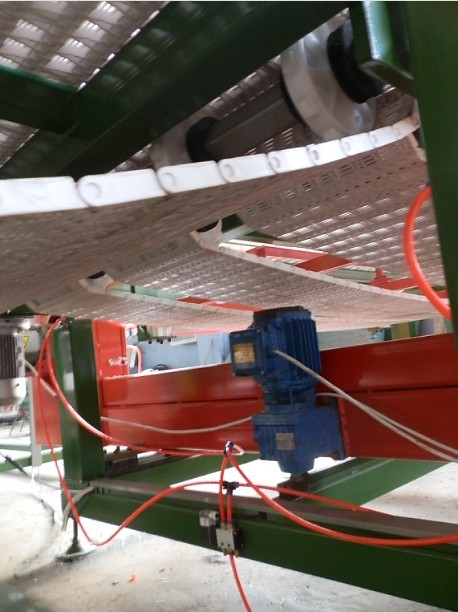

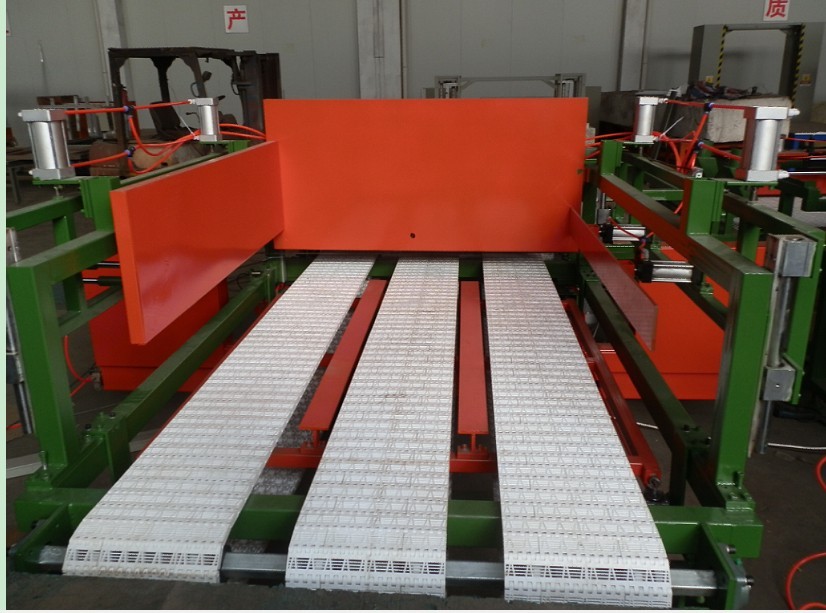

     A Belt Conveyor

(1)  2500mm length, 1200 width for floral foam Block

transporing after  cutting.

 It is driven by an AC motor.

It has two pneumatic holding systems.

 A mobile horizontal cutting station

(2)  for horizontal cutting.

 It is used to cut the foam block

to requestd thickness which is 80mm.

The whole horizontal cutting frame is driven

by an AC   motor which driven by an inverter.

A Belt Conveyor  (3) 1800mm length, 1

200 width for floral foam block transport.

It keeps same speed and action with (1) belt conveyor.

A vertical cutting station (4) for vertical cutting.

It can cut the floral foam

boards 1450mm*1450mm*80mm to be

1450mm*230mm*80mm and trimming two sides.

It has the de-dust system to take the dust during cutting away.

A Belt Conveyor

(5) 1800mm length,

1500 width for floral foam block transport.

 It is driven  by an AC motor.

 A vertical cutting station

(6)  for vertical cutting.

 It can cut the floral foam boards

1450mm*   230mm*80mm to be 110mm*230mm*80mm

and trimming two sides. It has the  de dust system

to take the dust during cutting away.

 A pneumatic marking system

(7)  for stamp marks on the final product. It can press down with

logo molds automatic.

  A Belt Conveyor

(8)  for final product which size is 110mm*230mm*80mm tranport out.



Company Information


Fuyang D&T Industry CO., LTD.

Specializes in manufacturing CNC foam Cutting machine,

polyurethane cutting machine, quilting machine,

and foam relation assistant equipments.

Through the research of our engineers,

our cutting machine had connected well with

the popularized CAD and achieved automation and high efficiency,

high accuracy and makes it easy to operate.

We always put the customer

on the first place and make utmost efforts to satisfy

you.We wholeheartedly look forward to developing economic,

technical and trade cooperation with you.

Products: Fast wire cutting machine,

pu cutting machine,

hot wire cutting machine, eps

cutting machine,

quilting machine and so on.



Technical Data



Max. Block Size L1450*W1450*H1200mm
Final Product Size  L110*W230*H80mm
Total Power Approx. 9kw
Cutting Speed 0~6m/min adjustable
Compress Air 6 Bar


















































Packing:



For the packing, there are a professional team to loading the cargo.

and also,

we have some long-term cooperation with the shipping agent

who is rich experience of carrier.

So do not worry, it can save money and safe for you.





Our Services



After-sale Service:



1. Our engineers is avilable to oversea for coordinate installation,

    commissioning and training.

    Cost for flight and suitable accommodation

    plus USD 60 per day each person will be charged additionally.



2. Lifetime maintenance free of charge.



3. Free training course at our plant.



4. 24 hours on line service each day, free technical support.



5. Machine has been adjusted and test before delivery.





Warranty:



12 months limited warranty starting from date of

delivery excluding wear parts.

shipping cost for parts to be replaced

during warranty period have to be borned by the  customers.





Terms of Paypent:   30% advance payment by T/T upon signing the contract



                                   70% covered by Confirmed Irrevocable Sight L/C







FAQ





1. Q:Are you a factory ?



    A:Yes,We are a manufacturer and doing the foam machines since 2006.



2. Q: Which drawing software do you use?



    A: Auto CAD.



3. Q: Whether your engineer can come to our factory for installation of the machine?



   A: Yes, sure.



4. Q: Can you import DXF files from another source?



   A : yes. Any DXF files is acceptable.



5. Q:The other fast wire machine had dust extraction and filtering. Does this machine

also have dust  extraction?

.
