Payment & Shipping Terms:
|Item:||Floral Foam Cutting Machine||Type:||DTC|
|Product Size:||3000*1200*1200mm||Cutting Line Diameter:||1.0-1.5mm|
|Control System:||Industrial Computer||Cutting Speed:||0-6m/min(adjusted)|
|Name:||FOAM CUTTING MACHINE|
Adjusted Industrial Computer Floral Foam Cutting Machine CNC Professional
It is a PLC control floral foam cutting machine

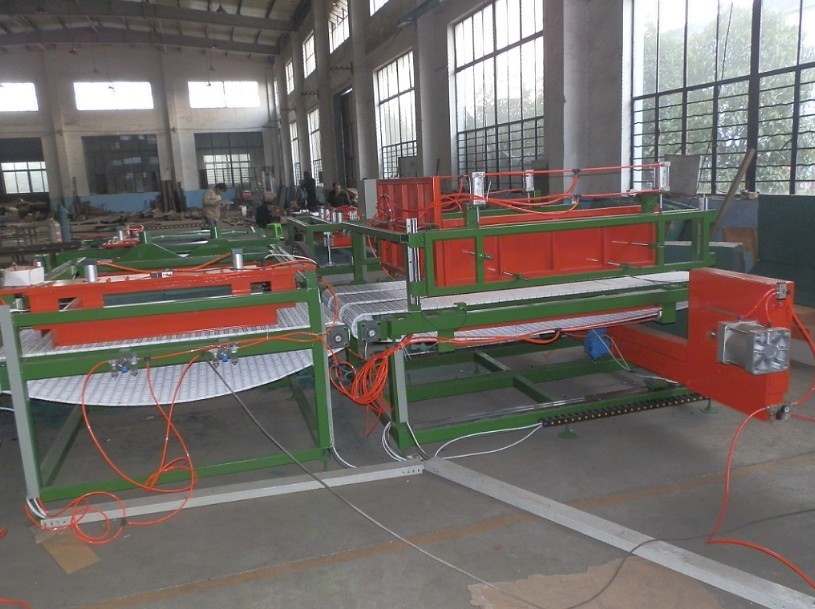

The whole cutting line is composed as follows:

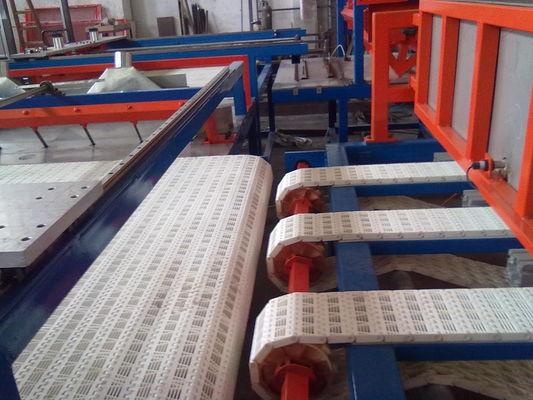

A Belt Conveyor (1) 2500mm length, 1200 width for floral foam Block transporing
after cutting. It is driven by an AC motor. It has two p holding systems.
A mobile horizontal cutting station (2) for horizontal cutting. It is used to cut the foam
block to requestd thickness which is 80mm. The whole horizontal cutting frame is driven
by an AC motor which driven by an inverter.
A Belt Conveyor (3) 1800mm length, 1200 width for floral foam block transport.
It keeps same speed and action with (1) belt conveyor.

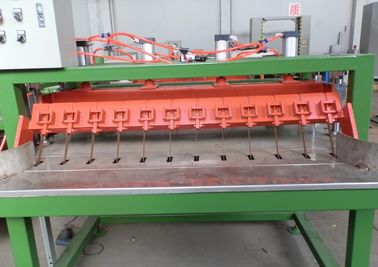

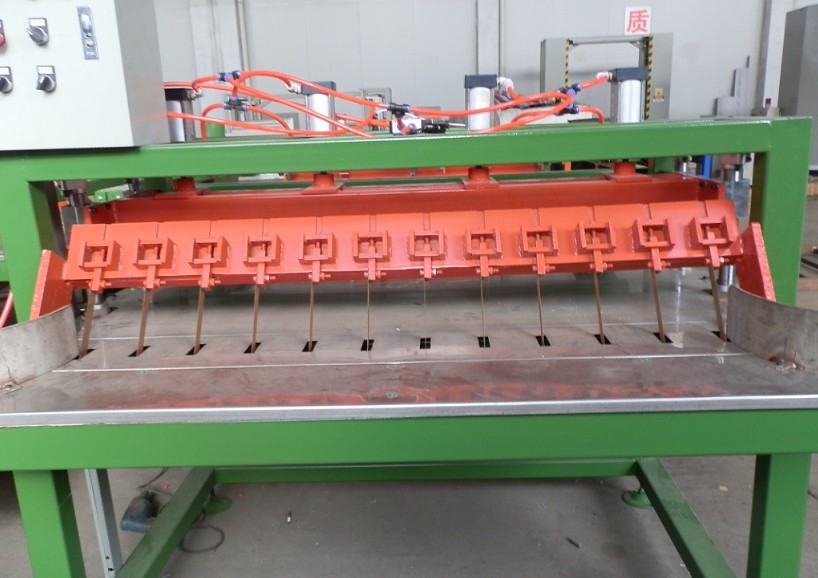

A vertical cutting station (4) for vertical cutting. It can cut the floral foam boards
1450mm*1450mm*80mm to be 1450mm*230mm*80mm and trimming two sides. It has the
de-dust system to take the dust during cutting away.
A Belt Conveyor (5) 1800mm length, 1500 width for floral foam block transport.
It is driven by an AC motor.
A vertical cutting station (6) for vertical cutting. It can cut the floral foam
boards 1450mm*230mm*80mm to be 110mm*230mm*80mm and trimming two sides.
It has the de-dust system to take the dust during cutting away.

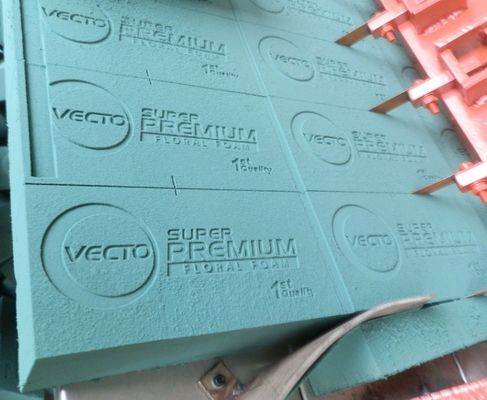

A pneumatic marking system (7) for stamp marks on the final product. It can press
down with logo molds automatic.
A Belt Conveyor (8) for final product which size is 110mm*230mm*80mm tranport out.
|Max. Block Size||L1450*W1450*H1200mm|
|Final Product Size||L110*W230*H80mm|
|Total Power||Approx. 9kw|
|Cutting Speed||0~6m/min adjustable|
|Compress Air||6 Bar|
1. Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each person will be
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have to be borned by
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
