PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

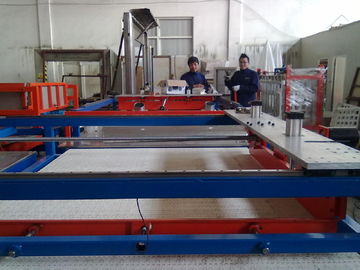

PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW

China PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW supplier
PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW supplier PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW supplier PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW supplier

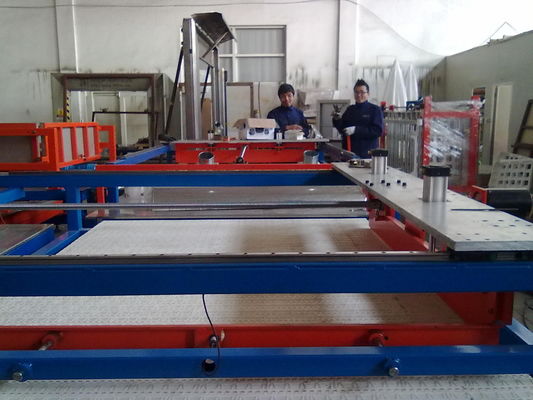

Large Image :  PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW

Product Details:

Place of Origin: CN
Brand Name: D&T
Model Number: DTC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD25600-50000/SET
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Item: Floral Foam Cutting Machine Type: DTC
Product Size: 3000*1200*1200mm Cutting Line Diameter: 1.0-1.5mm
Control System: Industrial Computer Cutting Speed: 0-6m/min(adjusted)
Precision: ±1mm Power: <5.5kw
Weight: 1200kgs Overall Dimension: 6200*2400*2380mm
Name: FOAM CUTTING MACHINE

PLC Control Floral Foam Cutting Machine Adjustable With 6 Bar , 9KW

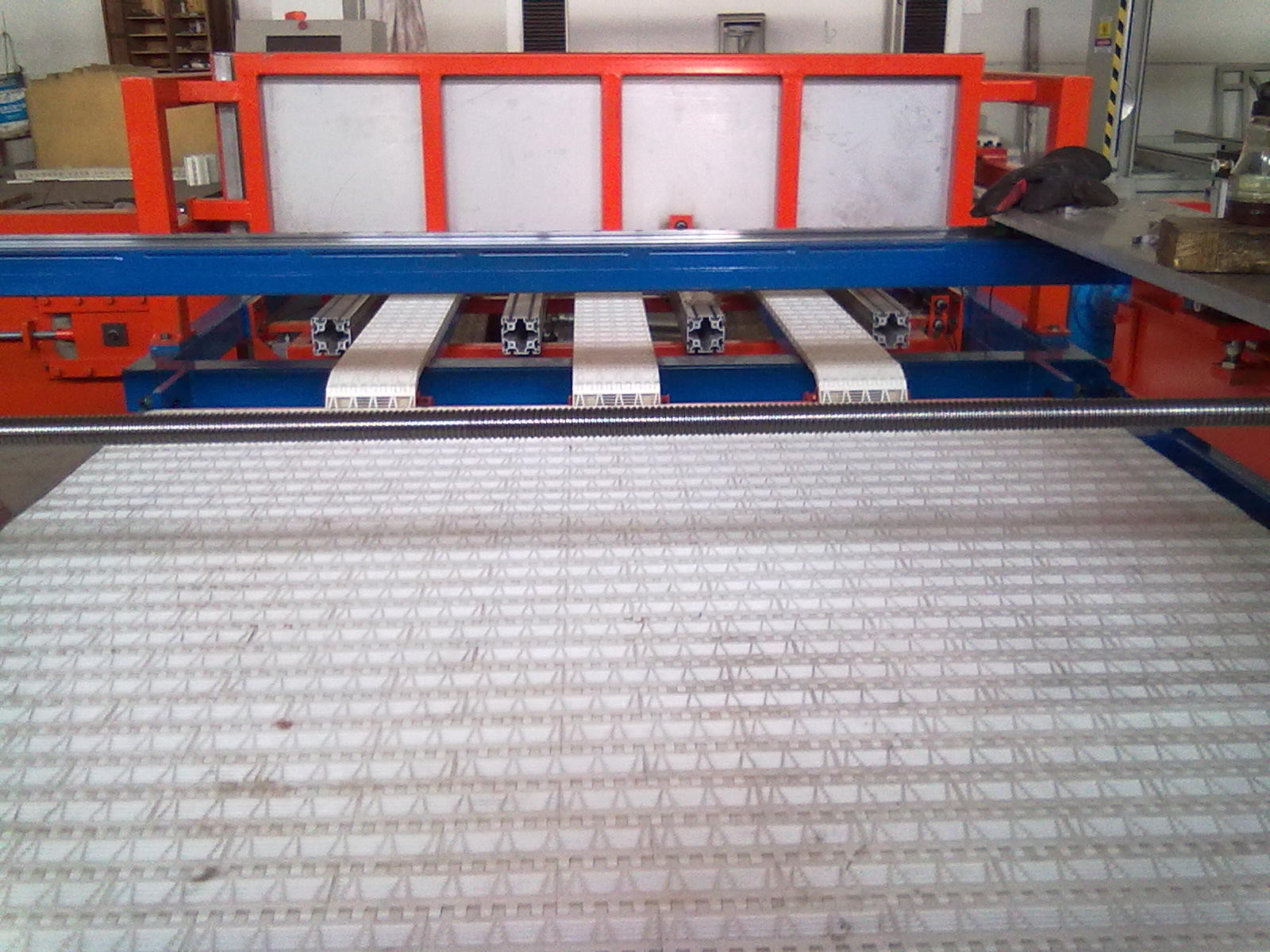

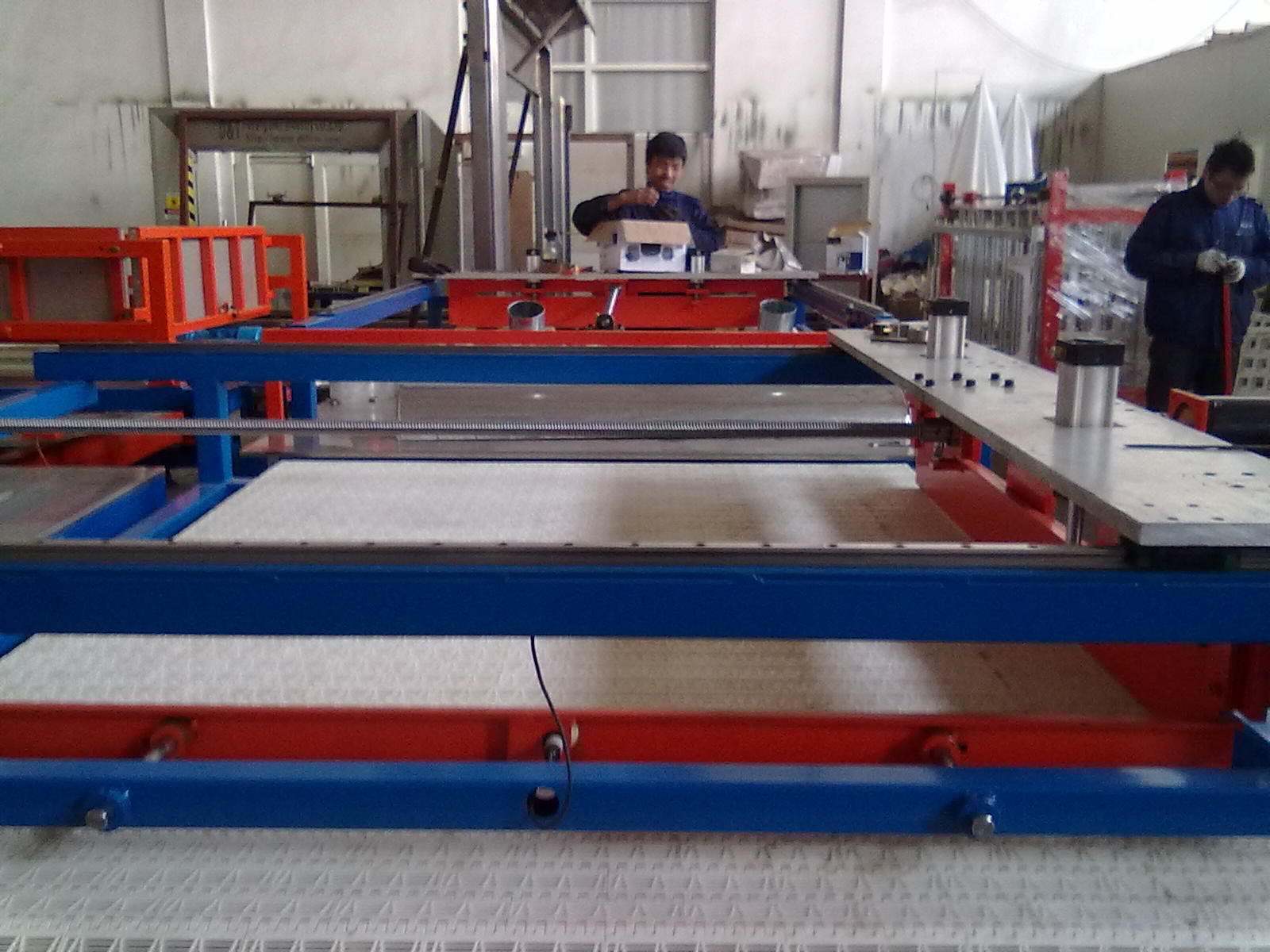

The whole cutting line is composed as follows:



A Belt Conveyor (1) 2500mm length, 1200 width for floral foam Block transporing

after cutting. It is driven by an AC motor. It has two pneumatic holding systems.

A mobile horizontal cutting station (2) for horizontal cutting. It is used to cut the foam

block to requestd thickness which is 80mm. The whole horizontal cutting frame is driven

by an AC motor which driven by an inverter.

A Belt Conveyor (3) 1800mm length, 1200 width for floral foam block transport.





It is a PLC control floral foam cutting machine



It keeps same speed and action with (1) belt conveyor.

    A vertical cutting station (4) for vertical cutting. It can cut the floral foam

boards 1450mm*1450mm*80mm to be 1450mm*230mm*80mm and trimming two sides.

It has the de-dust system to take the dust during cutting away.

    A Belt Conveyor  (5) 1800mm length, 1500 width for floral foam block transport.

It is driven by an AC motor.

    A vertical cutting station (6) for vertical cutting. It can cut the floral foam boards

1450mm*230mm*80mm to be 110mm*230mm*80mm and trimming two sides.

It has the de-dust system to take the dust during cutting away.

    A pneumatic marking system (7) for stamp marks on the final product.

It can press down with logo molds automatic.

    A Belt Conveyor (8) for final product which size is 110mm*230mm*80mm tranport out.





Technical Data



Max. Block Size L1450*W1450*H1200mm
Final Product Size  L110*W230*H80mm
Total Power Approx. 9kw
Cutting Speed 0~6m/min adjustable
Compress Air 6 Bar






Packing:



 For the packing, there are a professional team to loading the cargo. and also, we have some long-term cooperation with the shipping agent who is rich experience of carrier. So do not worry, it can save money and safe for you.





Our Services



After-sale Service:



1. Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation plus USD 60 per day each person will be charged additionally.



2. Lifetime maintenance free of charge.



3. Free training course at our plant.



4. 24 hours on line service each day, free technical support.



5. Machine has been adjusted and test before delivery.





Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.



                   shipping cost for parts to be replaced during warranty period have to be borned by the customers.





Terms of Paypent: 30% advance payment by T/T upon signing the contract



                                   70% covered by Confirmed Irrevocable Sight L/C
