Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

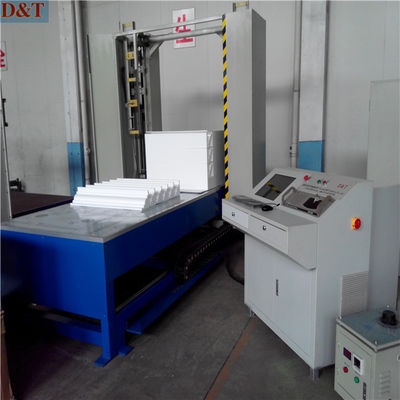

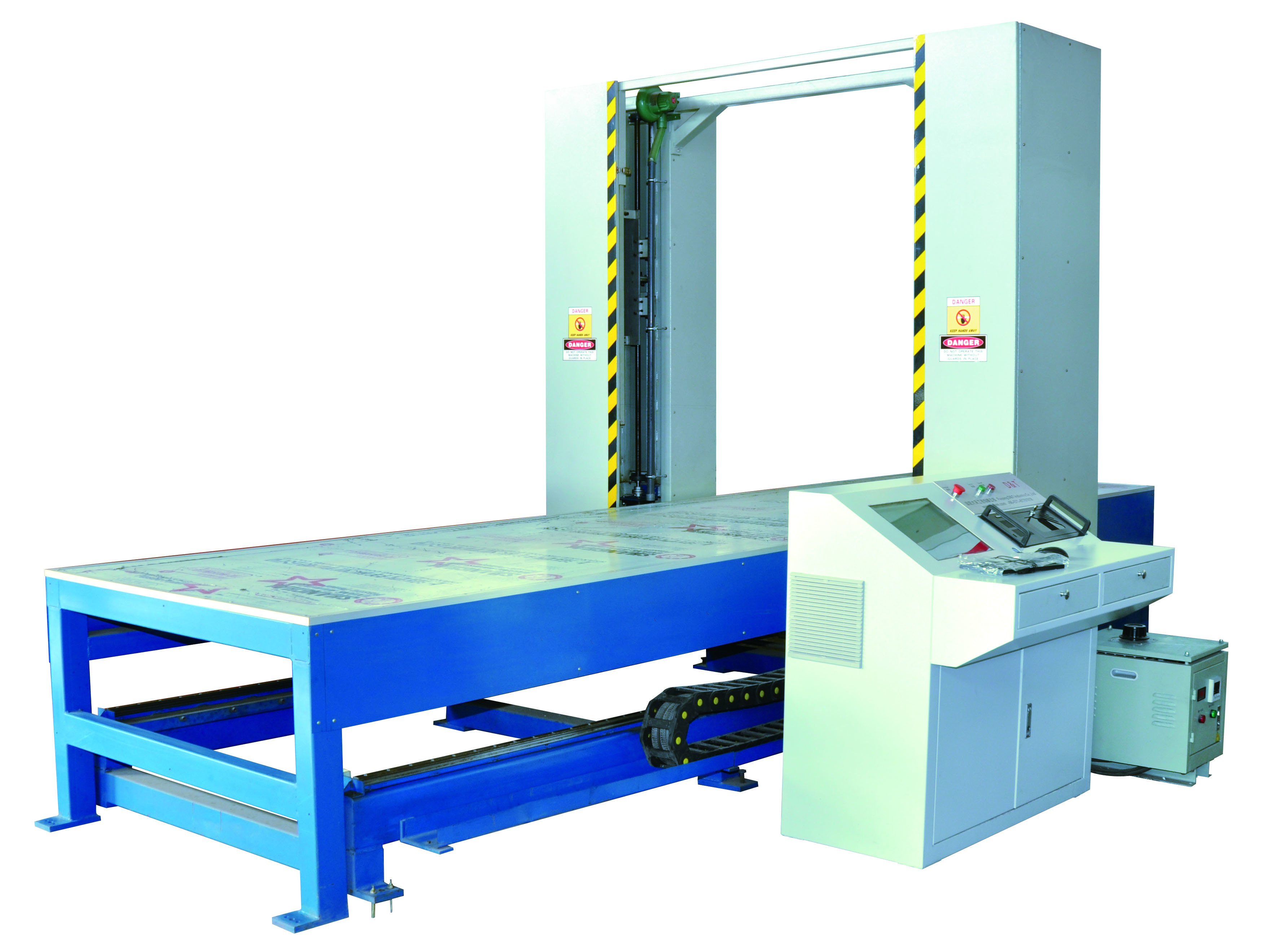

Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min

China Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min supplier
Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min supplier Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min supplier Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min supplier

Large Image :  Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E6012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000 - 40000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Model: DTC-E6012 Product Size: L6000*W1300*H1300mm
Cutting Line Diameter: 0.5-1.2mm Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted) Precision: ±1mm
Power: 14.5kw , 380V , 50Hz Weight: 2000kg

Multi-Wire XPS EPS Hot Wire CNC Foam Cutter 2D , 1.5M / Min for Polystyrene


Technical Data of  2D EPS cutting machine


TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg



























Description of 2D EPS Cutting Machine

Suit for: Polystyrene
Cutting line: Hot Wire

D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
THis kind of cutter has one or sevaral cutting lines for different production request.

All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and
enables the operator to obtain the best yield from the foam block.

It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.



Company Information


 Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,


polyurethane cutting machine, quilting machine ,
Concrete Sprayer and foam relation assistant

equipments.
Through the research of our engineers,
our cutting machine had connected well

with the popularized CAD and achieved automation and high efficiency,
high accuracy and makes it easy to operate.

We always put the customer on the first place and make utmost efforts

to satisfy you.We wholeheartedly look forward to developing economic,
technical and trade cooperation with you.
Products:
Fast wire cutting machine, pu cutting machine, hot wire cutting machine,
eps cutting machine,


 Samples for Cutting Product
 Multi - Wire XPS EPS Hot Wire Foam Cutting Machine 2D 1.5M / Min  styrofoam machine.jpg contour.JPG eps.jpg
