Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

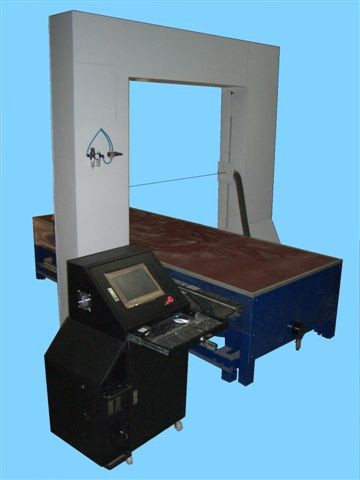

Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System

China Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System supplier
Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System supplier Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System supplier Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System supplier Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System supplier

Large Image :  Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Certification: CE
Model Number: DTC-F2012

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD15000-50000 / set
Packaging Details: PVC and wood package
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machine Oversea
Color: Depend On Customer Precision: ±1mm
Item: Auto CNC Foam Cutter With Moving Table Product Size: 3000*1300*1300mm
Cutting Line Diameter: 1.0-1.5mm Control System: Industrial Computer
Cutting Speed: 0-6m/min(adjusted) Power: <6.5kw
Weight: 1200kgs Overall Dimension: 7200*2400*2450mm

PIR /  Fireproofing Panel Auto CNC Foam Contour Cutting Machine Cutter With Moving Table , Brake System


Company Information


Fuyang D&T Industry CO., LTD. Specializes in manufacturing

CNC foam Cutting machine,
polyurethane cutting machine,

quilting machine and

foam relation assistant equipments.


Through the research of our engineers,

our cutting machine had connected well with the popularized
CAD and achieved automation and high efficiency,

 high accuracy and makes it's easy to operate.
We always put the customer on the first place and

 make utmost efforts to satisfy you.
We wholeheartedly look forward to developing economic,

 technical and trade cooperation with you.

Products: Fast wire cutting machine,

                pu cutting machine,

                hot wire cutting machine,
                eps cutting machine,

                quilting machine and so on.



Application:

Flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams




Specification:


Model

DTC-F2012

Max. Product Size

2500×2000×1200(mm)

Cutting Line

1.0~1.5mm

Control System

Industrial Computer

Software

D&T Profiler

Cutting Speed

0~6m/min

Precision

±1mm

Power

<6.5kw

Overall Weight

1500kg

Overall Dimension

6200×3200×2800mm

















































Advantage:

Computer control system,

all Motor will stop when the safety door be opened;

Exigency button on both
machine and control box for accident;

Brake system when cutting line broken.



Packing:

For the packing, there are a professional team to loading the cargo.

and also, we have some long-term cooperation with the shipping

agent who is rich experience of carrier. So do not worry,

it can save money and safe for you.

Description:

The D&T Fast wire Contour Cutter is a versatile machine,

which uses an abrasive wire moving at
high-speed to enable it to cut complex 2D shapes from a wide range of rigid and flexible foams.

These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.

All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process and enables the
operator to obtain the best yield from the foam block.


Fast Wire Contour Cutter has perfect safe system to provide the accident.

It include: All Motor will stop
when the safety door be opened;

Exigency button on both machine and control box for accident;

brake system when cutting line broken.


Optional:

 Movable table

Auto CNC Foam Contour Machine Cutter With Moving Table , Brake System


Finish products:

Auto CNC Foam Contour Machine Cutter With Moving Table , Brake SystemAuto CNC Foam Contour Machine Cutter With Moving Table , Brake System
