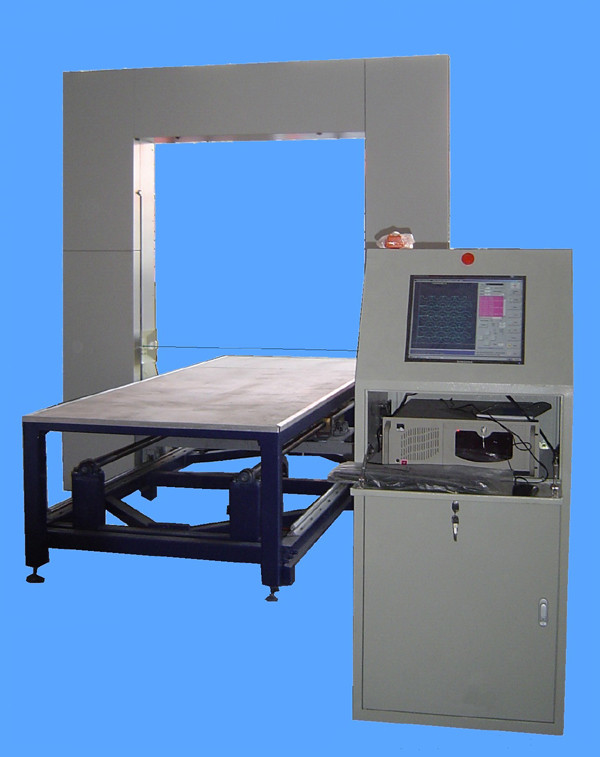

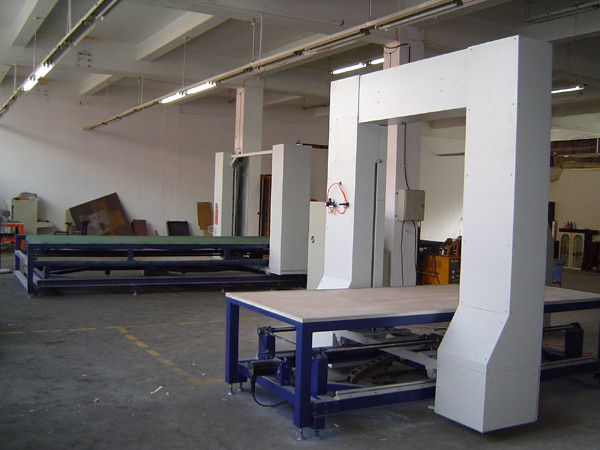

Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter

China Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter supplier
Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter supplier Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter supplier Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter supplier Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter supplier

Large Image :  Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-F3012

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD15000-73000 /set
Packaging Details: PVC and wood package
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machine Oversea
Color: Depend On Customer Precision: ±1mm
Item: Auto CNC Foam Cutter With Moving Table Product Size: 2500×2500×1200mm
Cutting Line Diameter: 1.0-1.5mm Control System: Industrial Computer
Cutting Speed: 0-6m/min(adjusted) Power: 10kw
Weight: 3100kg Overall Dimension: 7200×2400×3300mm

Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter

Description:
The D&T Fast wire Contour Cutter is a versatile machine,
which uses an abrasive wire moving at
high-speed to enable it to cut complex 2D shapes from a wide range of rigid and flexible foams.
These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the
operator to obtain the best yield from the foam block.

Application:
stretch and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams
Fast Wire Contour Cutter has perfect safe system to provide the accident.
It includes: All Motor will stop
when the safety door be opened;
Exigency button on both machine
and control box for accident;
brake system when cutting line broken.

Advantage:

Computer control system, all Motor will stop when emergency
Exigency button on both
machine and control box for accident;
Brake system when cutting line broken.



Specification:

Model

DTC-F6012

Max. Product Size

6000×1250×2000(mm)

Cutting Line

1.0~1.5mm

Control System

Industrial Computer

Software

D&T Profiler

Cutting Speed

0~6m/min

Precision

±1mm

Power

<10kw

Overall Weight

3100kg

Overall Dimension

7200×2400×3300mm


























Optional:

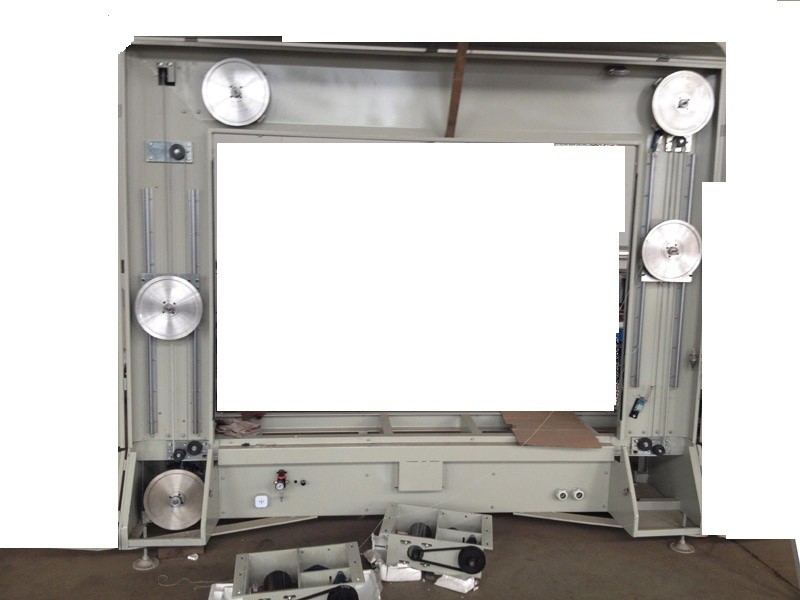

Movable Cutting Frame

Packing:

For the packing, there are a professional team to loading the cargo.
and also, we have some long-term cooperation
with the shipping agent who is rich experience of carrier.
So do not worry, it can save money and safe for you.

After-sale Service:

1. Our engineers is avilable to oversea for coordinate installation,
    commissioning and training.
    Cost for flight and suitable accommodation plus USD 60 per day
    each person will be charged additionally.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4.  24 hours on line service each day, free technical support.

5.  Machine has been adjusted and test before delivery.

Finished products:

Movable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam CutterMovable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam CutterMovable PE / PVC CNC Contour Cutting Machine With Cutting Frame , EVA Foam Cutter
