Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable

China Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable supplier
Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable supplier Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable supplier Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable supplier

Large Image :  Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S1212

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000-80000 / set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×1200×1000mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 4kw 380V 50HZ Weight: 1200kg

Automatic CNC Contour Cutting Machine With Long Worktable for Complex Shape Sponge Cutting





2015 CNC latex sponge oscillating blade sponge

automatic cutting machine with long worktable  DTC-S1212​







Specification:



Model

DTC-S1212

Control System

Industrial Computer

Max. Product Size

2500×1200×1000mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

4kw 380V 50HZ

Weight

1200kg





















































Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect,

composite foam, frame foam, polyethylene.





Advantage:



Worktable:plat worktable, moving worktable, rotary worktable (could select)



Description:

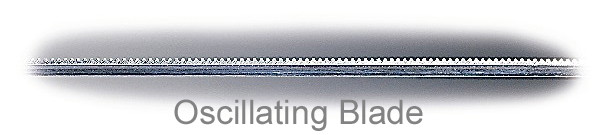

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter

which suitable flexible foam. The blade cut with high speed vibrating,

so that it will work faster and the product will be smoother.

Speciallyno dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process and enables the operator to

obtain the best yield from the foam block.





Software question:



1.Q: what kind of CAD software the machine uses?

A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2.Q: about the CAD software, what's its name?

A: The name is Auto CAD Software



3.Q: where do you sell your machines mostly? which countries?

A:our main market is Russian, Middle East, Canada,USA,Austral,

   Mexico,Brazil for different kind types



4.Q: the operating system which you use is windows, right?

        what kind of windows? XP? or Windows 7?

   A:Yes ,it is Windows XP.

      When operated,Our machine doesn't need to use network

      We usually use XP for its stability.Also windows 7 is OK.



5.Q:is your software licensed or it's illegal? ("cracked")

   A: our own profiler cutting software is develop by ourselves. It is origina

   Q:but the auto-cad and the windows? the auto-cad and the windows are original too

      I am asking  this question because our company use only licensed software

   A:windows is licensed; AutoCAD is testing type.

     our machines do not include the licensed AutoCAD

     if you have any drawing software, you can make the DXF file.



6.Q:the differences between our Fast Wire CNC Cutting machine and

      Oscillating Blade CNC Blade Cutting Machine.

   A:First,Fast wire cutters use high -speed abrasive wire and Oscillating

      Blade cutters use high-speed, toothed blade.

Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.

and for soft foam material, the better cutter is Oscillating Blade CNC cutter.

Thirdly,fast wire CNC cutters also can cut soft material.

 but the dust from the soft material needs an extra dust pelletizing system

and the soft material also is not good for the fast wire cutter itself.



7.Q:For reputation and website:

   A: for the reputation ,we are 8 years golden supplier on Alibaba.

       And our engineers have researched our machine more and improved

       it better and better.

       We promise our machine will be as good as we told.

       Even we keep 10% for the guarantee until to

       install the machine well and the client satisfy with our machine.

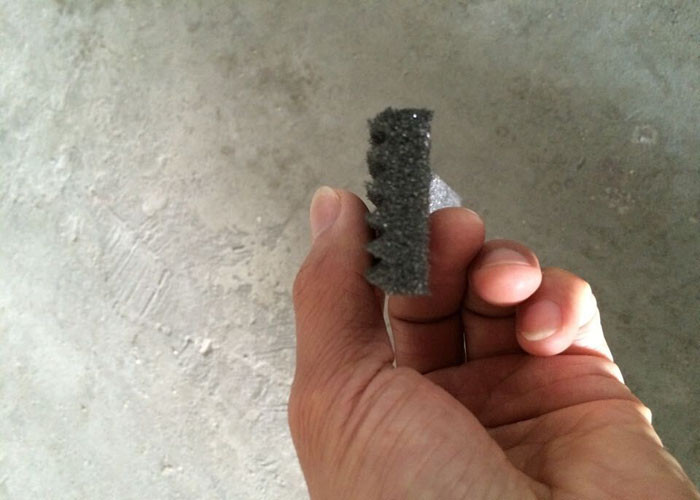

Finished products:



Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable   Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable   Latex Sponge Automatic CNC Contour Cutting Machine With Long Worktable
