Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam

China Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam supplier

Large Image :  Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S1212

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000-60000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×1200×1000mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 4kw 380V 50HZ Weight: 1200kg

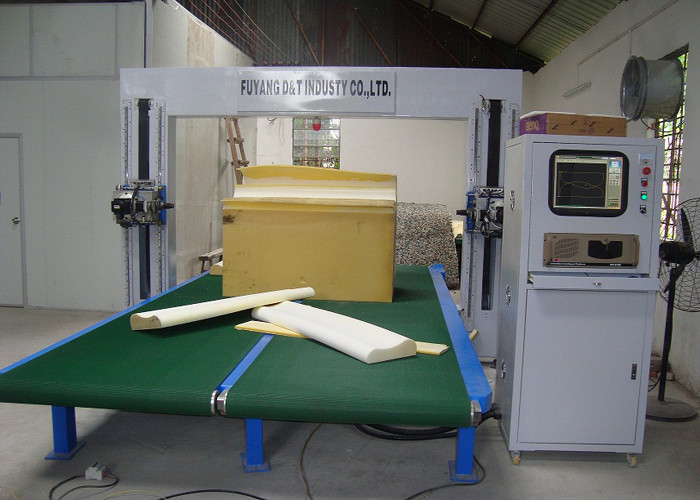

Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam



High precission auto cutting machine

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which
suitable flexible foam.
The blade cut with high speed vibrating, resulting that it will work faster and the product
will be smoother.
Specially, no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
All the machines are driven by the remarkable D&T Profiler software, which speeds up
the design process and enables the operator to obtain the best yield from the foam block.

 Suit for: Flexible Foam,Sponge

Cutting Line: High speed, toothed blade.

Application area: It can clean cut any ideal geometric profile
It can be used in Automotive industry,
Furniture industry,
Packing industry,
Building industry,
Daily commodity and so on.

Cutting material: PU soft foam,sticky foam,latex,
rebond foam, frame foam, Polyethylene.


Advantage:

Worktable:plat working table, moving table (could select)


Specification:

Model

DTC-S1212

Control System

Industrial Computer

Max. Product Size

2500×1200×1000mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

4kw 380V 50HZ

Weight

1200kg



Software question:

1. Q: what kind of CAD software the machine uses?
    A: For the CAD software ,our machine uses 2004 or 2006(you prefer )

2. Q: about the CAD software, what's its name?
    A: The name is Auto CAD Software

3. Q: where do you sell your machines mostly? which countries?
    A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for
       different kind types

4. Q: the operating system which you use is windows, right?
        what kind of windows? XP? or Windows 7?
    A:Yes ,it is Windows XP.
       When operated,Our machine doesn't need to use network
       We usually use XP for its stability.Also windows 7 is OK.


Profile finished products:

 Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam Flexible Foam Shape Oscillating Blade Cutter For Rebond , Composite FoamFlexible Foam Shape Oscillating Blade Cutter For Rebond , Composite Foam
