Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam

Certification
Good quality EPS Cutting Machine for sales
I'm Online Chat Now

Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam

China Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam supplier
Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam supplier Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam supplier Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam supplier Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam supplier

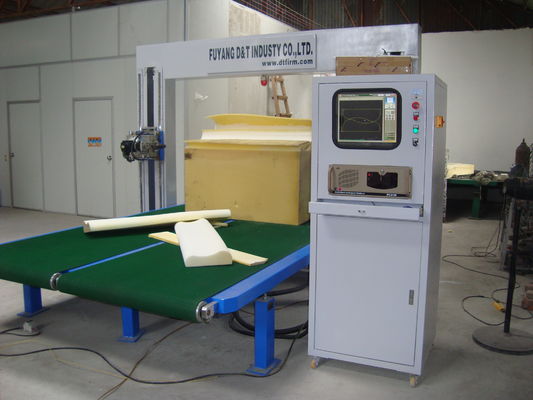

Large Image :  Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2512

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD20000-45000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×2500×1200mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 8.5kw 380V 50HZ Weight: 2500kg

Sticky Foam / Latex Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam





Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect,

composite foam, frame foam, polyethylene.





Advantage:



Worktable:plat working table, moving table (could select)





Specification:



Model

DTC-S2512

Control System

Industrial Computer

Max. Product Size

2500×2500×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

8.5kw 380V 50HZ

Weight

2500kg





Foam CNC cutting machine


- cnc sponge cutting machine
- foam cutter

- max speed is 6m/ min




Description:



The oscillating cutting machine may process any size foam blockall kinds of

foam fontslow rebound sponges, contoured cleaning supplies, etc.





Features:



1. Using the control software that developed by our company can easily draw the graphics.

    the computer may automatically convert the graphics into the controlling code,

   thus reduce your workload.

   The computer can simulate the processing path to ensure the accuracy of each cutting.

   the computer can optimize your nesting, make full use of the foam, reduce the cost for you.

2. The mahine takes advantage of cutting blade vibration design,

   the blade can be 360 ° rotation, and achieves strong results automation capabilities,

   this technology is the leading domestic level, and to fill the gap in our country.

3. The difference of the machine compared with the cutting wire machine is

    that it utilizes special high-speed dual-vibration system,the blade easy installation,

   simple operation and high efficiency.

4. The machine blade is importable carbon steel strip, long service life,

    and to facilitate the replacement.

5. With the entire machinery safety facilities, such as security screens,

    emergency stop, protection device of cutting wire broke , as well as other sensors, etc.

6. High frequency vibration, high cutting speed, no dust.



After-sales service provided:



engineer available to commissioning and trainning.





Finished product:



  Foam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible FoamFoam / Oscillating Blade Cutter With Plat Working Table 8.5KW for Flexible Foam
