Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min

China Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min supplier
Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min supplier Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min supplier Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min supplier Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min supplier

Large Image :  Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min

Product Details:

Place of Origin: Zhejiang
Brand Name: D&T
Model Number: DTC-S2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD20000-80000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Oversea
Color: As Your Request Max.Foam Block: 2500×2000×1200mm
Control System: Industrial Computer With D&T Special Profiler Software Cutting Line: 3 X 0.6mm
Cutting Speed: 0~6m/min Precision: ±0.5mm
Power: 6kw 380V 50HZ Weight: 1800kg

Industrial Computerized Oscillating Polyethylene Blade Cutter Machinery 6m / Min





Foam Cutting Machines



Description:

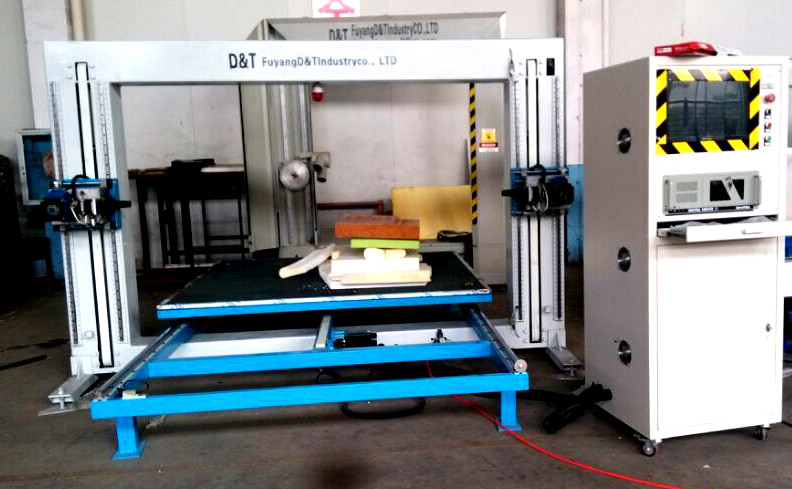

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter

which suitable flexible foam.

The blade cut with high speed vibrating,

so that it will work faster and the product will be smoother.

Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process

and enables the operator to obtain the best yield from the foam block.





Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect,

composite foam, frame foam, polyethylene.





Advantage:



Worktable:plat working table, moving table (could select)





Specification:



Model

DTC-S2012

Control System

Industrial Computer

Max. Product Size

2500×2000×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

6kw 380V 50HZ

Weight

1800kg





Features:



.  Using the control software that developed by our company can easily draw the graphics.

   the computer may automatically convert the graphics into the controlling code,

   thus reduce your workload. The computer can simulate the processing path to

   ensure the accuracy of each cutting. the computer

  can optimize your nesting, make full use of the foam, reduce the cost for you.

.  The mahine takes advantage of cutting blade vibration design,

   the blade can be 360 ° rotation,

  and  achieves strong results automation capabilities,

  this technology is the leading domestic level, and to fill

  the gap in our country.

.  The difference of the machine compared with the cutting wire machine

  is that it utilizes special high-speed dual-vibration system,

   the blade easy installation, simple operation and high efficiency.

.  The machine blade is importable carbon steel strip, long service life,

   and to facilitate the replacement.

.  With the entire machinery safety facilities,

   such as security screens, emergency stop,

   protection device of cutting wire broke ,

   as well as other sensors, etc.

.  High frequency vibration, high cutting speed, no dust.

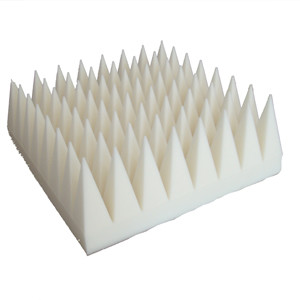

Finished produts:



Polyurethane PU Soft Foam Oscillating Blade Cutter Adjustable 50HZ Polyurethane PU Soft Foam Oscillating Blade Cutter Adjustable 50HZPolyurethane PU Soft Foam Oscillating Blade Cutter Adjustable 50HZ
