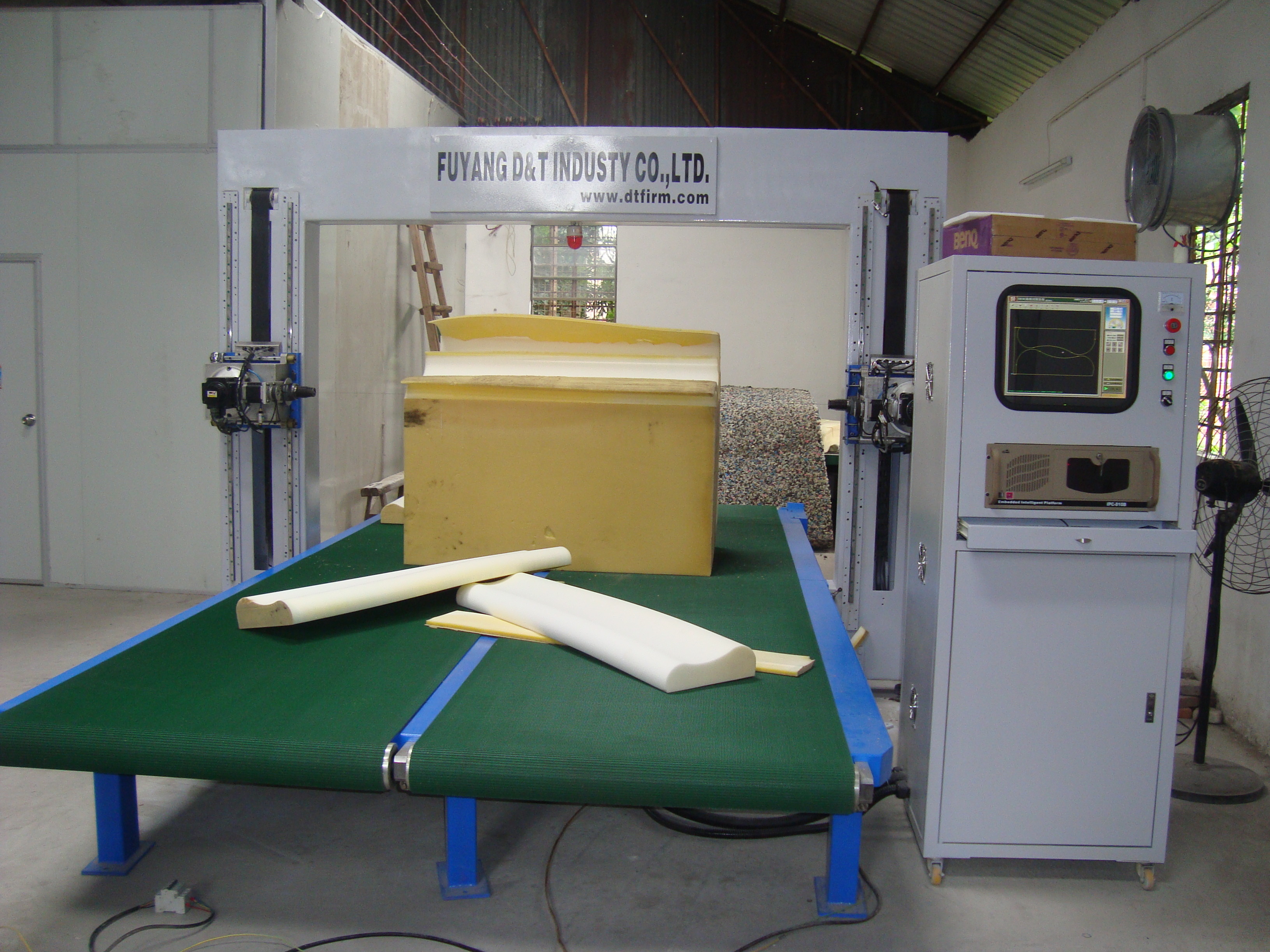

6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG

China 6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG supplier

Large Image :  6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG

Product Details:

Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-S2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD20000-42000/set
Packaging Details: packaged according to the requirements of customers
Delivery Time: 30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Overall Dimension: L4200 * W3200 * H2800 Mm After-sales Service Provided: Engineers Available To Service Machinery Oversea
Max.Foam Block: 2500×1200×1000mm Control System: Industrial Computer With D&T Special Profiler Software
Cutting Line: 3 X 0.6mm Cutting Speed: 0~6m/min
Precision: ±0.5mm Power: 6kw 380V 50HZ
Weight: 1800kg Cutting Blade Length: 2300mm Should Comfirmed By Maker By Machine
Model: DTC - S2012

6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG





Application:



Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.



Description:



Overall dimension: L4200 * W3200 * H2800 mm

Cutting Line: 3 X 0.6mm

Cutting Speed: 0~6m/min
Power: 6kw 380V 50HZ

The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter

which is suitable flexible foam.

The blade cut with high speed vibrating, so that it will work faster and the product

will be smoother.

Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.

All the machines are driven by the remarkable D&T Profiler software, which speeds

up the design process and enables the operator to obtain the best yield from the foam block.







Advantage:



* PC/ Industry computer control, easy operation.

* Worktable:plat working table, moving table (could select)





Specification:



Model

DTC-S2012

Control System

Industrial Computer

Max. Product Size

2500×2000×1200mm

Cutting Speed

0~6m/min

Cutting Line

3 X 0.6mm

Precision

±0.5mm

Power

6kw 380V 50HZ

Weight

1800kg





Why choose D&T:



Since 2006, being the leading manufacturing CNC automatic foam cutting machine in China,

D&T offers the highest price performance foam cutting machine.

Every D&T product was marked as economic, environmental and easy maintenance.

With 9 years history in the industry, D&T built a high reputation in South America,

Eastern Europe, Southeast Asia, and Oceania regions.

The D&T Industry Co., Ltd. won the customers for our good service and advanced technology.



Welcome to D&T!





Software question:



1. Q: what kind of CAD software the machine uses?

A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2. Q: about the CAD software, what's its name?

A: The name is Auto CAD Software



3. Q: where do you sell your machines mostly? which countries?

A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types



4. Q: the operating system which you use is windows, right?

        what kind of windows? XP? or Windows 7?

   A:Yes ,it is Windows XP.

      When operated,Our machine doesn't need to use network

      We usually use XP for its stability.Also windows 7 is OK.



5. Q:is your software licensed or it's illegal? ("cracked")

    A: our own profiler cutting software is develop by ourselves. It is origina

    Q:but the auto-cad and the windows? the auto-cad and the windows are original too

      I am asking  this question because our company use only licensed software

    A:windows is licensed; AutoCAD is testing type.

      our machines do not include the licensed AutoCAD

      if you have any drawing software, you can make the DXF file.



6. Q:the differences between our Fast Wire CNC Cutting machine and Oscillating

        Blade CNC Blade cutting Machine.

   A:First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters

      use high-speed toothed blade.

Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material,

the better cutter is Oscillating Blade CNC cutter.

Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material

needs an extra dust pelletizing system and the soft material also is not good for the fast wire

cutter itself.

7. Q:For reputation and website:

    A: for the reputation ,we are 8 years golden supplier on Alibaba.

       And our engineers have researched our machine more and improved it better and better. We

       promise our machine will be as good as we told. Even we keep 10% for the guarantee until to

       install the machine well and the client satisfy with our machine.





Cutting finish product:

        6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG6KW Belt Conveyor Table Flexible Polyurethane Oscillating Blade Cutting Machine 1800KG
