15KW EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting

China 15KW  EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting supplier
15KW  EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting supplier 15KW  EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting supplier 15KW  EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting supplier

Large Image :  15KW EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E6012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000 - 40000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Item: CNC Foam Cutting Machine Type: DTC-E6012
Product Size: 6000*1300*1300mm Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer Precision: ±1mm
Power: 14.5kw,380v,50hz Weight: 2000kgs
Name: Eps Cutting Machine

15KW EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting

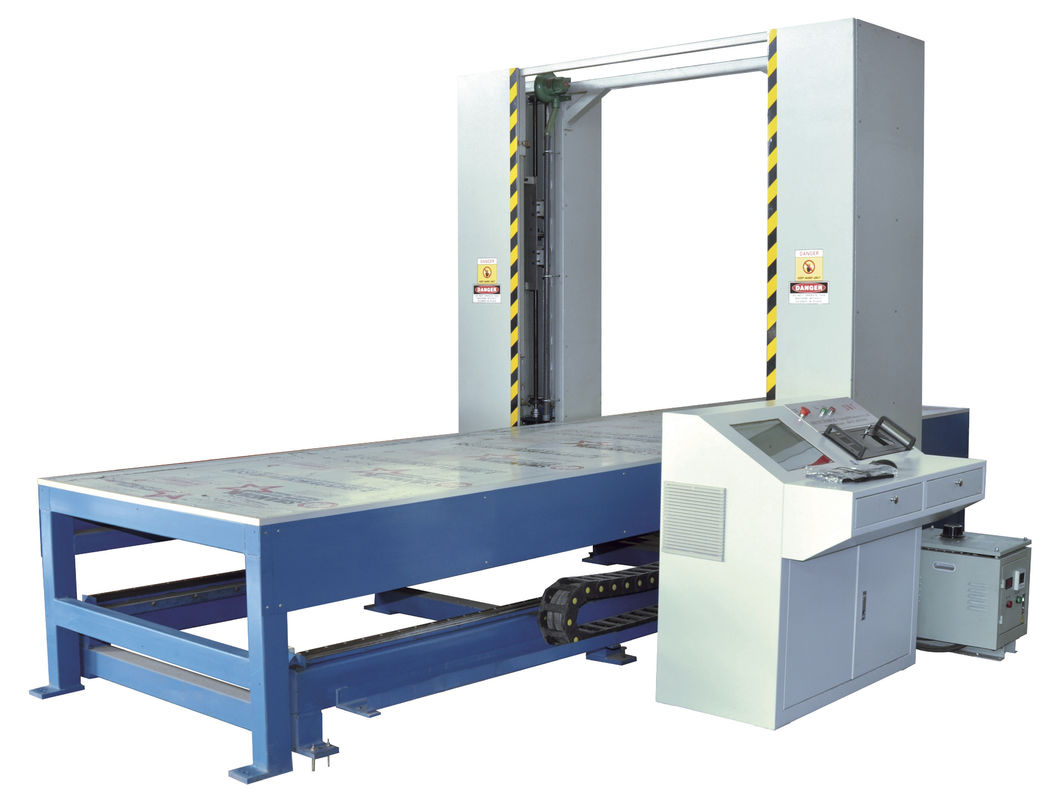

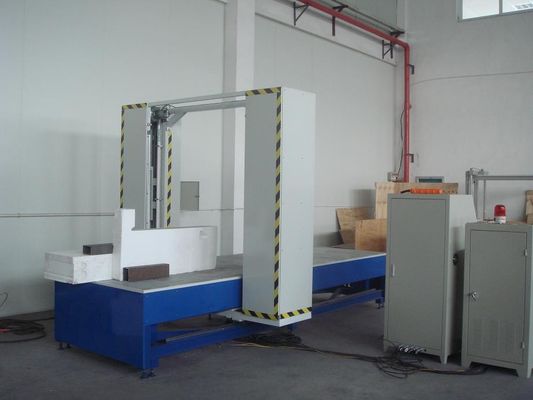

1. Description Of 2D EPS cutting machine

Suit for: EPS
Cutting line: Hot Wire


D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
This kind of cutter has one or sevaral cutting lines for different production request.



All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the operator to
obtain the best yield from the foam block.

Hot Wire Contour Cutter has perfect safe system to provide the accident.

It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.



 2. Technical Data of  2D EPS cutting machine



TECHNICAL DATA
Type DTC-E2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Precision                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg























3. Main Introduction:


1  Main frame: aluminum alloy profile connected by special joints with
    stable function and performance, reasonable structure, high precision,
    easy and convenient operation which can save time, strength and raw material.

2  Full automatic industrial control system

3  Draw all kinds figures with CAD/CAM on computer and cut directly,
    or can cut after the cutting file is run from U-disc.

4  With convenient operating interface, the machine can display the parts to the cut,
   follow the cutting path as well as their respective status
   such as limits, alarm, operation conditions of each axis, etc.


5  With high strength and stability mechanical design,
    the machine can work smoothly with numerical control system
   and there is no need to adjust.

6 The machine has double track notion design with high precision,  which is durable.



4. Company Information



 Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,


polyurethane cutting machine, quilting machine,mattress spring coiling machine  and foam relation assistant

equipments. Through the research of our engineers, our cutting machine had connected well

with the popularized CAD and achieved automation and high efficiency, high accuracy and

makes it easy to operate.We always put the customer on the first place and make utmost efforts

to satisfy you.We wholeheartedly look forward to developing economic, technical and trade

cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting

machine, eps cutting machine, quilting machine and so on.


5. Samples for Cutting Product



15KW  EPS Cutter XPS Hot Wire Foam Cutting Machine Servo Motor For Construction EPS Block Cutting
