High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty

China High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty supplier
High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty supplier High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty supplier High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty supplier

Large Image :  High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-EP800A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000 - 40000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Item: Polystyrene Foam Sheet Cutting Machine Cutting Size: 8000×1300×1300 (mm)
Power: 22.3kw Overall Size: 1110000*2025*2900mm
Weight: 3200kg Wire Dia.: 0.8-1.8mm
Application: Building Brand: D&T

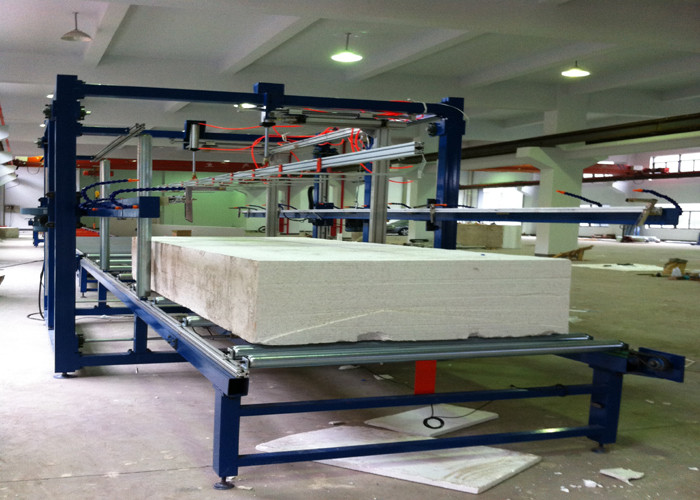

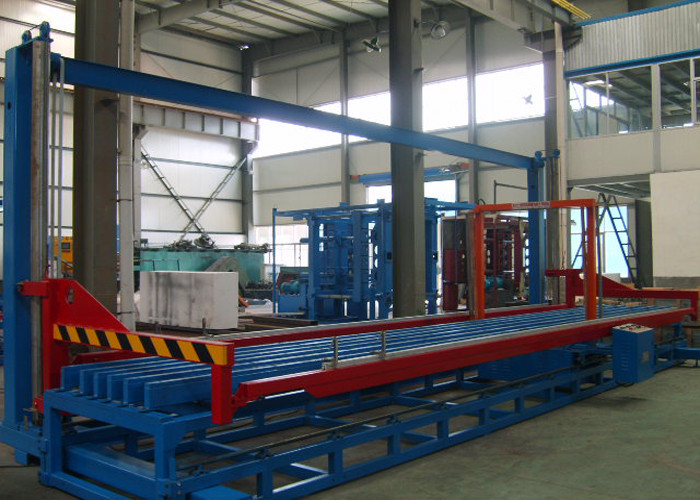

8000 Superduty  High Effective EPS Down Cutter EPS Sheet Cutting Machine



Main Features:



1. The main frame of the machine is welded from square profile steel, with strong structure and high strength.

2.The machine has horizontal, cross and edge cutting devices.

3.The machine adopts transducer to get the suitable cutting speed for different type and density EPS block.

4.Voltage adjustment. With the transducer, the machine can cut sheet excellent.

5.Special down cutting in automatic.





Note: The price bases on present exchange rate. It will be changed with the exchange rate.

TECHNICAL DATA

Type

DTC-EP200A

DTC-EP300A

DTC-EP400A

DTC-EP600A

DTC-EP800A

Max. Product Size

2000×1300×1300

(mm)

3000×1300×1300

(mm)

4000×1300×1300

(mm)

6000×1300×1300

(mm)

8000×1300×1300

(mm)

Power

22.3kW

22.3kW

22.3kW

22.3kW

22.3kW

Overall Dimension

5100×2025×2900

(mm)

6100×2025×2900

(mm)

7100×2025×2900

(mm)

9100×2025×2900

(mm)

11100×2025×2900

(mm)

Overall Weight

1300kg

1600kg

2000kg

2800kg

3200kg







Terms of Payment: 30% advance payment by T/T upon signing the contract

                                   70% covered by T/T or Sight Confirmed Irrevocable L/C



Delivery:  40 days after receipt of advance payment.



Installation and Start-up:  One technician (with one Translator) will be assigned to coordinate installation, Commissioning and training, cost for flight and suitable accommodation plus USD60/day each will be charged additionally.



Warranty: 12 months limited warranty



The machine also can be produced by customer’s special requirement.



Samples:

High Effective EPS Sheet Hot Wire Foam Cutting Machine 8000 Superduty
