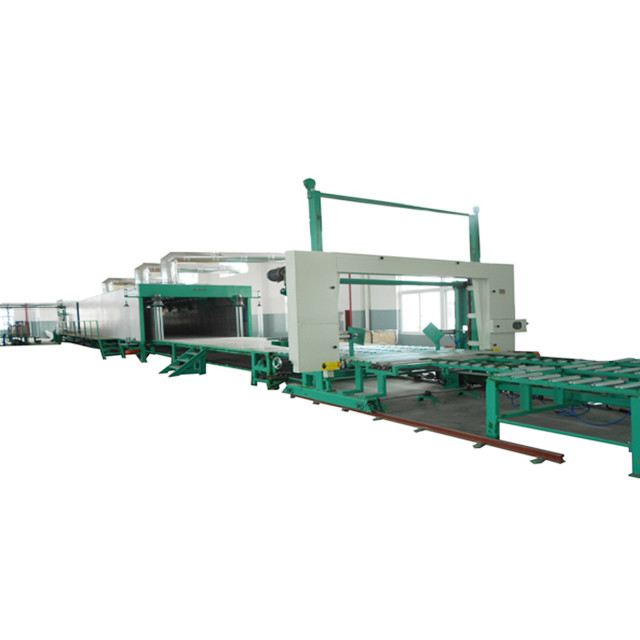

Full Automatic Flexible Polyurethane Foam Machine To Make Polyurethane Foam

China Full Automatic Flexible Polyurethane Foam Machine To Make Polyurethane Foam supplier

Large Image :  Full Automatic Flexible Polyurethane Foam Machine To Make Polyurethane Foam

Product Details:

Place of Origin: China
Brand Name: D&T

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD35000-300000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SETS PER MONTH
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Overall Dimension: 34m*4.55m*3.2m
Product Height: Below 1200MM Product Width: 1200mm~2300mm
Density: 10Kg/m3~50Kg/m3 Capacity: 2000mm/min~7000mm/min
Maximum Capacity: 200~300L/min Total Power: 130KW
Foaming Model: Full Automatic Application Area: Sponge, Polyurethane Foam, Mattress, Furniture



After foaming, it needs 6 hours for cooling and curing in the ventilated warehouse.



Product Description
A. specifications of each component:

1.Stirs mix rack and spongy control platform: 4m×3.2m×3.2m(L×W×H)
2. Drop board of drying tunnel 8.32m×1.2m~2.30m(L×W)
3.Side link joint of drying tunnel 17.5m×2.4m×1.2m(L×W×H)
4.Rack of drying oven 16.9m×4.55m×3.2m(L×W×H)
5. Level transportation line in the drying tunnel 17.5m×2.4m×0.8m(L×W×H)
6. The width of sponge wadding for cutting machine 2.4m×1.30m (W×H) (Undercut type)


B. main technical specifications and functions
1. Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)
2. Quantity of component of foaming material: 13 groups
3. Product Width: 1200mm~2300mm
4. Product Height: ≤1200MM
5. Density: 10Kg/m³~50Kg/m³
6. Capacity: 2000mm/min~7000mm/min
7. Maximum capacity: 200~300L/min
8.Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)
2). trough type (match 2 foaming troughs: W1550mm/w2100mm)
9. Membrane lift installment (Flat topping function)
10. Announcing arrestor for material lack( foaming protect function)
11. Drop board of drying tunnel operated height and width by electrically
12. Transportation line of side link joint of drying tunnel operated height and width by electrically
13. The body paper and film put away automatically
14. Easy to change the two mix stirs (Φ100mm) and pre-mixer
15. The Method to control expanding:
1).Control by PLC, kinds of different types of sponge continuously once
2).Entire transducer control, production line synchronization;
16. The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).
17. The electrical machinery power of mix stirs: 37kw
18. Total Power: 130kw
