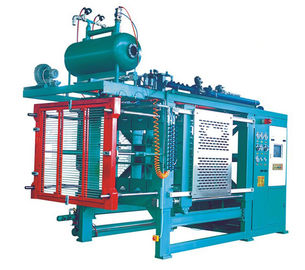

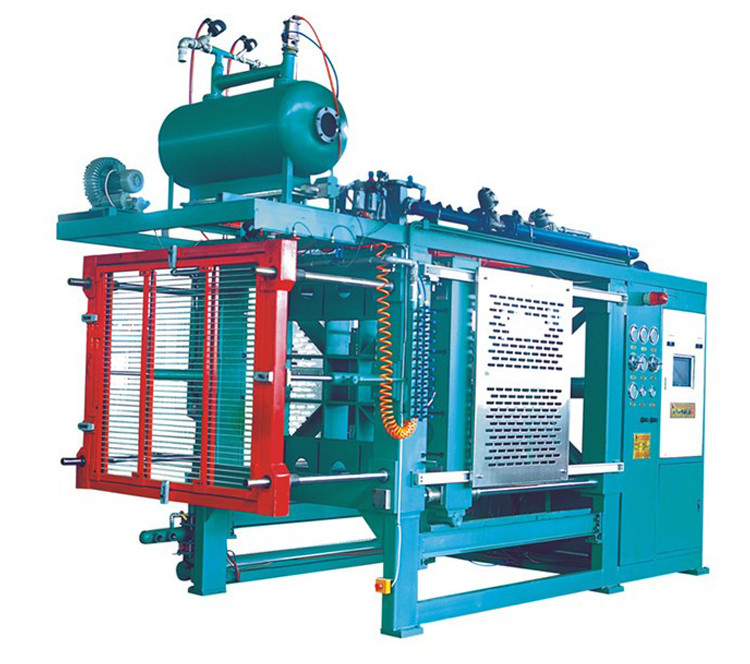

Automatical Shape Foam EPS Block Molding Machine Long Life Service Time

China Automatical Shape Foam EPS Block Molding Machine Long Life Service Time supplier

Large Image :  Automatical Shape Foam EPS Block Molding Machine Long Life Service Time

Product Details:

Place of Origin: China
Brand Name: D&T
Model Number: FAV1200

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD 10000-70000 /PC
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Mould Dimension: 1200*1050 Max Product Dimension: 1050*900*420
Drainge: 5"(DN125) Capacity 15kg/m3: 60~120s
Overall Dimensions(L*W*H): 4750*1750*3130mm Weight: 5000kg



Automatical Shape Foam EPS Block Molding Machine Long Life Service Time



[Main Features Of EPS Shape Molding Machine]



This machine is the basic type of shape molding and the features are as follows:

Machine structure:

All frame are welded by strong rectangle tube, which is processed by heating treatment to prevent the deformation of the mould penal;

After heating treatment, all frame are processed by sand blasting treatment to get rust prevention, so anti-corrosive primer and finishing coat are greatly improved anticorrosion performance and extended load life.



Electronic control:

Adopts PLC(Mitsubishi) and touch screen (Schneider), from close-mold, filling,heating,cooling,de-mould, the whole working procedure automatically;

All electronic components adopts famous brand(Schneider, Germany gauge), greatly increased stable;

Adopts PLC controller, to set the digital coder, easy adjustment, and more accurate.



Specifications Of Product

Item Unit FAV1200 FAV1400 FAV1750 FAV2000
Mould Dimension mm 1200*1050 1400*1250 1750*1450 2000*1650
Max Product Dimension mm 1050*900*420 1250*1100*420 1600*1300*420 1850*1500*420
Stzam Entry Inch 3"(DN80) 4"(DN100) 4"(DN100) 4"(DN100)
Consumption Kg/cycle 5~7 6~9 8~12 9~15
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7

Compressed

Air

Entry Inch 1.5"(DN40) 2"(DN50) 2"(DN50) 2.5"(DN65)
Consumption m3/cycle 1.5 1.8 2 2.5
Pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7
Cooling Water Entry Inch 2.5"(DN65) 3"(DN80) 3"(DN80) 3"(DN80)
Consumption m3/cycle 0.4 0.6 0.8 1
Pressure Mpa 0.3~0.5 0.3~0.5 0.3~0.5 0.3~0.5
Drainge   Inch 5"(DN125) 6"(DN150) 6"(DN150) 6"(DN150)
Capacity 15kg/m3 S 60~120 70~140 80~150 100~200
Connected load/power kw 9 12.5 16.5 16.5
Overall dimensions(L*W*H) mm 4750*1750*3130 4700*1920*3250 4700*2030*3450 4700*2240*3680
Weight kg 5000 5500 6000 7000
Product Uses





FAQ

1.Q:Are you manufacturer ?

A:Yes,We are manufacturer

2.Q: Which software do you use?

A: Dear sir,we use the CAD software

3.Q: Which way do you repair your machine

A:Our engineers are available to repair overseas

4.Q:Where can I find your cutting video?

A :Dear sir,you could find our videos on YOUTUBE

5.Q:What is your website?

A :Dear sir,our website is www.dtfirm.com



Welcome new and old customers come and visit us!

Please feel free to contact us for more information!
