13KW EPS Sheet and Shape Cutting Machine with Multiple Wire

Good quality EPS Cutting Machine for sales
I'm Online Chat Now

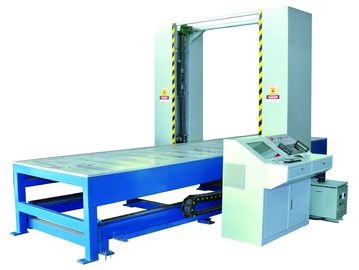

13KW EPS Sheet and Shape Cutting Machine with Multiple Wire

China 13KW EPS Sheet and Shape Cutting Machine with Multiple Wire supplier
13KW EPS Sheet and Shape Cutting Machine with Multiple Wire supplier 13KW EPS Sheet and Shape Cutting Machine with Multiple Wire supplier 13KW EPS Sheet and Shape Cutting Machine with Multiple Wire supplier 13KW EPS Sheet and Shape Cutting Machine with Multiple Wire supplier

Large Image :  13KW EPS Sheet and Shape Cutting Machine with Multiple Wire

Product Details:

Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E2012

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5000 - 40000 / set
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Machine Type: DTC-E2012 Max. Product Size: L2000*W1300*H1000mm

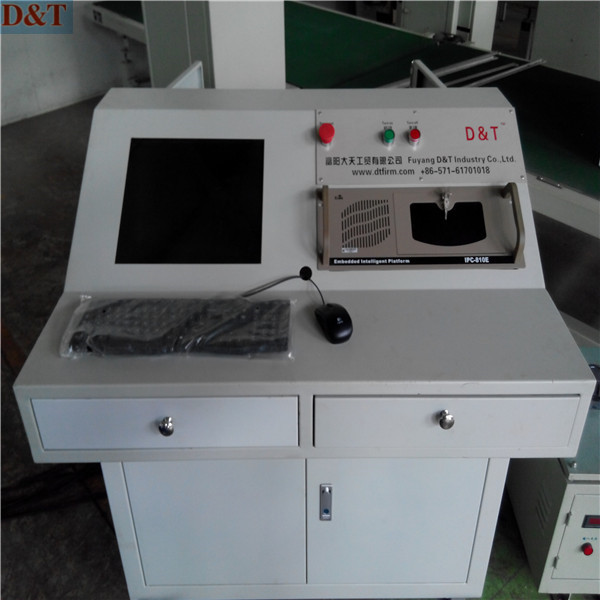

Cutting Line: 0.8~1.2mm Control System: Industrial Computer
Cutting Speed: 0~1.5m/min Power: 13.5kw, 380V, 50Hz
Weight: 1200kg Brand: D&T
Function: EPS Sheet And Shape Cutting Precision: ±1mm

13KW EPS Sheet and Shape Cutting Machine with Multiple Wire





1. Main Description:





Usage of 3D hot wire cnc foam cutter:

to cut many kinds of two-dimensional and rotational parts,

which is mainly used to cut rotational molds with more curves

such as European components, T slot board, column, pellet, etc..





2. Description Of 2D EPS cutting machine



Suit for: Polystyrene

Cutting line: Hot Wire



D&T series 2D EPS cutting machine is a special cutting machine, which is for complex

shapes of EPS products. THis kind of cutter has one or sevaral cutting lines for

different production request.



All the machines are driven by the remarkable D&T Profiler software, which speeds up

the design process and enables the operator to obtain the best yield from the foam block.





 3. Technical DaTa of  2D EPS cutting machine



TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg















































4. Company Information



Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,



polyurethane cutting machine, quilting machine and mattress spring coiling machine and foam relation assistant equipments.

Through the research of our engineers, our cutting machine had connected well



with the popularized CAD and achieved automation and high efficiency, high accuracy and



makes it easy to operate.We always put the customer on the first place and make utmost efforts



to satisfy you.We wholeheartedly look forward to developing economic, technical and trade



cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting



machine, eps cutting machine, quilting machine and mattress spring coiling machine and so on.

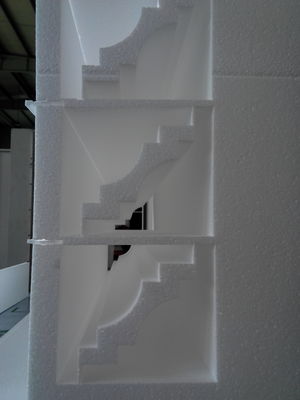

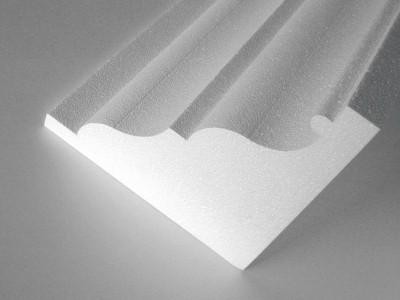

5.Sample for Cutting Product



13KW EPS Sheet and Shape Cutting Machine with Multiple Wire  13KW EPS Sheet and Shape Cutting Machine with Multiple Wire
