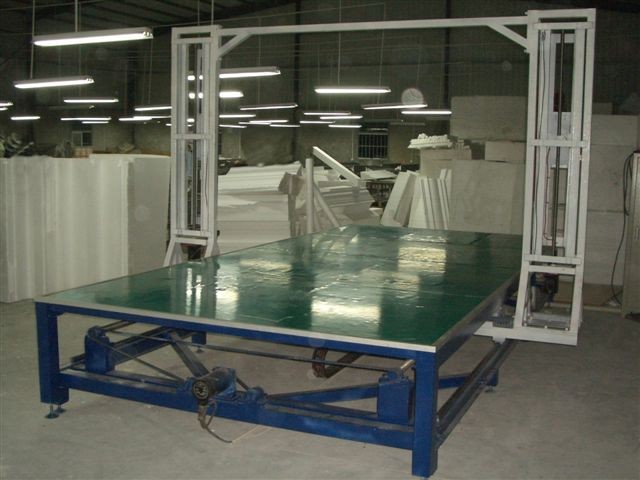

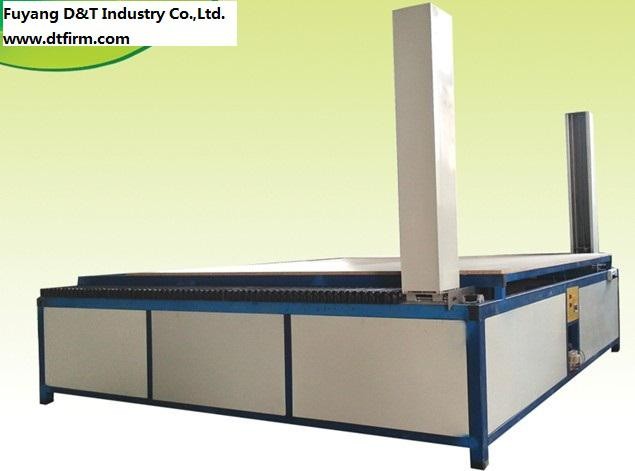

3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane

China 3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane supplier
3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane supplier 3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane supplier 3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane supplier

Large Image :  3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane

Product Details:

Place of Origin: CN
Brand Name: D&T
Certification: CE
Model Number: DTC-E1212

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD20000~40000/SET
Packaging Details: packed with pvc film into 20 container
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Item: CNC Polystyrene Foam Contour Cutter Type: DTC-E1212
Product Size: 2000*1300*1000mm Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm Power: 13.5kw,380v,50hz
Weight: 1200kgs Color: As Cliebts Requirement
Name: Eps Cutting Machine Warranty: 1 Year

3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane



CNC 2D EPS cutting machine/polystyrene foam cutting machine





1. Main Introduction:



1.  Equipped with a piece of 3KW transformer,

     adjustable power output ranges

     from 0 to 7V under electrical control.



2.  Ability to synchronously cut 20 pieces of identical figures or

     letters due to 20 heating cords mounted on the cutting frame.



3. Specialized touch screen controller,

    easy to set parameters;

   3B codes of the cutting figures/letters

   can be input to the controller from the U memory disk,

   the simple codes of figures can be entered on the touch screen.



2. Description Of 2D EPS cutting machine



Suit for: Polystyrene

Cutting line: Hot Wire



D&T series 2D EPS cutting machine is a special cutting machine,

which is for complex shapes of EPS products.

THis kind of cutter has one or sevaral cutting lines for different production request.



All the machines are driven by the remarkable D&T Profiler software,

which speeds up the design process and enables the operator

to obtain the best yield from the foam block.



It includes: All Motor will stop when the safety door be opened;

Exigency button on both machine and control box for accident;

brake system when cutting line broken.





 3. Technical Data of  2D EPS cutting machine



TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Person                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg





















































4.  Samples for Cutting Product

 3D CNC Electric Hot Wire Foam Cutter For Styrofoam / Polyurethane   contour.JPG
